Detailed Specifications

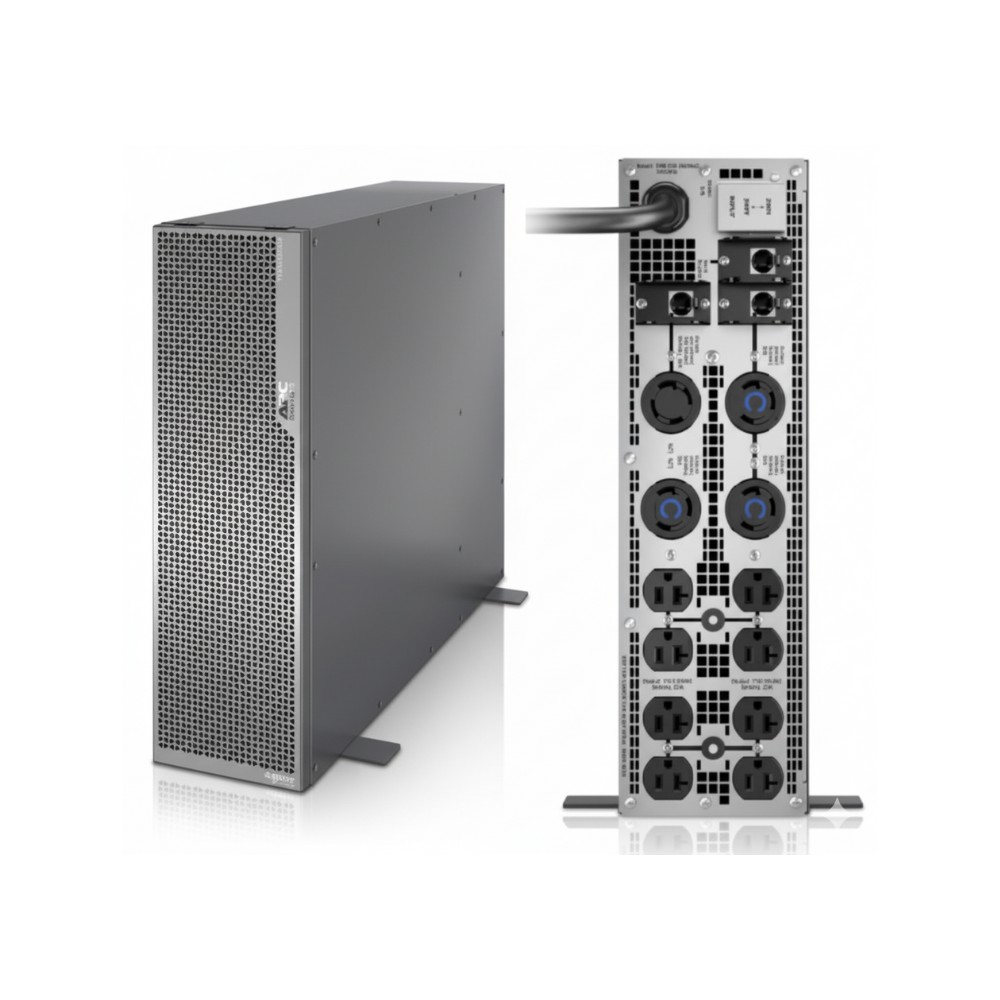

APC SRTL5KTF 5 kVA Tower Isolation Step-Down Transformer
Overview :
The APC SRTL5KTF is a 5 kVA isolation and step-down transformer designed for APC Smart-UPS On-Line systems to deliver stable, conditioned power to critical equipment. It allows conversion from 208/240 V input to 120 V output, supporting mixed-voltage environments where both high- and low-voltage loads need to be powered from a single UPS. By providing full galvanic isolation, the SRTL5KTF minimizes common-mode noise, reduces electrical interference, and enhances safety for sensitive electronic devices. This transformer integrates seamlessly with Smart-UPS units such as the SRT5KX and SRT6KX series, ensuring reliable voltage compatibility for downstream devices. Its robust metal enclosure and thermal management design make it suitable for rack or tower installations in data centers, network closets, and industrial automation setups. Whether powering servers, storage arrays, or test equipment, the APC SRTL5KTF ensures clean and reliable power distribution for mission-critical operations.
Key Features :
Converts 208/240 V input to 120 V output
Provides 5 kVA isolation and power conditioning
12 output receptacles supporting varied load types
Rack-mount or tower installation flexibility
Technical Specifications :
| Attribute | Specification |
|---|
| Brand | APC (Schneider Electric) |
| Part Number | SRTL5KTF |
| Product Type | Isolation / Step-Down Transformer |
| Rated Capacity | 5 kVA |
| Input Voltage | 208 V / 240 V |
| Output Voltage Options | 120 V / 208 V / 240 V |
| Input Connection Type | NEMA L6-30P |
| Output Receptacles | 8 × NEMA 5-20R, 2 × NEMA L6-20R, 1 × NEMA L6-30R, 1 × NEMA L14-30R |
| Total Outlets | 12 |
| Cable Length | 3.0 ft (0.9 m) |
| Switching Type | Isolation transformer (galvanic separation) |
| Maximum Input Current | 30 A |
| Frequency Range | 50/60 Hz ± 5 Hz |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -15 °C to 45 °C |
| Relative Humidity | 0-95% non-condensing |
| Dimensions (H × W × D) | 17.0 × 5.1 × 26.0 in (432 × 130 × 660 mm) |
| Net Weight | 125 lb (56.7 kg) |
| Mounting Type | Tower / Rack-mount compatible |
| Enclosure Material | Steel chassis with vented panels |
| Warranty | 2-year repair or replace coverage |
