Detailed Specifications

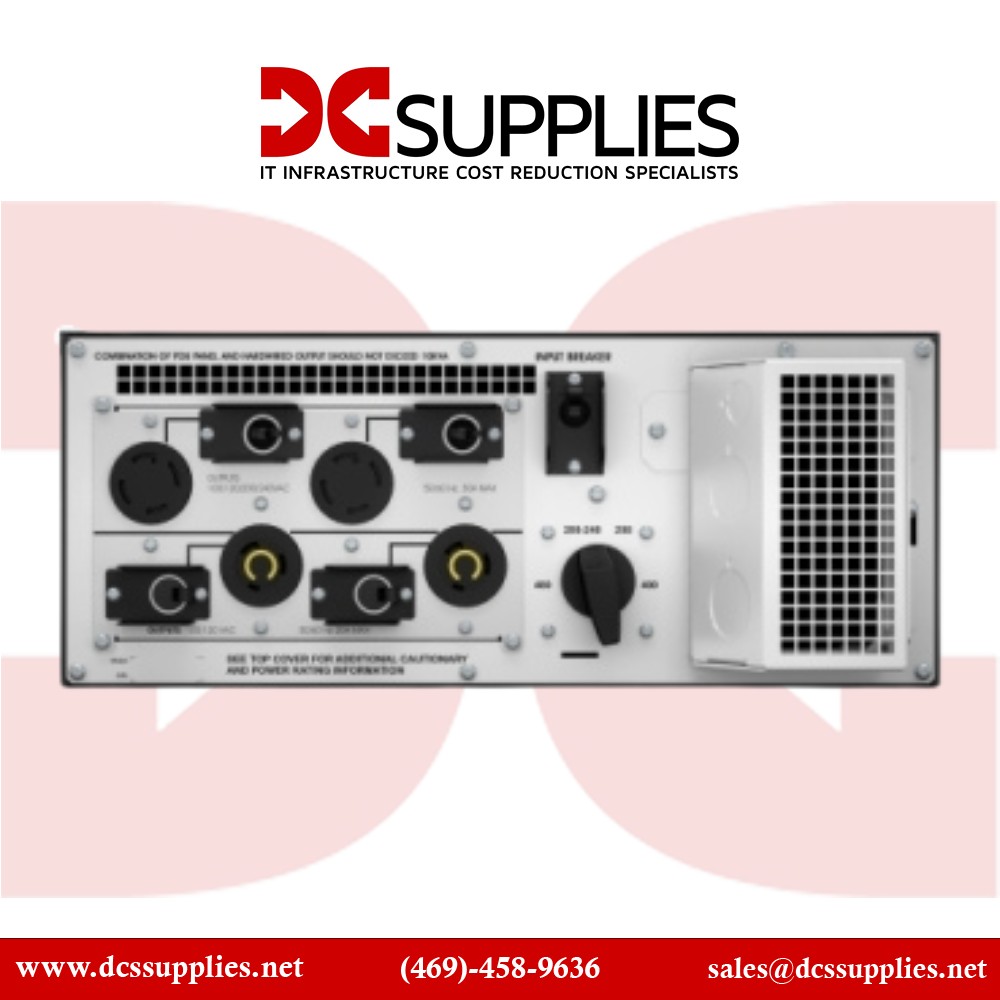

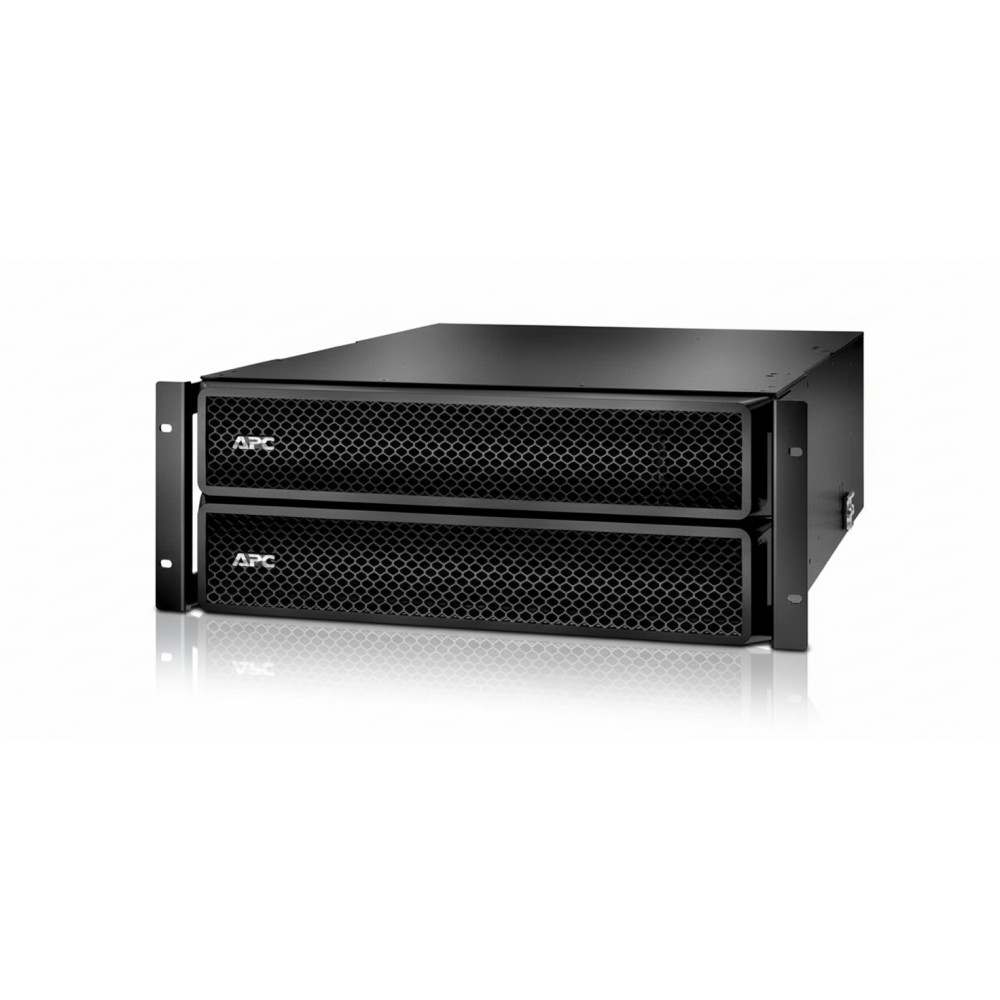

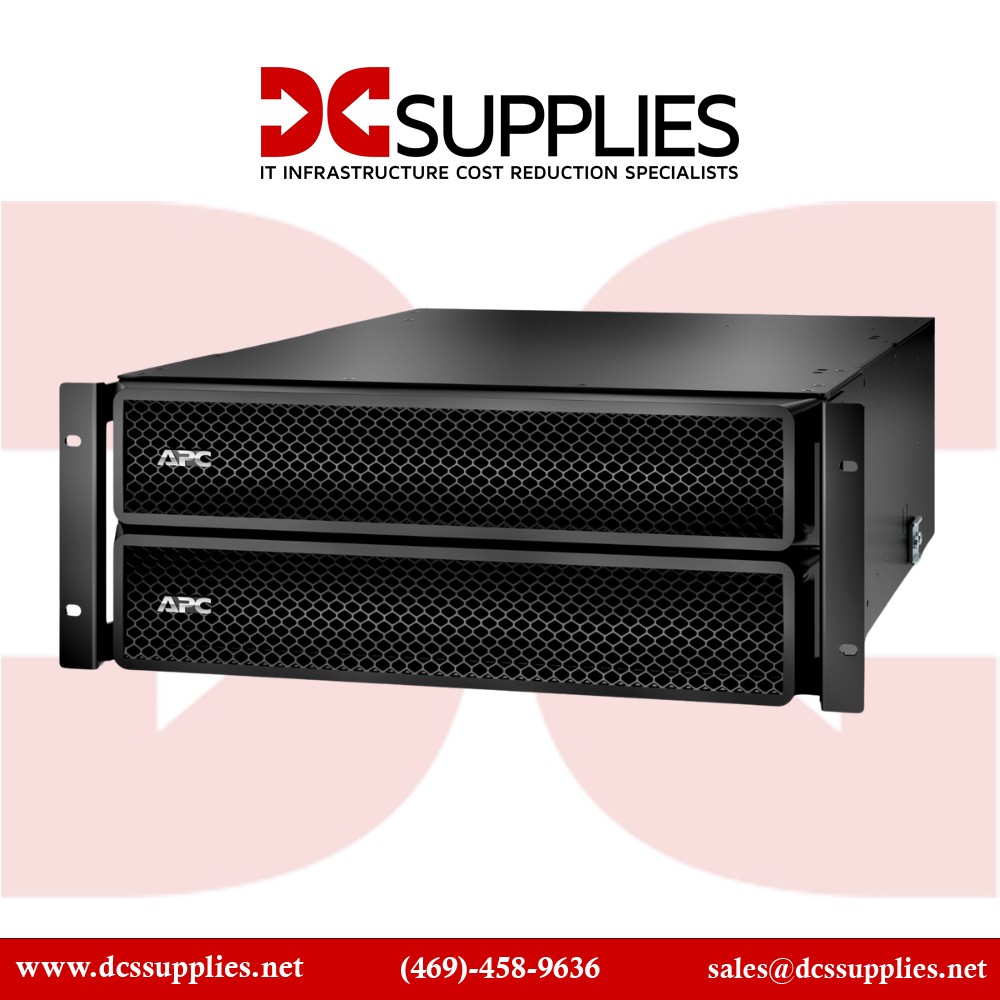

APC SRT10KRMTF Step-Down Transformer (Rack)
Overview
The APC SRT10KRMTF is a 10 kVA step-down transformer designed to pair with APC Smart-UPS systems in rack environments. It converts input voltages (typically 208 V) to output levels including 120 V, 208 V, or 240 V to match downstream equipment needs. This 4U rackmount unit is deployed upstream of UPS modules to provide correct voltage match, reduce inrush issues, and maintain optimum load compatibility. It is suited for data centers, telecom racks, and high-density IT deployments where voltage alignment is critical.
Key Features
10 kVA power rating for high capacity
Step-down conversion: 208 V to 120 / 208 / 240 V
Rackmount 4U form factor
Multiple hardwired output connectors
2-year repair or replace warranty
Technical Specifications
| Attribute | Specification |
|---|
| Brand | APC by Schneider Electric |
| Part Number | SRT10KRMTF |
| Product Type | Step-Down Transformer (rack) |
| Power Rating | 10,000 VA |
| Input Voltage | 208 V AC |
| Output Voltages | 120 V, 208 V, 240 V AC |
| Output Connectors | Hard wire 3-wire (2PH + G) ×2 and 4-wire (2PH + N + G) ×1 |
| Current / Load | 60 A rated load capacity |
| Rack Units | 4U |
| Dimensions (H × W × D) | 174 mm × 432 mm × 749 mm |
| Net Weight | 99.79 kg |
| Operating Temperature Range | 0 °C to 40 °C |
| Warranty | 2 years (repair or replace) |
| Certifications | CE, CSA, UL Listed |
