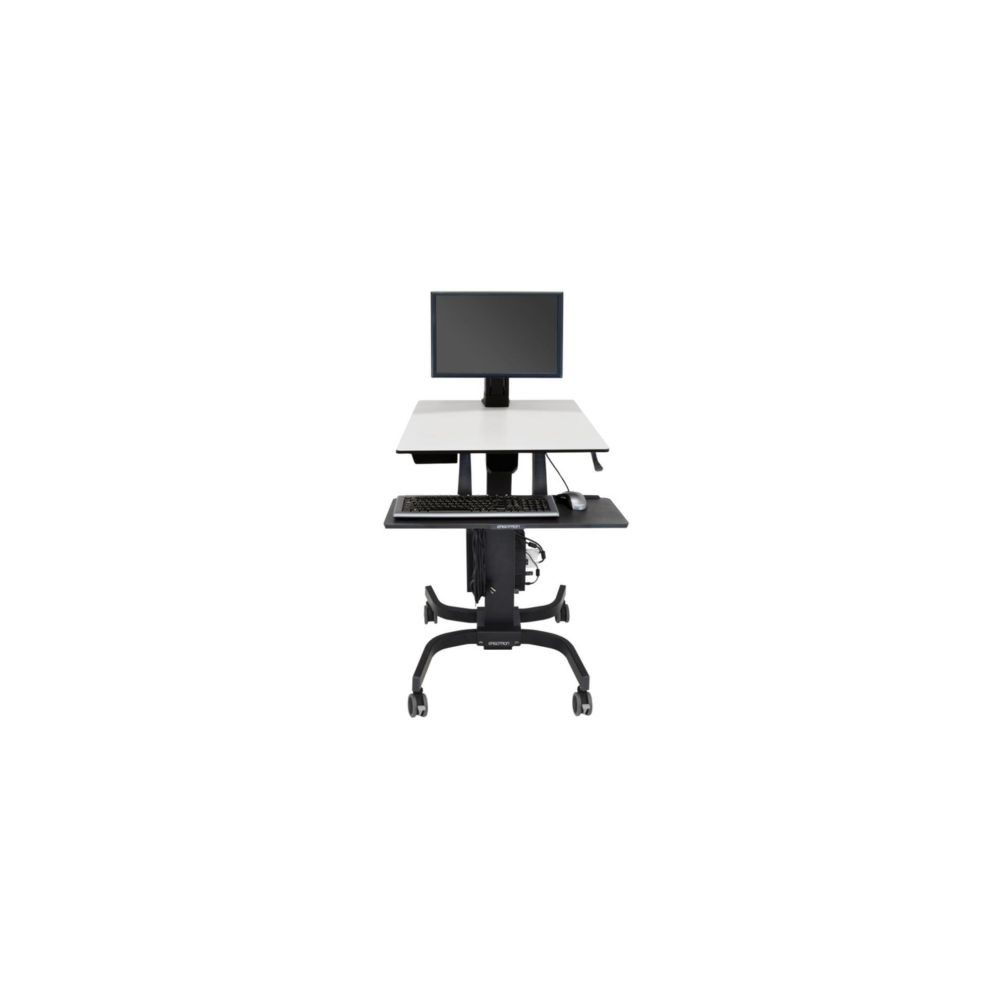

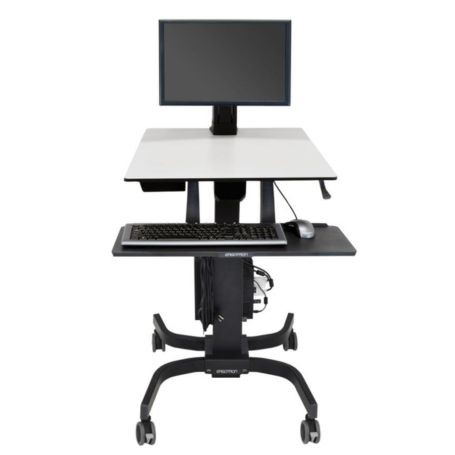

The Ergotron WorkFit-C Single LD is a mobile sit-stand workstation designed to help users alternate between sitting and standing while working. Its integrated display mount, large worksurface, stowable keyboard tray, and cable management features support a flexible and organized computing environment in offices, healthcare facilities, and collaborative workspaces.
Key Features
- Sit-stand adjustment: Raises and lowers the monitor, keyboard tray, and worksurface together, with additional independent display-height adjustment.
- Mobile workstation: Four dual casters make it easier to move the workstation between work areas; two casters lock.
- Integrated workspace: Large worksurface provides room for everyday computing accessories and work materials.
- Stowable keyboard tray: The keyboard tray slides beneath the worksurface when not in use.
- Organized setup: Includes a CPU holder and cable management features to help keep equipment and cables arranged neatly.
Technical Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 24-215-085 |
|---|
| Product Type | Mobile sit-stand workstation |
|---|
| Product Series | WorkFit-C |
|---|
| Configuration | Single LCD, low-duty (LD) display mount |
|---|
| Color | Black and grey |
|---|
| Recommended Display Size | Up to 24 inches |
|---|
| Display Pivot Capacity | 6–16 lb (2.7–7.3 kg) |
|---|
| Maximum Height-Adjustment Assembly Load | 24.9 lb (11.3 kg), including the display and supported workstation contents |
|---|
| Maximum Height Adjustment | 25 inches (63.5 cm) |
|---|
| Simultaneous Worksurface and Display Adjustment | 20 inches (51 cm) |
|---|
| Independent Display Adjustment | 5 inches (13 cm) |
|---|
| Display Tilt | 30° |
|---|
| Display Rotation | 360° |
|---|
| VESA Mounting Standard | MIS-D, 75 x 75 mm and 100 x 100 mm |
|---|
| Worksurface Dimensions | 24 x 23 inches (approximately 61 x 58 cm) |
|---|
| Keyboard Tray Dimensions | 26.3 x 9.4 inches (approximately 67 x 24 cm) |
|---|
| CPU Holder Capacity | 40 lb (18 kg) |
|---|
| Casters | Four dual casters, two locking |
|---|
| Warranty | 5 years |
|---|
What Is Included
- Mobile cart with integrated worksurface
- LCD pivot and mounting components
- Stowable keyboard tray
- CPU holder
- Cable management components
- Four dual casters, including two locking casters
Applications
The WorkFit-C Single LD is suitable for office workstations, clinical environments, shared work areas, and other settings where users need a movable computer station with adjustable working height. Confirm display weight, screen size, VESA compatibility, and total supported load before installation.
DC Supplies Product Note
DC Supplies recommends checking the monitor and computer equipment specifications against the workstation's supported capacities before purchase. The display pivot capacity and the maximum load for the complete height-adjustment assembly are separate limits; both must be observed.
Frequently Asked Questions
1. What is the Ergotron 24-215-085?
It is the Ergotron WorkFit-C Single LD mobile sit-stand workstation for a single LCD monitor.
2. What monitor size does it support?
The model is specified for displays up to 24 inches. Check the monitor's weight and VESA mounting pattern for compatibility.
3. How does the height adjustment work?
The workstation provides up to 25 inches (63.5 cm) of total display-height adjustment. The display, keyboard, and worksurface can move together, with additional independent display adjustment.
4. Can the workstation be moved between rooms?
Yes. Its four dual casters support mobility, and two locking casters help secure the cart when positioned for use.
5. Does it include a keyboard tray and CPU holder?
Yes. The configuration includes a stowable keyboard tray, CPU holder, integrated worksurface, and cable management components.
6. What should I check before ordering?
Confirm the monitor's screen size, weight, and VESA pattern, as well as the combined load of the display and other items supported by the height-adjustment assembly.
