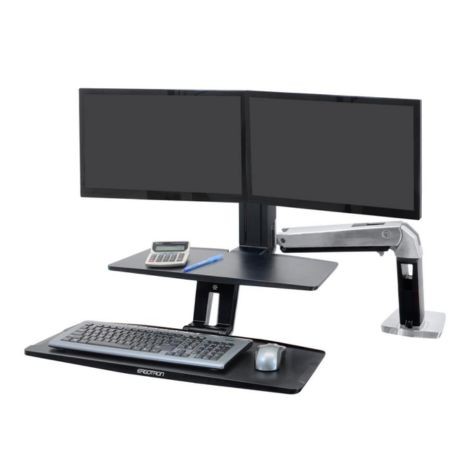

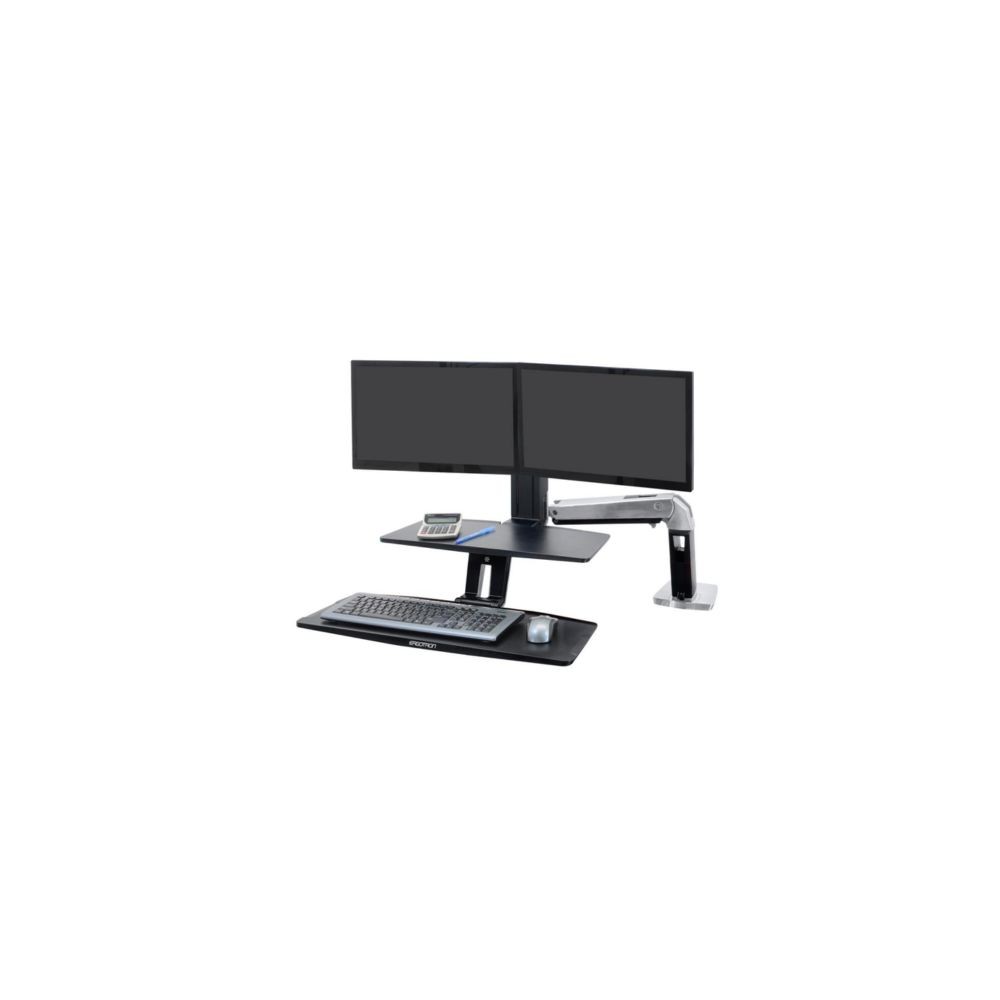

The Ergotron 24-392-026 WorkFit-A is an articulated dual-monitor workstation designed to convert a compatible existing desk into a flexible sit-stand workspace. It combines dual-monitor mounting, a suspended keyboard tray and an additional worksurface in one adjustable assembly, helping users organise their equipment while switching between sitting and standing positions.
Its polished aluminium and black finish suits professional offices, home workspaces and shared working environments. Ergotron's Constant Force lift technology enables the monitor assembly and keyboard to move together, while independent monitor adjustment provides additional flexibility for screen positioning.
Key Features
- Dual-monitor support: Holds two compatible displays, each weighing 4.5–10 lb (2–4.5 kg), with supported VESA mounting patterns.
- Sit-stand adjustment: Provides 20 inches (51 cm) of coordinated vertical movement for the monitors and keyboard, plus 5 inches (13 cm) of independent monitor height adjustment.
- Suspended keyboard tray: Allows the keyboard to sit below desktop level and fold upward when it is not needed.
- Flexible screen positioning: Offers up to 180° of arm pan and 360° of monitor rotation for adaptable viewing arrangements.
- Integrated worksurface and cable management: Adds space for lightweight work essentials and helps keep cables organised as the workstation moves.
Flexible Dual-Monitor Sit-Stand Design
The WorkFit-A is designed for users who want sit-stand flexibility without replacing their existing desk. Its articulated arm allows the monitor assembly to be repositioned to suit the task, while the keyboard moves with the workstation to help maintain a consistent relationship between the input surface and displays.
The monitor assembly provides independent positioning for two screens. The arms can pan, and each compatible display can rotate between landscape and portrait orientations. When the keyboard is not needed, the suspended tray folds upward and the arm can be moved aside to free up workspace.
Suspended Keyboard Tray
Unlike a conventional desktop keyboard platform, the suspended tray can be positioned below the desk surface. This design gives users greater flexibility when arranging their keyboard and can help accommodate different sitting positions.
The keyboard tray measures approximately 27.1 × 10.1 inches (68.8 × 25.6 cm). It can be installed centrally or offset to the left or right, depending on the user's preferred setup. The tray folds upward through approximately 90° when not in use.
Additional Worksurface
The included worksurface provides a convenient area for lightweight everyday items such as a phone, tablet or notes. It measures approximately 22 × 10 inches (56 × 25.5 cm).
Observe the load limits for the complete workstation and its individual components. The total capacity is not a substitute for the separate weight restrictions that apply to each monitor, the keyboard tray and the worksurface.
Installation and Compatibility
The WorkFit-A can be attached to a suitable desk using its desk-clamp assembly. Ergotron's documentation also identifies hardware for optional grommet mounting. The appropriate installation method depends on the desktop's construction, thickness and available mounting space.
Before installation, verify both monitors' weights and VESA mounting patterns, check the available clearance around the articulated arms, and ensure the desk can safely support the assembly. Display cables must have sufficient slack to accommodate the full range of movement between sitting and standing heights.
Technical Specifications
| Brand | Ergotron |
|---|
| MPN | 24-392-026 |
|---|
| Product Type | Dual-monitor sit-stand workstation with suspended keyboard |
|---|
| Product Family | WorkFit-A |
|---|
| Finish | Polished aluminium and black |
|---|
| Number of Monitors | 2 |
|---|
| Typical Monitor Size | Up to 24 inches per display, subject to weight and dimensional compatibility |
|---|
| Monitor Weight Range | 4.5–10 lb (2–4.5 kg) per monitor |
|---|
| Maximum Total Assembly Capacity | 25 lb (11.3 kg), subject to individual component limits |
|---|
| Coordinated Height Adjustment | 20 inches (51 cm) for monitors and keyboard |
|---|
| Independent Monitor Height Adjustment | Additional 5 inches (13 cm) |
|---|
| Maximum Combined Monitor Height Adjustment | Up to 25 inches (63.5 cm), depending on configuration |
|---|
| Arm Pan | 180° |
|---|
| Monitor Rotation | 360° |
|---|
| VESA Compatibility | 75 × 75 mm and 100 × 100 mm |
|---|
| Keyboard Tray Dimensions | Approximately 27.1 × 10.1 inches (68.8 × 25.6 cm) |
|---|
| Worksurface Dimensions | Approximately 22 × 10 inches (56 × 25.5 cm) |
|---|
| Keyboard Tray Movement | Suspended design; folds upward approximately 90° |
|---|
| Mounting Options | Desk clamp; optional grommet mounting hardware is documented |
|---|
| Cable Management | Integrated cable-routing features |
|---|
| Warranty | 5 years, subject to applicable warranty terms |
|---|
DC Supplies Product Note
The Ergotron 24-392-026 is the dual-monitor WorkFit-A configuration with a suspended keyboard tray and additional worksurface. It differs from the 24-316-026 configuration, which uses a conventional keyboard arrangement. Confirm monitor weights, VESA compatibility and desk-mounting requirements before ordering.
Frequently Asked Questions
How many monitors does the Ergotron 24-392-026 support?
It supports two compatible monitors. Each display should weigh between 4.5 and 10 lb (2–4.5 kg) and use a supported VESA mounting pattern.
What is a suspended keyboard tray?
A suspended keyboard tray is supported by the workstation rather than resting directly on the desktop. This model allows the tray to sit below desk level and fold upward when it is not being used.
Can the monitors and keyboard move together?
Yes. The workstation provides approximately 20 inches (51 cm) of coordinated vertical adjustment. The monitors also have an additional 5 inches (13 cm) of independent height adjustment.
Which VESA patterns are supported?
The monitor pivots support VESA 75 × 75 mm and 100 × 100 mm mounting patterns. Check each monitor's specifications before installation.
Does the workstation include a worksurface?
Yes. The 24-392-026 includes an additional worksurface as well as the suspended keyboard tray and dual-monitor mounting assembly.
Can it be installed on any desk?
No. The desktop must be suitable for the selected clamp or grommet mounting method and strong enough to support the complete workstation. Check the manufacturer's installation documentation before mounting.
What is the warranty period?
Ergotron's product documentation specifies a five-year warranty, subject to the applicable warranty terms.
