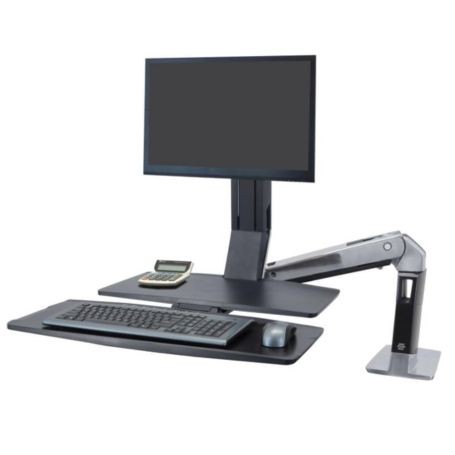

The Ergotron 24-317-026 WorkFit-A is an articulated sit-stand workstation designed to help users transition between sitting and standing while keeping their monitor and keyboard within comfortable reach. Its arm-based design provides flexible positioning, making it especially useful for corner desks, office workstations and existing work surfaces where a conventional standing desk may not be practical.
This configuration includes a single-monitor mount, an integrated keyboard tray and a separate Worksurface+ platform for items such as a tablet, smartphone or notes. The polished aluminium and black finish gives the workstation a professional appearance.
Key Features
- Sit-stand height adjustment: Raises or lowers the monitor and keyboard together through a 20-inch (51 cm) range, with an additional 5 inches (13 cm) of independent monitor height adjustment.
- Single-monitor support: Accommodates a compatible display with VESA 75 × 75 mm or 100 × 100 mm mounting patterns.
- Flexible screen positioning: Provides up to 30° of tilt, 180° of pan and 360° of monitor rotation.
- Integrated keyboard tray and extra worksurface: Includes a keyboard tray and a separate platform for lightweight everyday items.
- Articulated arm and cable management: Allows the workstation to move into position and helps route cables neatly along the arm.
Adaptable Workspace Design
The WorkFit-A uses Ergotron's Constant Force lift technology to make repositioning the workstation easier. The monitor and keyboard can be raised or lowered together as you change working positions, while independent monitor height adjustment provides additional flexibility for screen placement.
The articulated arm can extend away from the rear of the desk for use and retract closer to the desk when less space is needed. Its flexible movement can also make it easier to reposition the screen for collaboration.
Monitor, Keyboard and Worksurface
The included keyboard tray measures approximately 27 × 10.7 inches (68 × 27 cm), while the additional Worksurface+ platform measures approximately 22.63 × 9.75 inches (57.5 × 24.8 cm). The keyboard tray can be installed in a centred position or offset to the left or right.
The workstation supports a maximum combined load of 20 lb (9.1 kg) on its height-adjustment assembly, but individual component limits also apply. The monitor should weigh between 5 and 15 lb (2.3–6.8 kg), and the external load on the additional worksurface should not exceed 5 lb (2.3 kg). Check the manufacturer's load requirements before installing equipment.
Desk Mounting and Compatibility
This model uses a desk clamp designed for work surfaces approximately 0.78–2.6 inches (2–6.5 cm) thick. The desk must be sufficiently strong and stable to support the workstation and all attached equipment.
Before ordering, verify the monitor's weight and VESA mounting pattern, the desk's thickness and construction, and the available clearance around the workstation. Ergotron lists the 24-317-026 model as discontinued, so availability may depend on remaining stock.
Technical Specifications
| Brand | Ergotron |
|---|
| MPN | 24-317-026 |
|---|
| Product Type | Single-monitor sit-stand workstation with Worksurface+ |
|---|
| Product Family | WorkFit-A |
|---|
| Finish | Polished aluminium and black |
|---|
| Monitor Capacity | One compatible monitor |
|---|
| Typical Monitor Size | Up to 27 inches, subject to weight and mounting compatibility |
|---|
| Maximum Assembly Load | 20 lb (9.1 kg) |
|---|
| Monitor Weight Range | 5–15 lb (2.3–6.8 kg) |
|---|
| Combined Vertical Adjustment | 20 inches (51 cm) for monitor and keyboard |
|---|
| Independent Monitor Adjustment | Additional 5 inches (13 cm) |
|---|
| Monitor Tilt | 30° |
|---|
| Monitor Pan | 180° |
|---|
| Monitor Rotation | 360° |
|---|
| VESA Compatibility | 75 × 75 mm and 100 × 100 mm |
|---|
| Keyboard Tray Dimensions | Approximately 27 × 10.7 inches (68 × 27 cm) |
|---|
| Worksurface+ Dimensions | Approximately 22.63 × 9.75 inches (57.5 × 24.8 cm) |
|---|
| Desk Clamp Thickness | Approximately 0.78–2.6 inches (2–6.5 cm) |
|---|
| Product Weight | Approximately 15.8 kg |
|---|
| Warranty | 5 years, subject to applicable warranty terms |
|---|
| Product Status | Discontinued by manufacturer |
|---|
DC Supplies Product Note
The Ergotron 24-317-026 combines monitor support, keyboard positioning and an additional work platform in one articulated workstation. Because this model is discontinued, confirm stock and condition before purchase. Also check monitor weight, VESA compatibility and desk-clamp fit before installation.
Frequently Asked Questions
Is the Ergotron 24-317-026 a standing desk?
It is a sit-stand workstation that attaches to an existing desk. Its articulated arm lets the monitor and keyboard move between sitting and standing positions without replacing the entire desk.
Does this model include a keyboard tray?
Yes. The WorkFit-A configuration includes a keyboard tray and an additional Worksurface+ platform.
What monitors are compatible?
It supports one compatible monitor with a VESA 75 × 75 mm or 100 × 100 mm mounting pattern. Monitor weight must remain within the specified range, and the total assembly must not exceed its load limit.
How much height adjustment is available?
The monitor and keyboard move together through approximately 20 inches (51 cm) of vertical adjustment. The monitor also has an additional 5 inches (13 cm) of independent height adjustment.
Can it be installed on any desk?
No. The desk edge must fall within the specified clamp thickness range, and the desk must be strong enough to support the complete workstation and attached equipment.
Is the 24-317-026 still manufactured?
Ergotron lists this model as discontinued. Contact DC Supplies to confirm availability before placing an order.
