Detailed Specifications

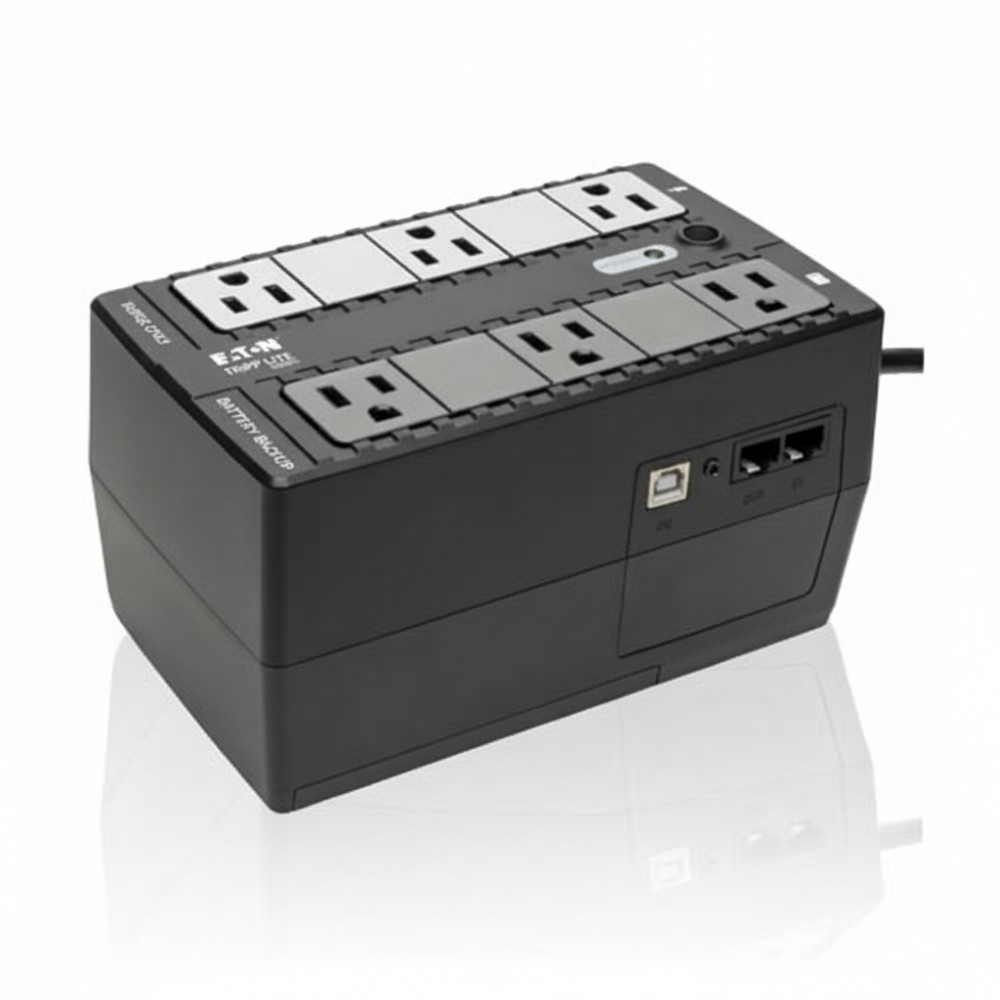

Eaton Internet350U - Standby UPS 350 VA/180 W
Overview
The Internet350U by Tripp Lite (an Eaton brand) is a compact standby uninterruptible power supply (UPS) designed to deliver battery-derived AC support during short power interruptions and voltage disturbances. IT technicians and infrastructure teams deploy this unit where basic continuity is required to save work and safely shut down equipment×not for extended runtime or high-availability systems.
This UPS provides 350 VA / 180 W capacity with a single-phase 120 V AC output and six NEMA 5-15R outlets (three battery-supported and three surge-only). Protection includes brownout/blackout coverage plus TEL/DSL line surge suppression via RJ11 jacks. The standby/offline topology switches to battery power when input voltage falls outside acceptable thresholds.
The ultra-compact design fits on desktops, shelves, or wall mounts in branch offices, small workstations, or home labs where space is limited and only short hold-up time is needed. A USB port enables integration with host systems for unattended shutdown using Tripp Lite's PowerAlert software.
Interface and status components include front LEDs for line/battery state and audible alarms for low battery or fault conditions. Typical runtime is on the order of a few minutes at full load×sufficient only to initiate orderly shutdown or maintain critical network equipment during brief outages.
Avoid using this model where high availability or longer runtime is required (e.g., servers, SAN/storage arrays), as its standby topology and modest capacity are not sized for sustained loads.
Key Features
• Standby UPS with instant battery transfer for brownouts/blackouts
• 350 VA / 180 W support for small loads
• Six NEMA 5-15R outlets (3 battery + 3 surge only)
• USB port for host shutdown integration
• RJ11 TEL/DSL line surge protection
Technical Specifications
| Specification | Value |
|---|
| Brand | Tripp Lite (Eaton) |
| Part Number | INTERNET350U |
| Product Type | Standby UPS |
| Output Capacity | 350 VA |
| Output Power | 180 W |
| Topology | Standby/Offline |
| Input Voltage | 120 V AC nominal |
| Output Voltage | 110/115/120 V AC |
| Frequency | 60 Hz |
| Input Connection | NEMA 5-15P |
| Output Receptacles | (6) NEMA 5-15R (3 UPS + 3 surge) |
| Run Time (Full Load) | ~2 min |
| Run Time (Half Load) | ~7-11 min |
| Waveform Type | Pure sine (line); PWM battery |
| Ports | USB, RJ11 TEL/DSL protection |
| Transfer Time | ~6 ms |
| Dimensions (HxWxD) | ~3″ × ~4.3″ × ~7.3″ |
| Weight | ~4 lb |
| Operating Temp | 0 °C to 40 °C |
| Humidity | 0-90 % non-condensing |
