Detailed Specifications
Eaton 3S750 - Standby UPS - 750VA/450W
Overview :

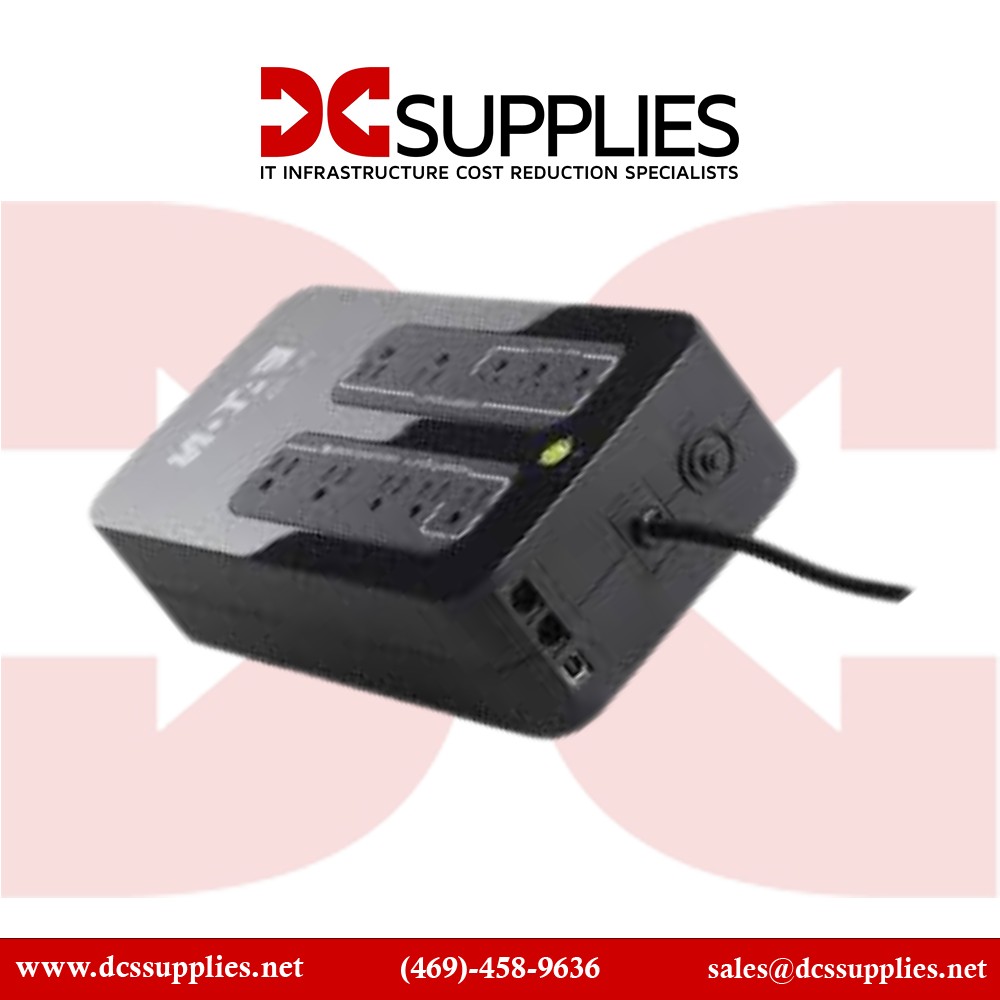

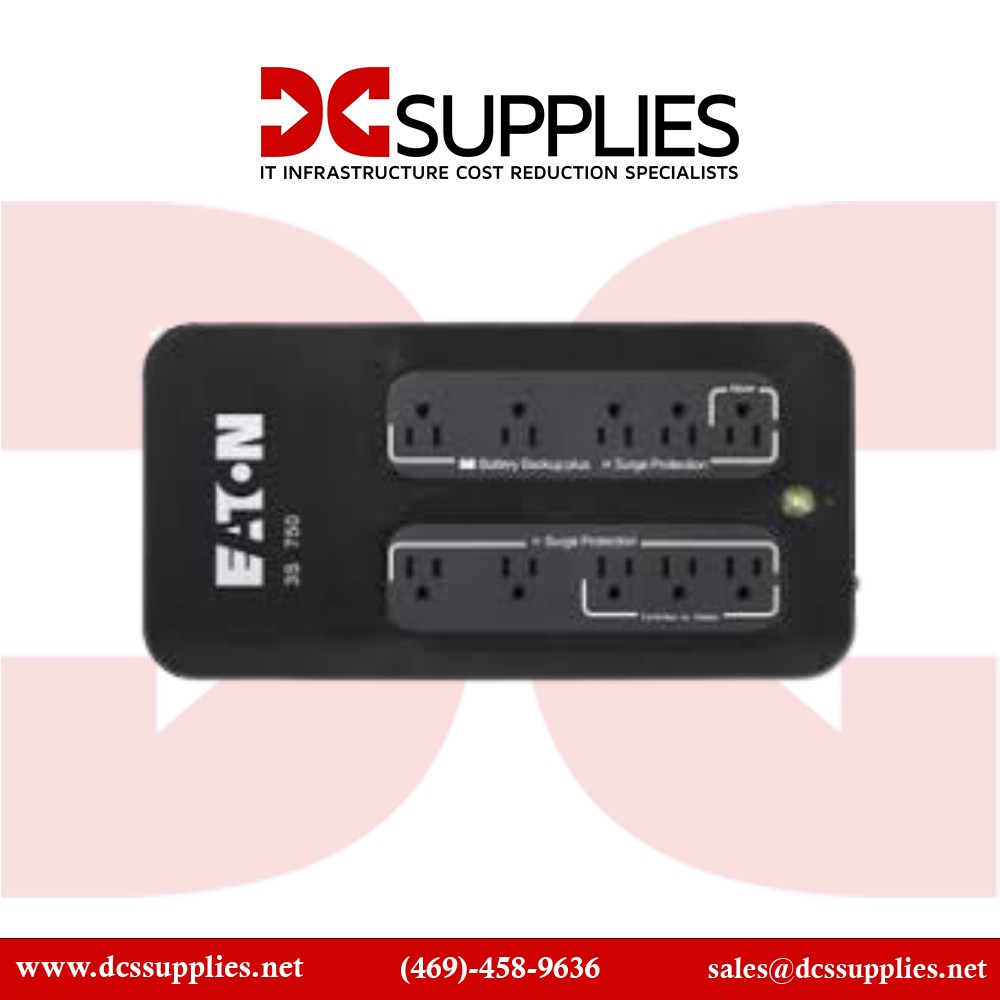

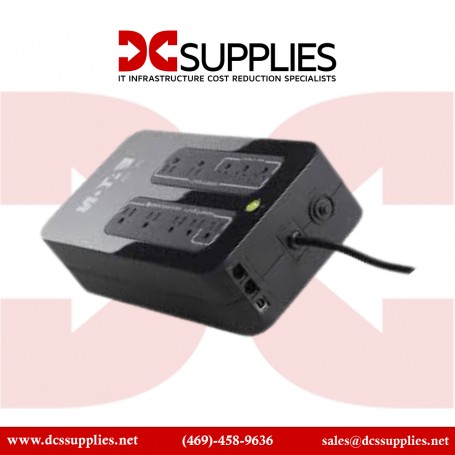

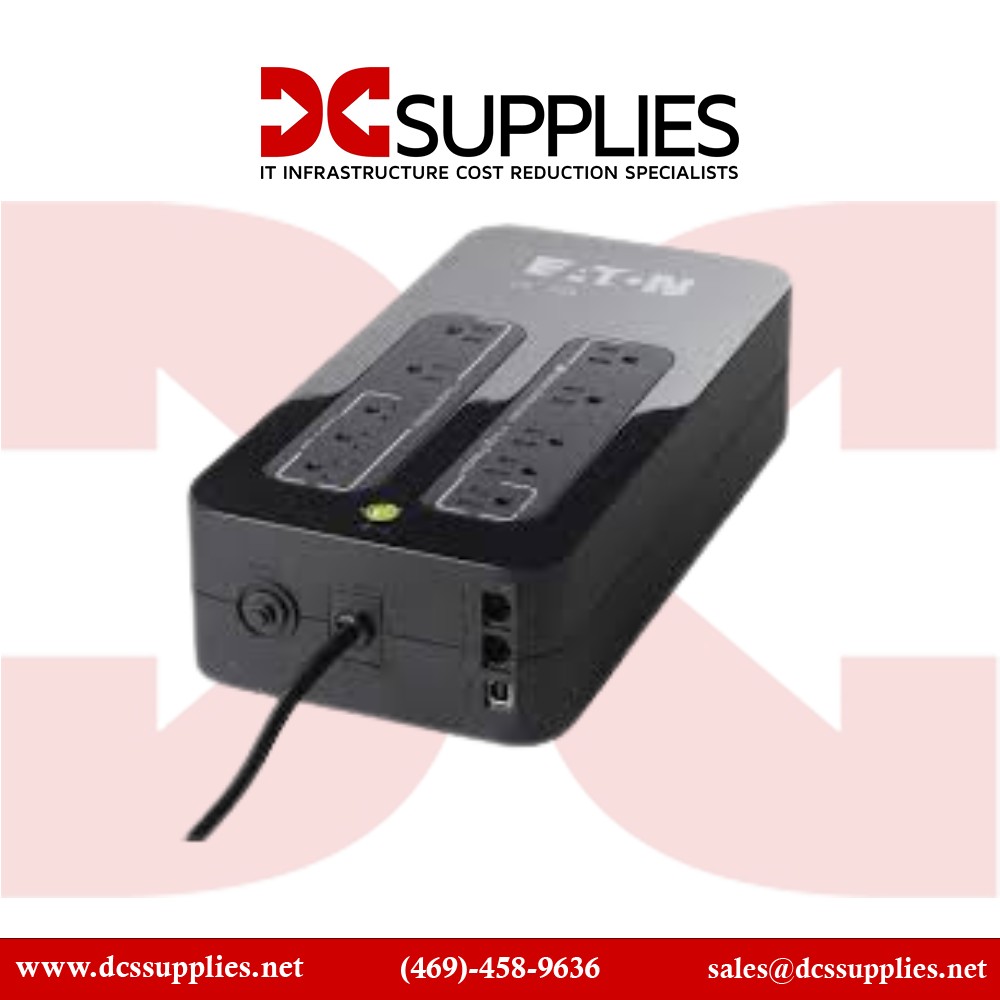

The Eaton 3S750 is a compact standby uninterruptible power supply (UPS) designed to protect sensitive electronic equipment in home and small office environments. With a power rating of 750VA and 450W, it offers reliable battery backup and surge protection for up to 10 devices, including computers, networking equipment, and home entertainment systems. The UPS features 10 NEMA 5-15R outlets, providing flexibility to connect multiple devices, with five outlets offering battery backup and surge protection, and five offering surge protection only. Its compact design allows for placement under desks or wall mounting, making it suitable for space-constrained areas. The 3S750 includes a USB communication port for integration with Eaton's Intelligent Power® Protector software, enabling monitoring and graceful shutdown of connected systems during power outages. This model is ideal for users seeking an efficient and user-friendly solution to safeguard their electronic equipment from power disturbances.
Key Features :
750VA/450W capacity with 10 outlets
USB communication port for monitoring
Compact design for space-saving installation
Energy-efficient operation with up to 97% efficiency
Three-year factory warranty
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | 3S750 |
| Product Type | Standby UPS |
| Power Rating (VA) | 750 VA |
| Rated Load Capacity | 450 W |
| Input Voltage | 120 V AC |
| Input Plug | NEMA 5-15P |
| Output Voltage | 120 V AC |
| Output Receptacles | 10 (5 battery backup, 5 surge only) |
| Battery Type | Sealed, lead-acid |
| Battery Runtime (Full Load) | 2 minutes |
| Battery Runtime (Half Load) | 11 minutes |
| Efficiency at Full Load | 97% |
| Noise Level | < 50 dB |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity Range | 20% to 93% non-condensing |
| Dimensions (H x W x D) | 3.4" x 6.7" x 13.2" |
| Weight | 9.7 lbs |
