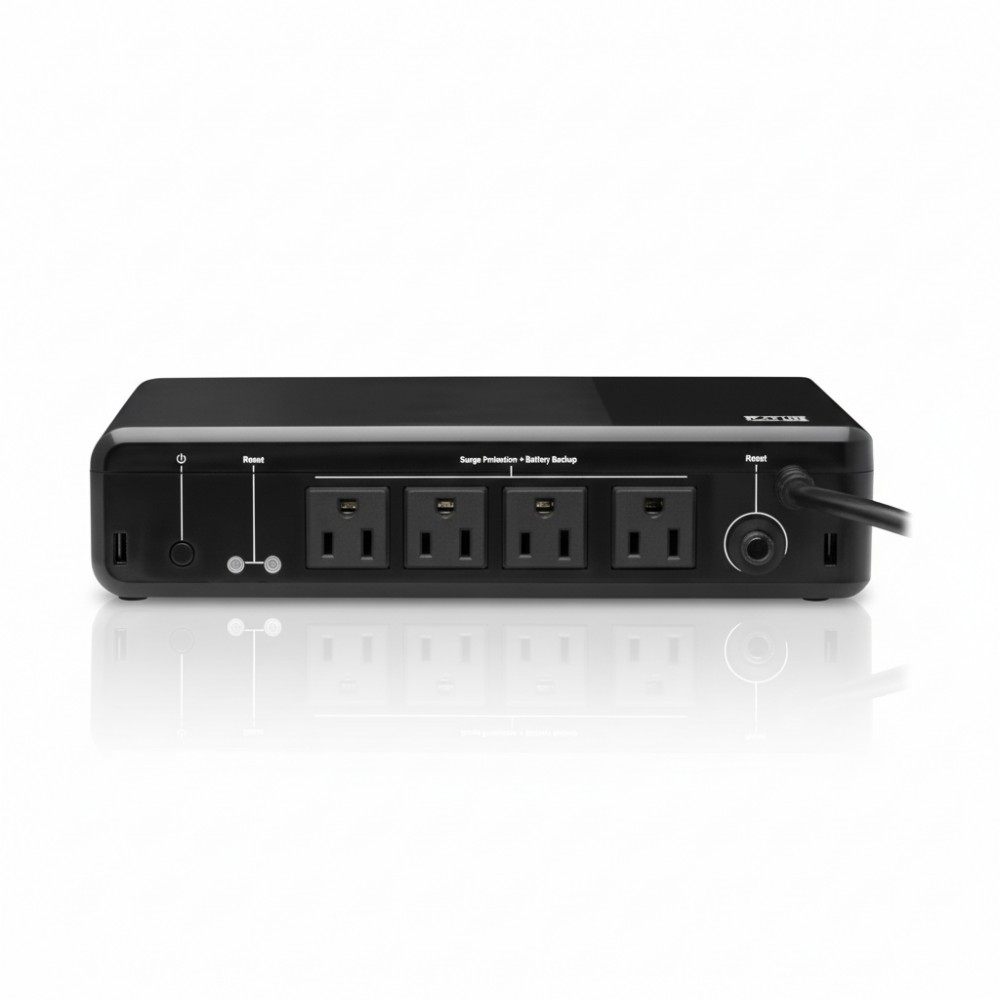

Eaton BC600R - 600 VA Standby UPS 120 V
Overview
The Eaton BC600R is a standby uninterruptible power supply (UPS) designed to provide basic battery backup and surge protection for 120 V single-phase IT and electronic equipment. It is typically deployed by network administrators, facilities engineers, and IT support technicians to safeguard desktop systems, routers, switches, point-of-sale terminals, and other essential devices during short utility interruptions and voltage anomalies. The standby topology switches to battery when voltage excursions exceed preset thresholds, offering a simple backup solution without advanced regulation.
Rated at 600 VA / 300 W, the unit supports small loads such as entry-level servers, workstations, modems, and network devices. The inverter engages on utility failure with a typical transfer time of 4-6 ms (up to ~10 ms), providing time for graceful shutdowns or bridging to alternate power sources. All four NEMA 5-15R outlets provide both battery backup and surge protection, enabling multiple devices to be protected concurrently.
Deployment is usually desktop, surface, or wall mountable, making it appropriate for branch closets, retail terminals, and home/office environments where 120 V service is standard and rack installation is not required. Its compact footprint and keyhole mounting slots allow flexible siting in space-constrained locations.
The BC600R has no communications interface×no USB, serial, or network management×and relies on front LED indicators and audible alarms for status. It uses a user-replaceable VRLA battery accessed through a bottom panel, simplifying field service and minimizing unit replacement costs.
A typical use case includes protecting a small network switch, firewall appliance, and workstation in a branch closet where brief outages are expected. The UPS maintains power long enough for users to save work and initiate orderly shutdown procedures. Due to its basic design, this model is not suitable for environments requiring voltage regulation, remote monitoring, or extended runtime; line-interactive UPS models or rack UPS systems with network management should be selected instead for larger or critical deployments.
Key Features
- 600 VA / 300 W standby UPS with basic battery backup
- Four NEMA 5-15R outlets with surge + battery support
- Compact desktop/surface/wall mount form factor
- Replaceable VRLA battery access panel
- <10 ms transfer to battery for brief outages
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | BC600R |
| Product Type | Standby UPS |
| Output Capacity | 600 VA / 300 W |
| Topology | Standby (offline) |
| Input Voltage | 120 V AC |
| Nominal Frequency | 50/60 Hz |
| Output Voltage | 120 V AC |
| Output Receptacles | 4 × NEMA 5-15R (battery + surge) |
| Input Plug | NEMA 5-15P |
| Transfer Time | ~4-6 ms typical, up to ~10 ms |
| Battery | Replaceable sealed lead-acid (12 V) |
| Runtime @ Half Load | ~5 min |
| Runtime @ Full Load | ~1-1.5 min |
| Surge Protection | 190 Joules |
| Operating Temp | 0-50 °C |
| Weight | ~4.41 lb |
| Dimensions (H×W×D) | ~2.28″ × 10.04″ × 7.09″ |
| Mounting | Desktop / surface / wall mountable |
| Compliance | ENERGY STAR, UL 1778, CSA, NOM, RoHS |
