Overview

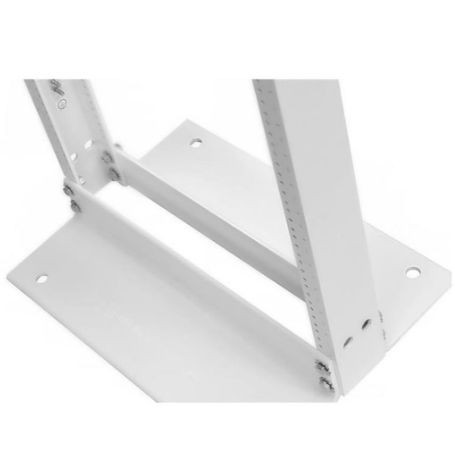

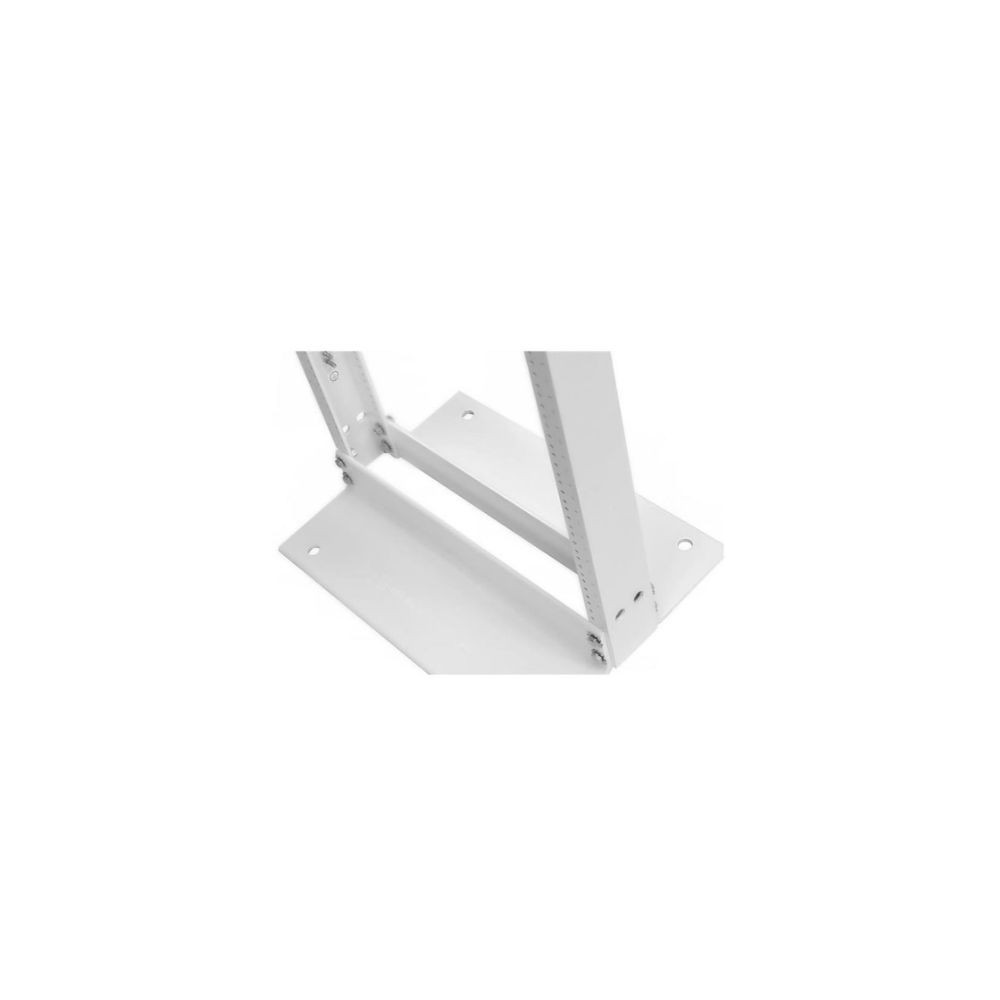

Chatsworth Products 55053-703 is a Standard Rack designed to support rack-mount telecommunications and networking equipment in equipment rooms, network closets, and data centers. Its two-post open-frame construction provides access to installed equipment while maintaining a compact mounting profile for patch panels, network switches, and compatible cable-management accessories.
The manufacturer identifies this model as a 45U rack with 19-inch EIA equipment mounting width and a 3-inch (76 mm) mounting-channel depth. The rack is constructed from lightweight aluminum and finished in black. Integrated grounding provisions support connection to an appropriate equipment grounding system, while numbered rack spaces help installers position equipment accurately.
The rack ships unassembled in a single carton and uses a bolt-together assembly design. Threaded mounting holes simplify equipment installation without requiring cage nuts for the rack's equipment-mounting positions. Floor-mount holes are provided for securing the rack using a compatible installation kit.
This open-frame rack is intended for equipment designed for two-post mounting. Before deployment, verify equipment mounting requirements, total installed weight, rack anchoring, grounding, and the need for separate vertical or horizontal cable managers.
Key Features
45U mounting capacity: Supports compatible 19-inch EIA rack-mount equipment.
Aluminum construction: Provides a lightweight structure for installation.
Integrated grounding: Includes a dedicated attachment point for grounding.
Threaded mounting holes: Simplifies installation of compatible rack equipment.
Cable-management ready: Supports compatible CPI vertical cable managers.
Technical Specifications
| Specification | Details |
|---|
| Brand | Chatsworth Products (CPI) |
| Manufacturer Part Number | 55053-703 |
| Product Name | Standard Rack 3"D (80 mm) |
| Product Category | Two-post relay rack |
| Rack Configuration | Open-frame, two-post |
| Rack Height | 45U |
| Overall Nominal Height | 84 inches (2,134 mm) |
| Equipment Mounting Width | 19 inches (483 mm) |
| Mounting Channel Depth | 3 inches (76 mm) |
| Color | Black |
| Construction Material | Aluminum |
| Equipment Mounting | Threaded mounting holes |
| Grounding | Integrated grounding attachment point |
| Compliance | UL listed; 19-inch EIA equipment mounting |
| Assembly | Unassembled, bolt-together construction |
| Cable Management | Compatible with CPI vertical cable managers |
Product Note
Chatsworth Products 55053-703 is a 45U, black, two-post relay rack for compatible 19-inch EIA networking and telecommunications equipment. The manufacturer lists integrated grounding, threaded equipment-mounting holes, and provisions for attaching compatible CPI cable managers. The rack ships unassembled. Confirm the installation footprint, total equipment load, floor anchoring method, grounding requirements, and any separately required cable-management or isolation accessories before ordering.
Frequently Asked Questions
What is Chatsworth Products 55053-703?
It is a Standard 45U two-post relay rack designed to support compatible networking and telecommunications equipment with 19-inch EIA mounting requirements.
How much rack space does the 55053-703 provide?
The rack provides 45 rack units (45U) of equipment mounting space and has a nominal height of 84 inches (2,134 mm).
What equipment can be installed on this rack?
It supports compatible two-post rack-mount equipment, including patch panels and network switches. Verify each device's mounting requirements and weight before installation.
What material and finish does the rack use?
The rack uses aluminum construction and has a black finish.
Does the rack include grounding provisions?
Yes. The manufacturer specifies integrated grounding provisions with a built-in attachment point for a grounding connection. Appropriate grounding conductors and installation practices must be selected for the site.
Does the rack include cable-management accessories?
The rack has pre-punched provisions for attaching compatible CPI vertical cable managers. Confirm whether separate cable managers, horizontal organizers, floor-anchoring kits, or isolation accessories are required for the installation.
