Detailed Specifications

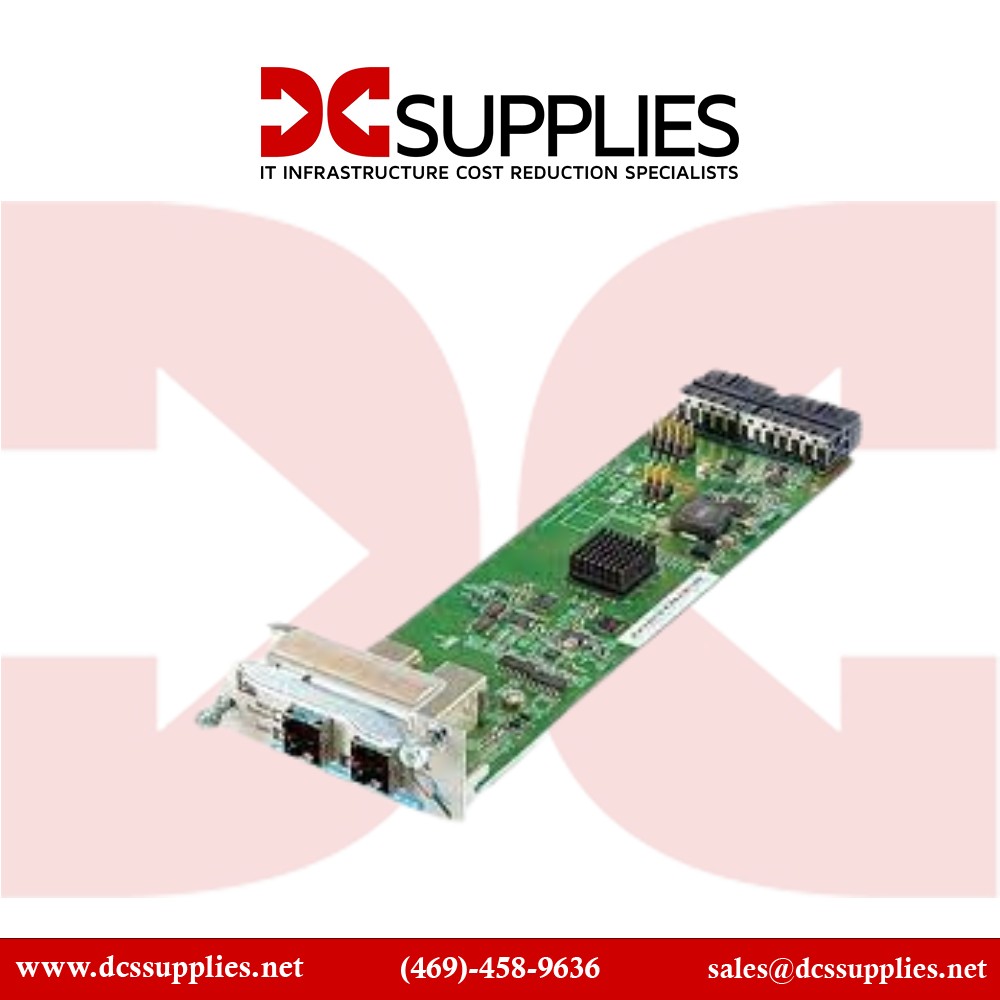

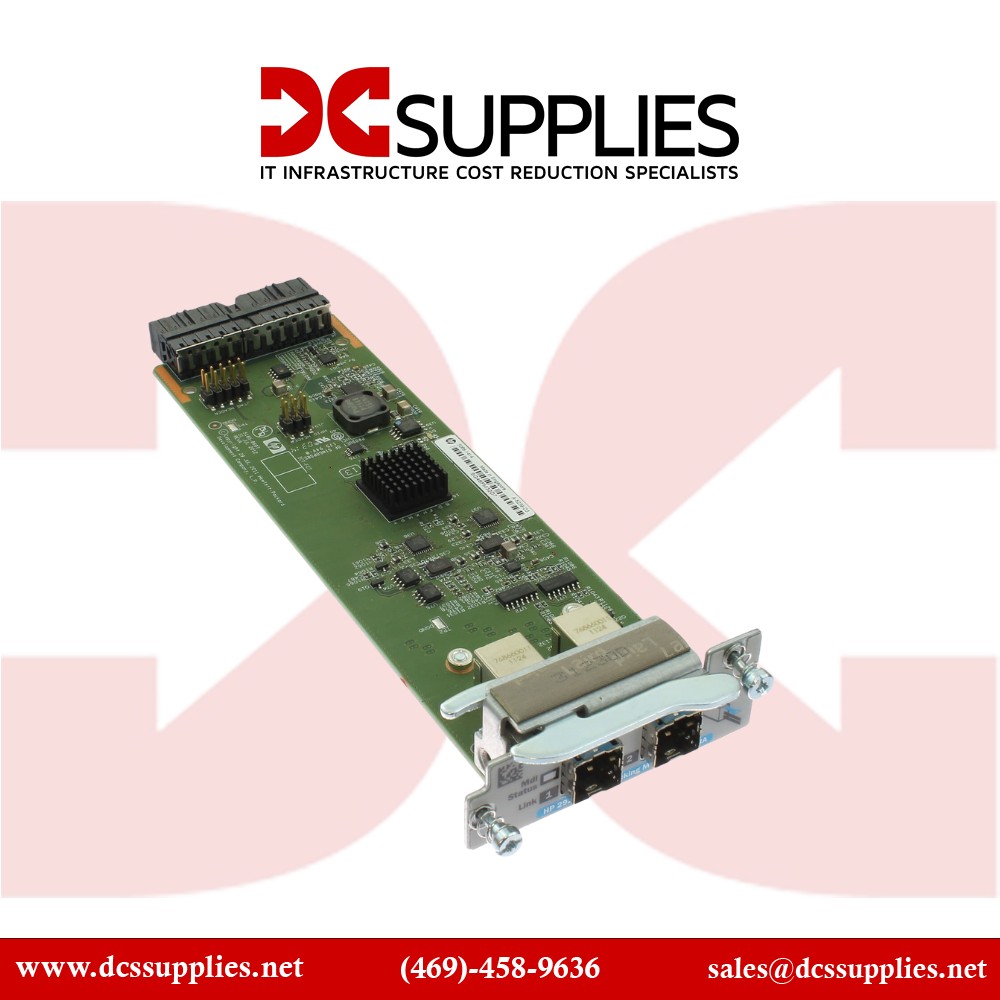

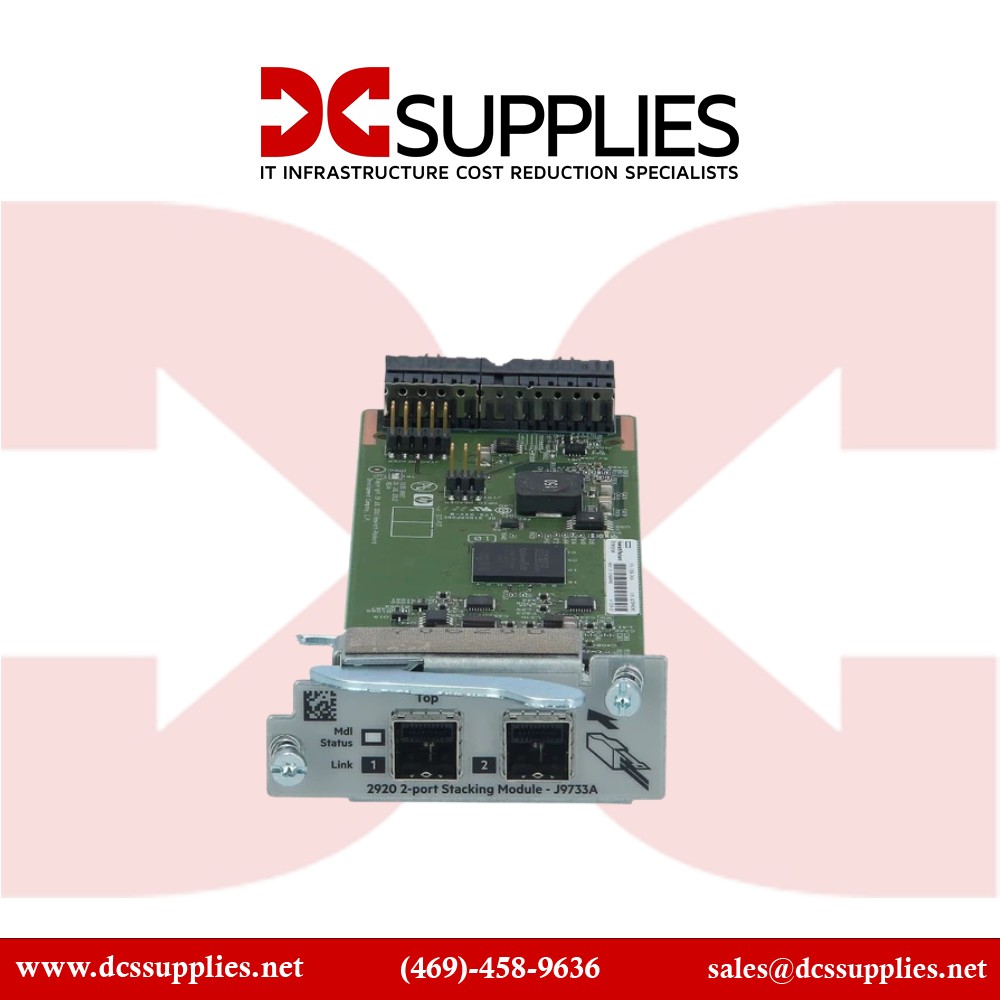

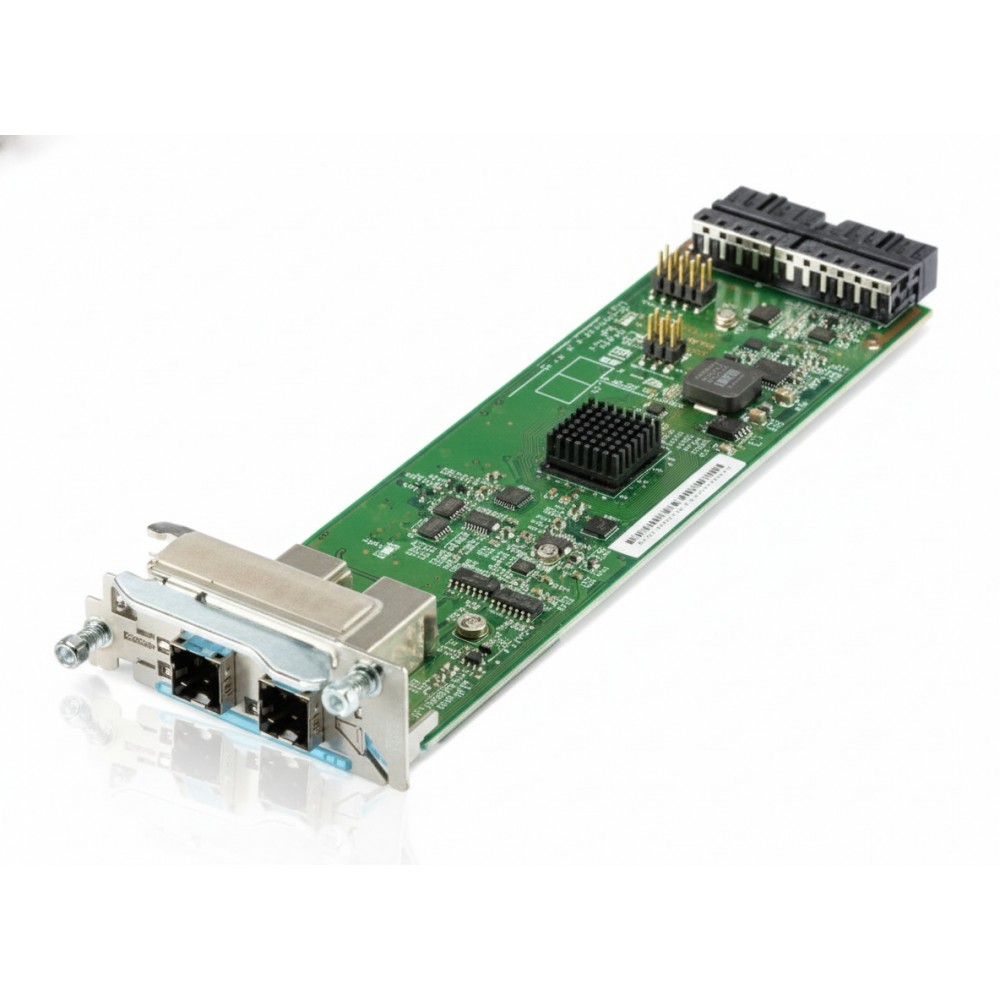

HPE J9733AS Aruba 2920 2-Port Stacking Module
Overview
The HPE J9733AS is a stacking module designed for use with the Aruba 2920 switch series, enabling two switches to be linked as a single logical unit. This improves scalability, simplifies management, and supports resilient inter-switch communication. The module offers high-speed stacking bandwidth and is hot-swappable, which helps maintain uptime during upgrades or repairs. It is suited for enterprise-edge or SMB deployments using Aruba 2920 switches.
Key Features
Two high-speed stacking ports for Aruba 2920 switches
Up to 40 Gb/s stacking bandwidth
Hot-swappable design for minimal downtime
Enables redundant, unified management of stacked switches
Compatible with Aruba 2920-24G and 2920-48G models
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE / Aruba |
| Part Number | J9733AS |
| Product Type | Stacking Module |
| Number of Ports | 2 stacking links |
| Stacking Bandwidth | Up to 40 Gb/s (full-duplex) |
| Compatibility | Aruba 2920 Series Switches |
| Operating Temperature | 0 °C to 45 °C |
| Storage Temperature | -40 °C to 70 °C |
| Form Factor | Plug-in module |
| Dimensions (H × W × D) | ~2.69 × 8.07 × 1.13 in |
| Weight | ~0.75 lb |
| Hot-Swap Support | Yes - can be inserted/removed without powering down stack |
| Logical Stack Size | Up to 4 switches supported per stack |
| Deployment | Enterprise edge, SMB, campus networks |
| Redundancy Support | Enables resilient inter-switch communication |
