Overview

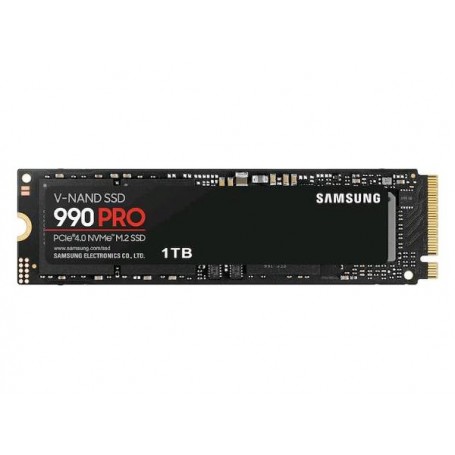

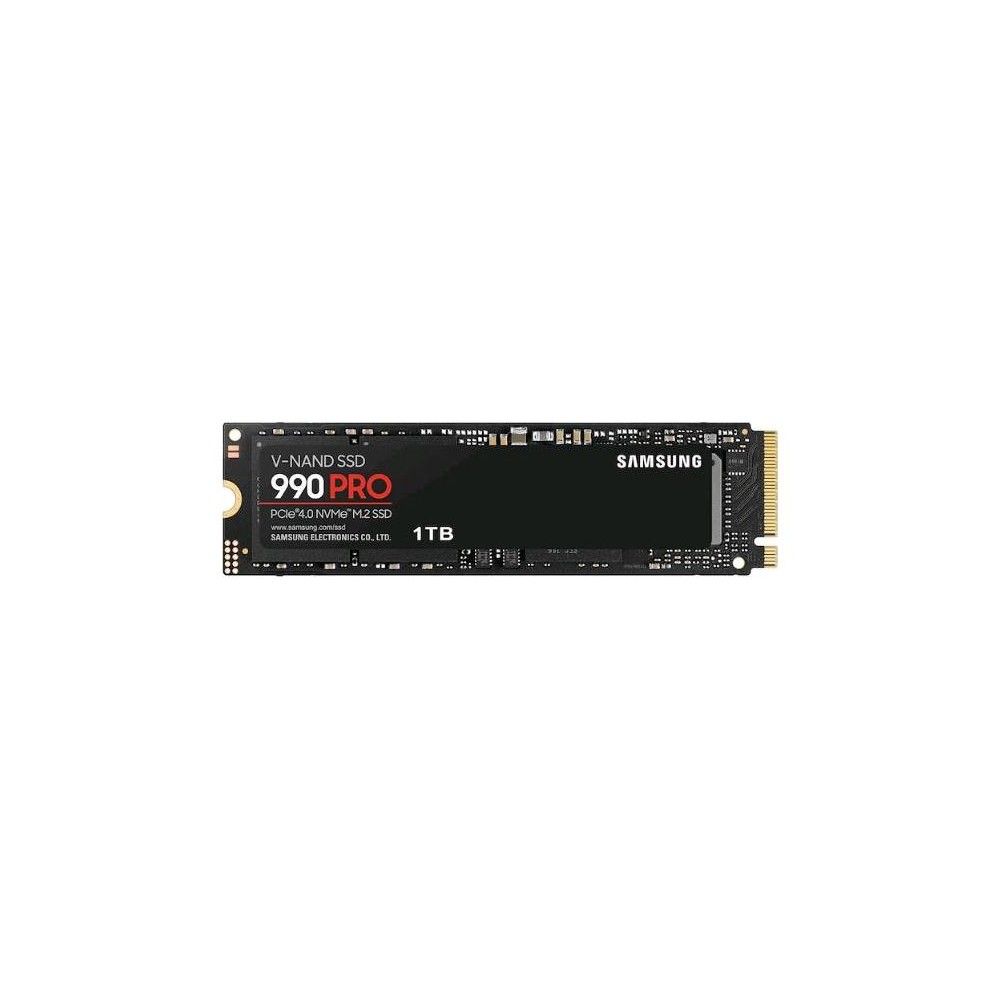

The Samsung MZ-V9P1T0B/AM is a 990 PRO 1TB internal solid-state drive using the M.2 2280 form factor and PCIe 4.0 x4 NVMe 2.0 interface. It is designed for compatible client PCs and game consoles requiring high-performance NVMe storage.
Performance
The SSD delivers sequential read speeds of up to 7,450MB/s and sequential write speeds of up to 6,900MB/s. Random performance is rated up to 1,200,000 IOPS for 4KB QD32 reads and up to 1,550,000 IOPS for 4KB QD32 writes.
Storage Technology
The 990 PRO uses Samsung V-NAND 3-bit MLC storage memory, a Samsung in-house controller, and 1GB of low-power DDR4 SDRAM cache. Intelligent thermal management is designed to help maintain operating performance under sustained workloads.
Interface and Form Factor
The drive uses a PCIe Gen 4.0 x4 interface with NVMe 2.0 and conforms to the M.2 2280 form factor. Compatibility depends on the host system providing an appropriate M.2 slot with PCIe NVMe support.
Security and Drive Management
The SSD supports AES 256-bit hardware encryption, TCG/Opal, IEEE 1667, TRIM, S.M.A.R.T., and automatic garbage collection. Samsung Magician software provides supported drive-management functions.
Power and Operating Conditions
Samsung specifies average system-level power consumption of 5.4W, with maximum burst power consumption of 7.8W. The operating temperature range is 0°C to 70°C.
Key Features
- 1TB capacity in an M.2 2280 form factor
- PCIe 4.0 x4 interface with NVMe 2.0
- Sequential read performance up to 7,450MB/s
- Sequential write performance up to 6,900MB/s
- 1GB low-power DDR4 SDRAM cache with Samsung V-NAND
Applications
The MZ-V9P1T0B/AM is suited to compatible desktop PCs, notebooks, workstations, and game consoles requiring high-speed PCIe 4.0 NVMe storage.
DC Supplies Product Note
The MZ-V9P1T0B/AM is a 1TB 990 PRO configuration. Before deployment, verify that the host system provides an M.2 2280 slot supporting PCIe 4.0 x4 NVMe storage and the required physical clearance.
Specifications
| Specification | Details |
|---|
| Brand | Samsung |
| Part Number / MPN | MZ-V9P1T0B/AM |
| Product Type | Internal NVMe SSD |
| Series | 990 PRO |
| Capacity | 1TB / 1,000GB |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen 4.0 x4, NVMe 2.0 |
| Storage Memory | Samsung V-NAND 3-bit MLC |
| Controller | Samsung in-house Controller |
| Cache Memory | 1GB Low Power DDR4 SDRAM |
| Sequential Read | Up to 7,450MB/s |
| Sequential Write | Up to 6,900MB/s |
| Random Read | Up to 1,200,000 IOPS, 4KB QD32 |
| Random Write | Up to 1,550,000 IOPS, 4KB QD32 |
| Encryption | AES 256-bit, TCG/Opal, IEEE 1667 |
| TRIM Support | Supported |
| S.M.A.R.T. Support | Supported |
| MTBF | 1.5 million hours |
| Operating Temperature | 0°C to 70°C |
| Average Power Consumption | 5.4W |
| Maximum Burst Power | 7.8W |
| Dimensions | L 3.15 × W 0.87 × H 0.09 inches |
| Weight | 0.02 lbs maximum |
| Warranty | 5-year limited warranty or 600 TBW |
FAQs
What capacity is the Samsung MZ-V9P1T0B/AM?
The MZ-V9P1T0B/AM has a 1TB storage capacity.
What interface does the MZ-V9P1T0B/AM use?
It uses PCIe Gen 4.0 x4 with NVMe 2.0 and uses the M.2 2280 form factor.
What are the maximum sequential speeds?
The drive is rated for sequential read speeds up to 7,450MB/s and sequential write speeds up to 6,900MB/s.
Is the MZ-V9P1T0B/AM a SATA SSD?
No. It is a PCIe 4.0 x4 NVMe SSD and does not use the SATA interface.
How large is the Samsung 990 PRO 1TB?
The drive measures 80 × 22 × 2.3 mm, equivalent to approximately 3.15 × 0.87 × 0.09 inches.
