Overview

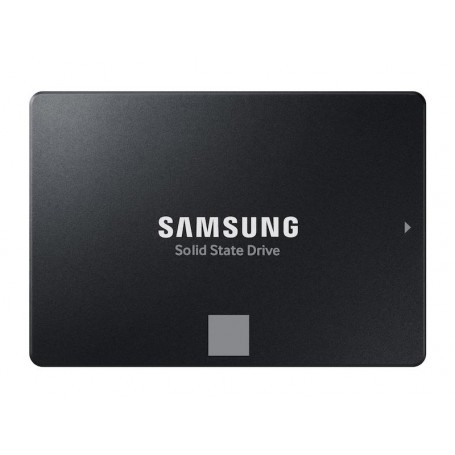

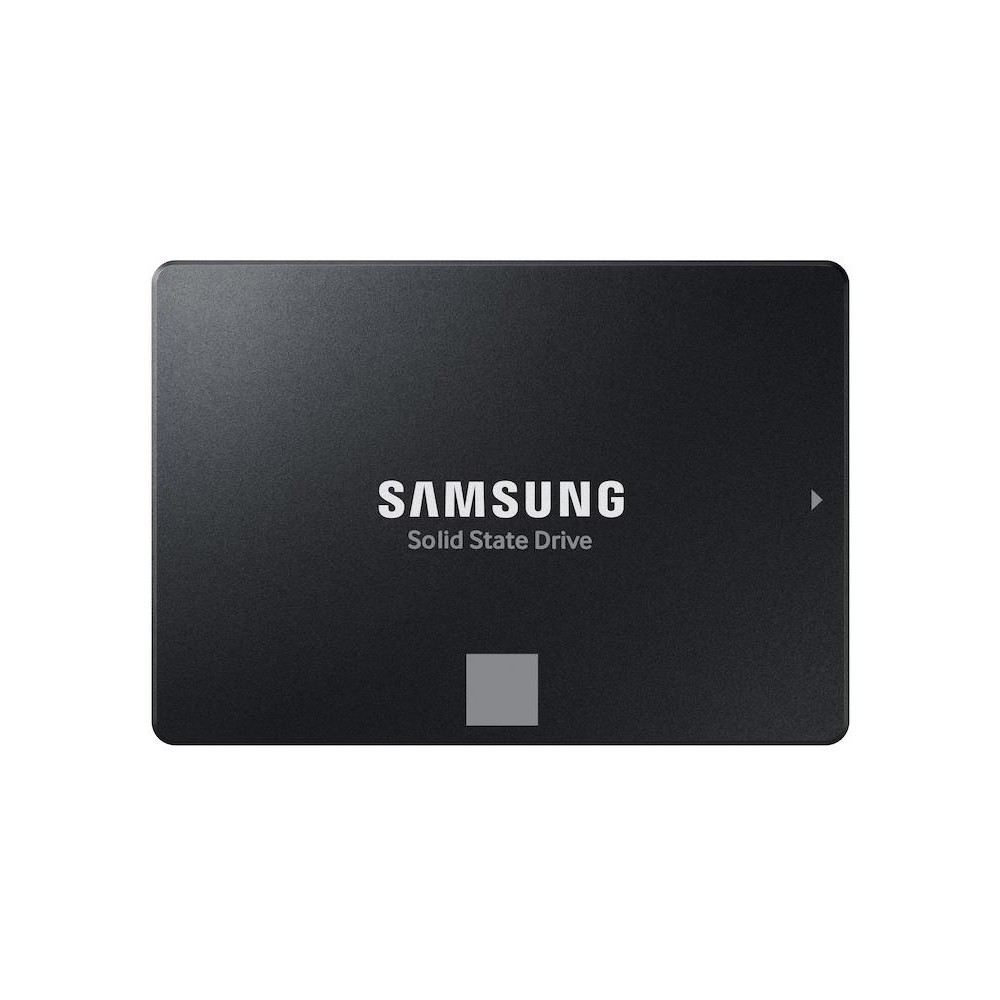

The Samsung MZ-77E1T0B/AM is a 1TB Samsung 870 EVO solid-state drive using a 2.5-inch form factor and SATA 6Gbps interface. It is designed for PC and notebook storage upgrades where compatibility with a standard 2.5-inch SATA drive bay is required.
Storage and Performance
The 870 EVO provides 1TB of storage capacity with sequential read performance of up to 560MB/s and sequential write performance of up to 530MB/s. Samsung's 870 EVO platform uses 3D V-NAND flash memory and includes DRAM cache for storage workloads.
Interface and Form Factor
The drive uses a SATA 6Gbps interface and a standard 2.5-inch drive form factor. Its 7mm height is suitable for compatible desktop and notebook systems designed for 2.5-inch SATA storage.
Storage Technology
The 870 EVO uses Samsung V-NAND technology with an integrated Samsung controller and Intelligent TurboWrite technology. The drive also supports TRIM, S.M.A.R.T., garbage collection, and AES 256-bit hardware encryption.
Compatibility
The MZ-77E1T0B/AM is intended for systems with a compatible 2.5-inch SATA storage interface. System compatibility depends on the available drive bay, SATA interface, operating system, and physical clearance.
Key Features
- 1TB storage capacity in a 2.5-inch form factor
- SATA 6Gbps interface for compatible desktop and notebook systems
- Sequential read performance up to 560MB/s
- Sequential write performance up to 530MB/s
- Samsung V-NAND with DRAM cache and Intelligent TurboWrite
Applications
The drive is suited to PC and notebook storage upgrades, operating-system installations, application storage, workstation upgrades, and replacement of compatible 2.5-inch SATA hard drives or SSDs.
DC Supplies Product Note
When specifying this SSD for a replacement or upgrade, verify that the host system provides a compatible 2.5-inch SATA drive bay and SATA interface. The MZ-77E1T0B/AM identifies the 1TB US-market 870 EVO configuration.
Specifications
| Specification | Details |
|---|
| Brand | Samsung |
| Part Number / MPN | MZ-77E1T0B/AM |
| Product Type | Internal Solid State Drive |
| Series | 870 EVO |
| Capacity | 1TB |
| Form Factor | 2.5-inch |
| Drive Height | 7 mm |
| Interface | SATA 6Gbps |
| Memory Technology | Samsung V-NAND |
| DRAM Cache | 1GB DDR4 |
| Sequential Read | Up to 560MB/s |
| Sequential Write | Up to 530MB/s |
| Controller | Samsung MKX |
| Encryption | AES 256-bit hardware encryption |
| Security | TCG Opal 2.0, IEEE 1667, MS eDrive |
| Features | TRIM, S.M.A.R.T., Garbage Collection, Intelligent TurboWrite |
| Dimensions | L 3.94 × W 2.75 × H 0.27 inches |
| Weight | 0.19 lbs |
| UPC | 887276431970 |
FAQs
What capacity is the Samsung MZ-77E1T0B/AM?
The MZ-77E1T0B/AM has a 1TB storage capacity.
What interface does the 870 EVO use?
It uses a SATA 6Gbps interface and a standard 2.5-inch form factor.
What are the sequential read and write speeds?
The drive is rated for sequential read speeds of up to 560MB/s and sequential write speeds of up to 530MB/s.
Is the MZ-77E1T0B/AM an NVMe SSD?
No. It is a SATA SSD rather than an NVMe drive and uses the 2.5-inch SATA form factor.
What is the physical size of the drive?
The drive measures approximately 3.94 × 2.75 × 0.27 inches and weighs approximately 0.19 lbs.
