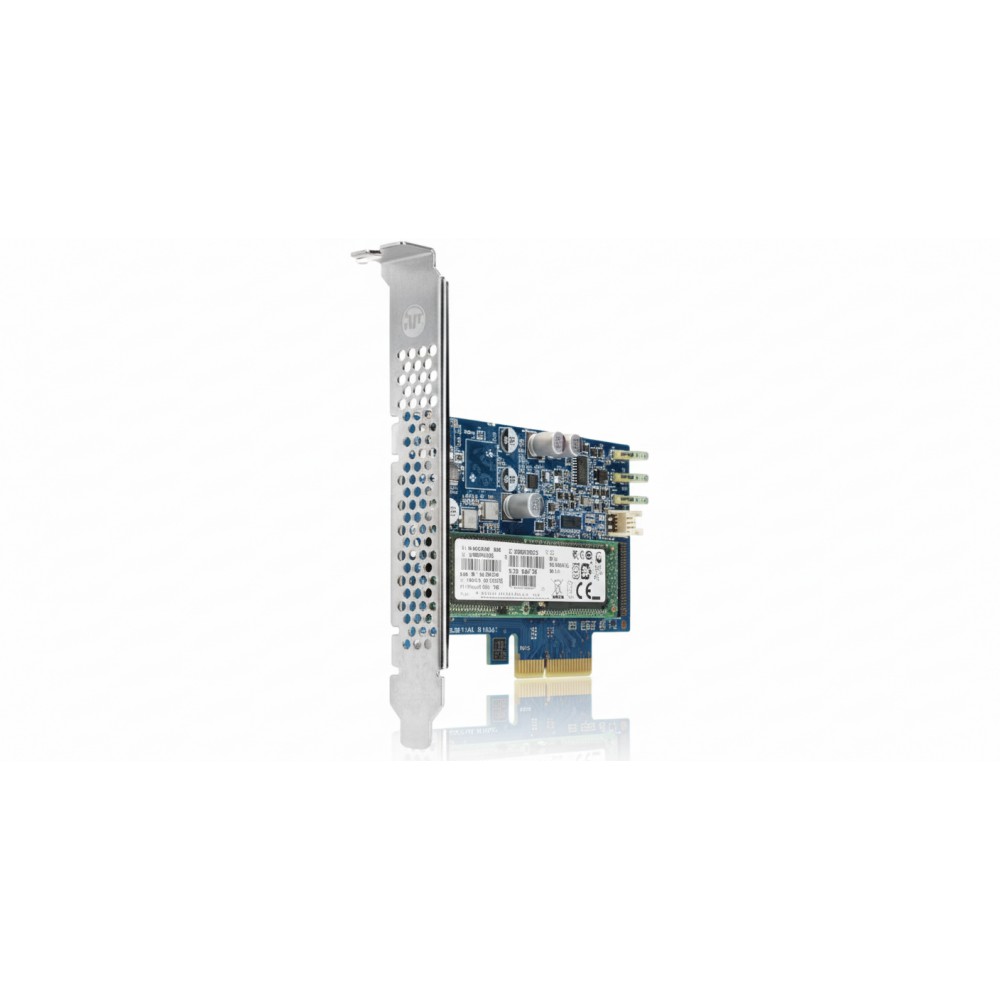

HP M1F74AT Solid State Drive 512 GB SSD View larger

HP M1F74AT Solid State Drive 512 GB SSD

New

512 GB NVMe PCIe SSD in M.2 format
×




  • New

Detailed Specifications

HP M1F74AT – Z Turbo Drive G2 512 GB PCIe SSD

Overview :

The HP M1F74AT is a 512 GB PCIe Gen3 x4 NVMe solid‑state drive designed for workstation use, particularly by IT infrastructure engineers seeking high‑throughput storage in systems like the HP Z series. It delivers up to 2,150 MB/s sequential read and up to 1,550 MB/s sequential write performance, enabling faster boot times, large‑file handling and improved responsiveness. This SSD installs via M.2 or add‑in slot (half‑height, half‑length) and fits in architectures such as the HP Z440, Z640 and Z840. It is typically deployed in data‑intensive workflows — CAD/CAE, media editing, virtualization — where SATA SSDs become a bottleneck. Engineers will appreciate that it integrates into HP’s workstation platform with official support and is compatible with Boot and Data drive roles under supported operating systems.

Key Features :

  • 512 GB storage capacity in M.2 form factor

  • Interface: PCI Express 3.0 ×4 (NVMe)

  • Up to 2,150 MB/s sequential read bandwidth

  • Up to 1,550 MB/s sequential write bandwidth

  • Endurance of 292 TB total bytes written (TBW)

Specifications :

SpecificationValue
Brand HP
Part Number M1F74AT
Product Type Z Turbo Drive G2 PCIe SSD
Capacity 512 GB
Interface PCIe 3.0 x4 (NVMe)
NAND Flash Type Multi‑Level Cell (MLC)
Form Factor Half‑height, half‑length M.2
Sequential Read Bandwidth Up to 2,150 MB/s
Sequential Write Bandwidth Up to 1,550 MB/s
Random Read IOPS (4KB) Up to 300,000
Random Write IOPS (4KB) Up to 100,000
Endurance (TBW) 292 TB
Weight 113 g (≈0.249 lbs)
Operating Temperature 0 °C to 70 °C
Compatibility HP Z440/Z640/Z840 Workstations
