Detailed Specifications

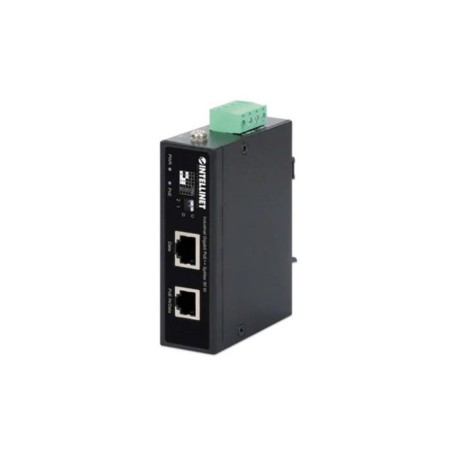

INTELLINET 509626 Industrial Gigabit PoE Splitter
Overview :
The INTELLINET 509626 is an industrial-grade IEEE 802.3bt (4PPoE) PoE++ splitter that separates a high-power PoE Ethernet connection into independent DC power and Gigabit Ethernet data for non-PoE network devices. It is designed for industrial automation, IP surveillance, edge computing, and enterprise networking environments.
The splitter accepts up to 90 W of PoE input and provides selectable DC output voltages of 12 V, 16 V, 24 V, or 48 V through a 4-pin terminal block. It supports 10/100/1000 Mbps Ethernet, allowing a single network cable to deliver both power and connectivity before separating them for compatible devices.
Its IP50-rated metal enclosure supports DIN-rail and wall mounting for installation inside industrial control cabinets, factory networks, transportation systems, and remote edge deployments. Protection features include surge, ESD, overload, and short-circuit protection for reliable operation in demanding environments.
The 509626 is compatible with IEEE 802.3bt, IEEE 802.3at, and IEEE 802.3af PoE switches and injectors. It is intended for powering non-PoE devices requiring one of the supported DC output voltages and should not be used where different voltage or higher output power is required.
Key Features :
- Splits PoE++ into Gigabit data and DC power
- Selectable 12, 16, 24 or 48 V DC outputs
- Supports IEEE 802.3bt, at and af standards
- IP50 metal housing for industrial deployment
- DIN-rail and wall mounting installation options
Specifications :
| Specification | Value |
|---|
| Brand | INTELLINET |
| Part Number | 509626 |
| Product Type | Industrial Gigabit PoE++ Splitter |
| PoE Standard | IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af |
| Maximum PoE Input | Up to 90 W |
| DC Output | 12 V, 16 V, 24 V (2.3 A), 48 V (1.25 A) |
| Ethernet Speed | 10/100/1000 Mbps |
| Network Ports | 1 × RJ45 PoE Input, 1 × RJ45 Data Output |
| Power Output Connector | 4-pin terminal block |
| Housing | IP50-rated metal enclosure |
| Mounting | DIN-rail and wall mount |
| Maximum Ethernet Distance | 100 m (328 ft.) |
| Operating Temperature | -40°C to 75°C |
| Compatibility | IEEE 802.3bt/at/af PoE switches and injectors |
| Compliance | FCC, CE, RoHS, REACH, UKCA, TAA |
