Detailed Specifications

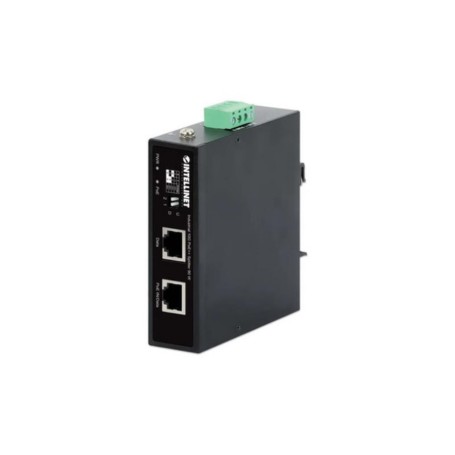

INTELLINET 509633 Industrial 10G PoE Splitter
Overview :
The INTELLINET 509633 is an industrial-grade IEEE 802.3bt (4PPoE) PoE++ splitter that separates a high-power PoE Ethernet connection into independent DC power and 10 Gigabit Ethernet data for non-PoE network devices. It is designed for industrial automation, edge computing, surveillance, and enterprise network deployments.
The splitter accepts up to 90 W of PoE input and provides selectable 12 V, 16 V, 24 V DC (up to 2.3 A) or 48 V DC (up to 1.25 A) output through a 4-pin terminal block. It supports Ethernet speeds from 100 Mbps through 10GBASE-T, enabling deployment with high-bandwidth devices while eliminating the need for a separate local power source.
Its IP50-rated metal enclosure supports DIN-rail and wall mounting, making it suitable for factory floors, transportation systems, industrial cabinets, and edge network installations. The device supports standard Ethernet cable distances up to 100 m when used with compatible PoE equipment.
The 509633 is compatible with IEEE 802.3bt, 802.3at, and 802.3af PoE sources and multi-gigabit Ethernet infrastructure. It is intended for powering non-PoE equipment requiring supported DC output voltages. It should not be used where the connected device requires a different DC voltage or exceeds the available output power.
Key Features :
- Converts PoE++ into separate DC power and data
- Supports 100M, 1G, 2.5G, 5G and 10G Ethernet
- Selectable 12/16/24/48 V DC output options
- IP50 metal housing for industrial deployment
- DIN-rail and wall-mount installation support
Specifications :
| Specification | Value |
|---|
| Brand | INTELLINET |
| Part Number | 509633 |
| Product Type | Industrial 10G PoE++ Splitter |
| PoE Standard | IEEE 802.3bt (4PPoE), 802.3at, 802.3af |
| Maximum PoE Input | Up to 90 W |
| DC Output | 12 V, 16 V, 24 V (2.3 A), 48 V (1.25 A) |
| Ethernet Speed | 100 Mbps, 1G, 2.5G, 5G, 10G |
| Network Interface | 1 × RJ45 PoE Input, 1 × RJ45 Data Output |
| Power Connector | 4-pin terminal block |
| Housing | IP50-rated metal enclosure |
| Mounting | DIN-rail or wall mount |
| Maximum Ethernet Distance | 100 m (328 ft.) |
| Compatibility | IEEE 802.3bt/at/af PoE switches and injectors |
| Operating Environment | Industrial applications |
| Compliance | TAA Compliant |
