Detailed Specifications

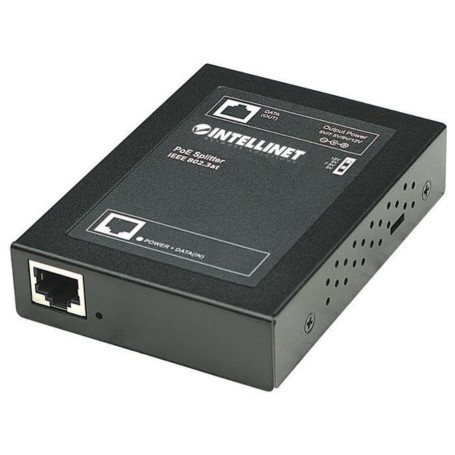

Intellinet 560443 Gigabit PoE Splitter
Overview :
The Intellinet 560443 is a Gigabit Power over Ethernet (PoE+) splitter that enables non-PoE Ethernet devices to receive both network connectivity and DC power through a single Ethernet cable. It is designed for devices such as IP cameras, wireless access points, embedded systems, and other Ethernet-enabled equipment that require separate DC power input.
The splitter supports IEEE 802.3af and IEEE 802.3at standards and provides selectable DC output voltages of 5 V, 7.5 V, 9 V, or 12 V. It features one Gigabit PoE input port, one Gigabit Ethernet output port, and one DC power output, allowing deployment of network devices up to 100 m (328 ft.) from the PoE power source.
Its compact metal enclosure is suitable for enterprise networks, surveillance installations, branch offices, retail environments, and edge deployments where local AC power is unavailable. Installation requires no software or configuration.
The splitter is intended for non-PoE devices with compatible DC voltage requirements. It should not be used with devices requiring direct PoE input or output voltages other than the supported selectable settings.
Key Features :
- Converts PoE+ to selectable DC power output
- Gigabit Ethernet input and output connectivity
- Supports IEEE 802.3af and 802.3at standards
- Selectable 5V, 7.5V, 9V or 12V output
- Compact metal housing for reliable deployment
Specifications :
| Specification | Details |
|---|
| Brand | Intellinet |
| Part Number | 560443 |
| Product Type | Gigabit PoE+ Splitter |
| PoE Standards | IEEE 802.3af, IEEE 802.3at |
| Input Port | 1 × RJ45 10/100/1000 Mbps PoE |
| Output Port | 1 × RJ45 10/100/1000 Mbps |
| Power Output | 1 × DC output |
| Output Voltage | Selectable 5 V, 7.5 V, 9 V, 12 V DC |
| Maximum Output | 5V/4A, 7.5V/2.7A, 9V/2.3A, 12V/1.7A |
| Maximum Power Consumption | 25.4 W |
| Housing | Metal |
| Operating Temperature | 0°C to 60°C |
| Certifications | FCC Class A, CE, UKCA, NDAA |
