Detailed Specifications

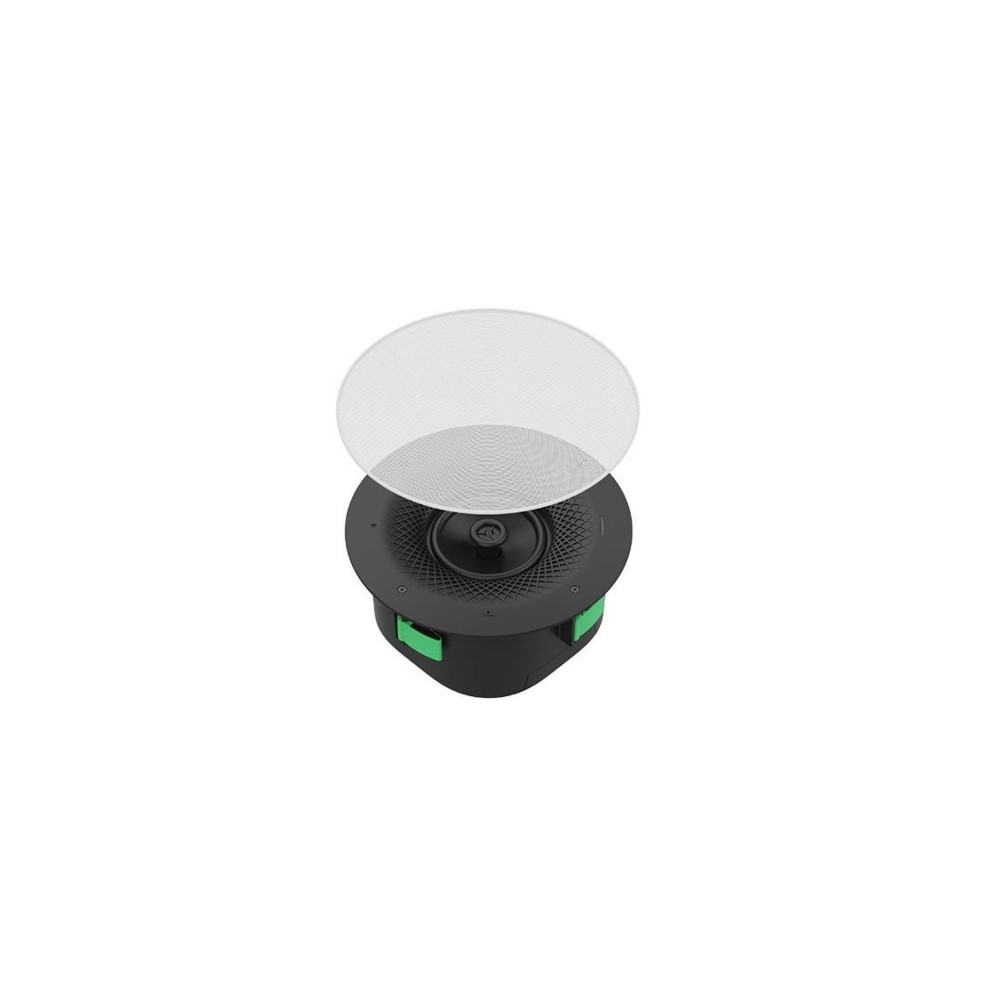

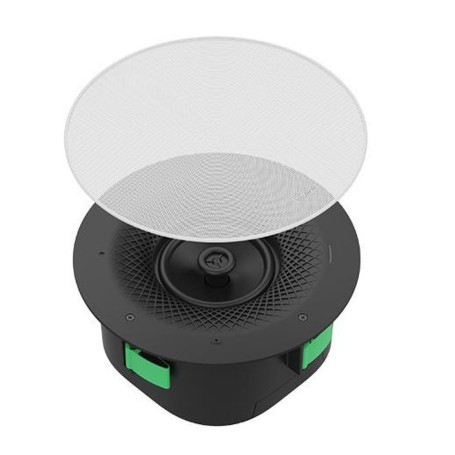

Yealink 1303094 SkySound CS10 Ceiling Speaker Video Conferencing
Overview :
The Yealink 1303094 (SkySound CS10) is a low-profile 2-way coaxial network speaker engineered for professional video conferencing and modern collaboration spaces.It resolves poor meeting room audio distribution and intelligibility bottlenecks by delivering high-performance acoustic output through an integrated active amplifier and digital signal processing.
Engineered with Power over Ethernet (PoE) functionality and a minimalist low-profile architectural footprint, the unit streamlines network cabling and enables rapid digital signal processing deployment.It features a robust coaxial driver design combining a 5.7-inch woofer and 1.1-inch tweeter for balanced voice and media reinforcement.
Form factor optimized for flush drop-ceiling installation, suspended tiles, and plenum-rated air handling spaces within corporate boardrooms and conference facilities.
Compatible natively with Yealink MVC systems and standard SIP/IP audio network infrastructures. Do not use in unconditioned outdoor environments or spaces lacking structured Ethernet PoE network switches.
Key Features :
Low-profile 2-way active coaxial network speaker design
Powered by Power over Ethernet (PoE) for simplified cabling
Features 5.7-inch woofer and 1.1-inch tweeter driver configuration
Plenum rated UL 2043 for safe air-handling ceiling installation
Minimalist magnetic white mesh cover for discrete architectural integration
Specifications :
| Specification | Value |
| Brand | Yealink |
| Part Number | 1303094 |
| Product Type | Ceiling Network Speaker |
| Model Designation | SkySound CS10 |
| Continuous Power | 20W |
| Speaker Type | Active 2-Way Coaxial (Woofer + Tweeter) |
| Frequency Response | 100 Hz to 20,000 Hz |
| Nominal Impedance | 8 Ohms |
| Interfaces / Ports | 1 x RJ-45 Network Port with PoE |
| Form Factor | Flush Mount Ceiling Speaker |
| Plenum Rating | UL 2043 |
| Compatibility | Yealink Meeting Solutions, IP Conference Systems |
| Operating Temperature | 0°C to 40°C |
