SRT2200RMXLAUS View larger

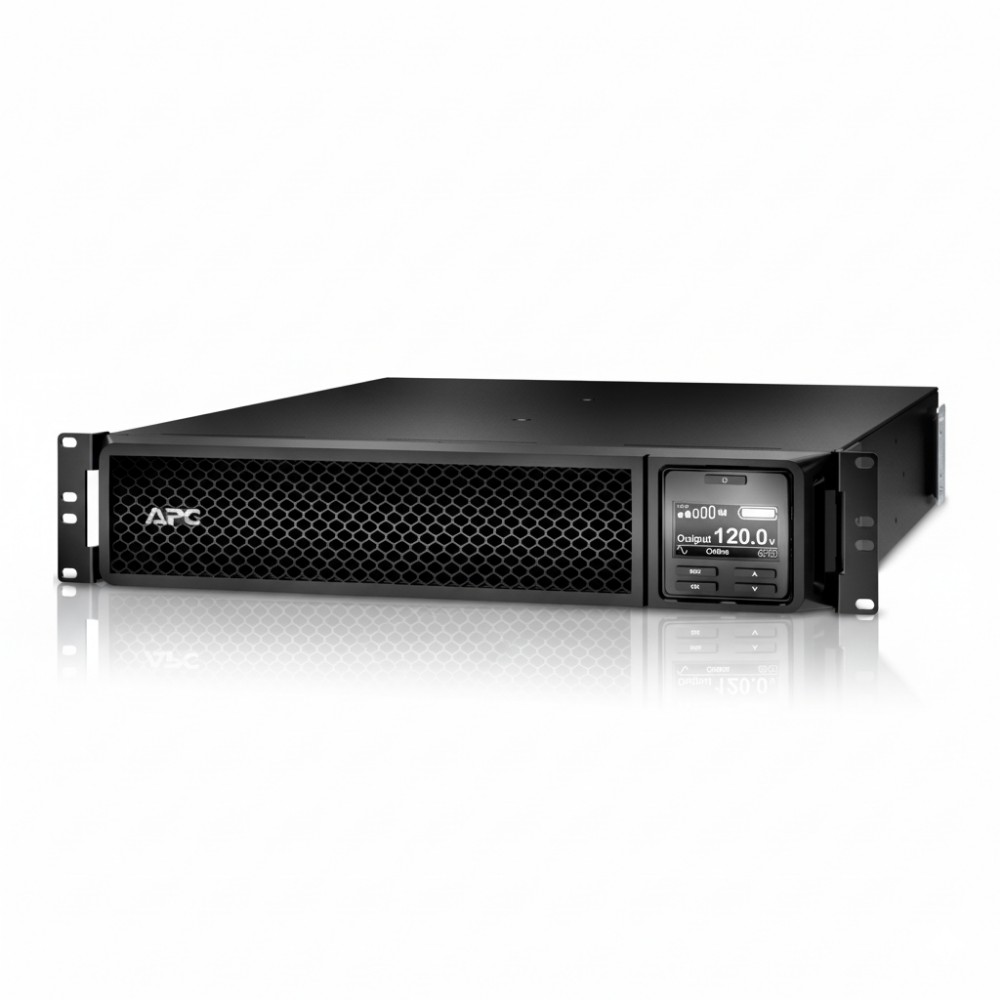

APC SRT2200RMXLAUS Smart-UPS On-Line, 2200VA, Rackmount 2U, 120V

New

In Stock

Reliable, extended runtime UPS for protecting critical electronics in a rackmount setup
×




$2,562.95

  • New

Detailed Specifications

APC

SRT2200RMXLAUS

Smart-UPS On-Line – 2200VA / 1980W, 120V, 2U Rackmount, True Double Conversion UPS

The APC SRT2200RMXLAUS is a robust Smart-UPS On-Line system designed to deliver premium, double-conversion online power protection for servers, storage, voice/data networks, and high-performance IT environments. This 2200VA/1980W UPS ensures clean, consistent power delivery in a compact 2U rackmount form factor, making it ideal for space-constrained server rooms and enterprise edge deployments requiring high reliability.

Features

Built on a true online double-conversion topology, the SRT2200RMXLAUS isolates connected equipment from virtually all power disturbances, including blackouts, surges, sags, and harmonic distortion. Unlike line-interactive UPS systems, this unit continuously regenerates clean AC power with zero transfer time, making it suitable for mission-critical applications.

Advanced Options

This model offers eight battery and surge-protected outlets (6× NEMA 5-20R and 2× NEMA L5-20R) and supports extended runtime with external battery packs (e.g., SRT72BP). The high-resolution LCD provides real-time diagnostics and system status, while the SmartSlot interface allows for remote monitoring and management via network management cards. Hot-swappable, user-replaceable batteries simplify maintenance and minimize downtime.

Product Key Features

  • 2200VA / 1980W true double-conversion online power

  • 2U rackmount form factor with mounting rails included

  • 6x 5-20R and 2x L5-20R outlets (battery & surge protection)

  • LCD display with multi-function status indicators

  • SmartSlot for remote network monitoring & control

  • Supports external battery packs for extended runtime

  • Hot-swappable, user-replaceable batteries

  • TAA compliant, ENERGY STAR® qualified

  • $150K connected equipment protection guarantee

Reliability & Performance

The SRT2200RMXLAUS provides consistent sine wave output, eliminating power irregularities and ensuring compatibility with sensitive electronics. With up to 6 minutes of runtime at full load and 16+ minutes at half load, it supports critical systems through short outages or until generators engage. Hot-swappable batteries ensure continuous power without disruption during maintenance, and optional extended battery packs extend uptime for prolonged outages. The system is highly manageable through local or remote interfaces and integrates with EcoStruxure IT for remote visibility and analytics.

Key Features :

  • 2200VA / 1980W output capacity

  • True online double-conversion topology

  • 2U rackmount configuration

  • 8 outlets (6× 5-20R, 2× L5-20R)

  • LCD with configurable diagnostics

  • External battery pack support

  • SmartSlot for network cards

  • ENERGY STAR & TAA compliant

  • $150,000 connected equipment protection

Specifications :

SpecificationDetails
Model Number SRT2200RMXLAUS
Power Capacity 2200VA / 1980W
Input Voltage 120V
Input Plug Type NEMA L5-30P
Output Voltage 120V (configurable for 100V, 110V, 127V)
Topology Double-conversion online
Form Factor Rackmount 2U
Dimensions (HxWxD) 3.35″ x 17.0″ x 26.9″
Weight ~68.8 lbs (31.2 kg)
Outlets 6× NEMA 5-20R, 2× NEMA L5-20R
Battery Type Hot-swappable sealed lead-acid (VRLA)
Runtime @ Half Load ~16 minutes
Runtime @ Full Load ~6 minutes
Recharge Time <3 hours to 90%
Expansion Support Yes, supports external battery packs (SRT72BP, etc.)
Communications USB, Serial, SmartSlot
Display LCD with advanced diagnostics and controls
Operating Temperature 0°C to 40°C (32°F to 104°F)
Noise Level ≤55 dBA
Certifications ENERGY STAR®, TAA, UL, RoHS
Warranty 3-Year UPS / 2-Year Battery
