Detailed Specifications

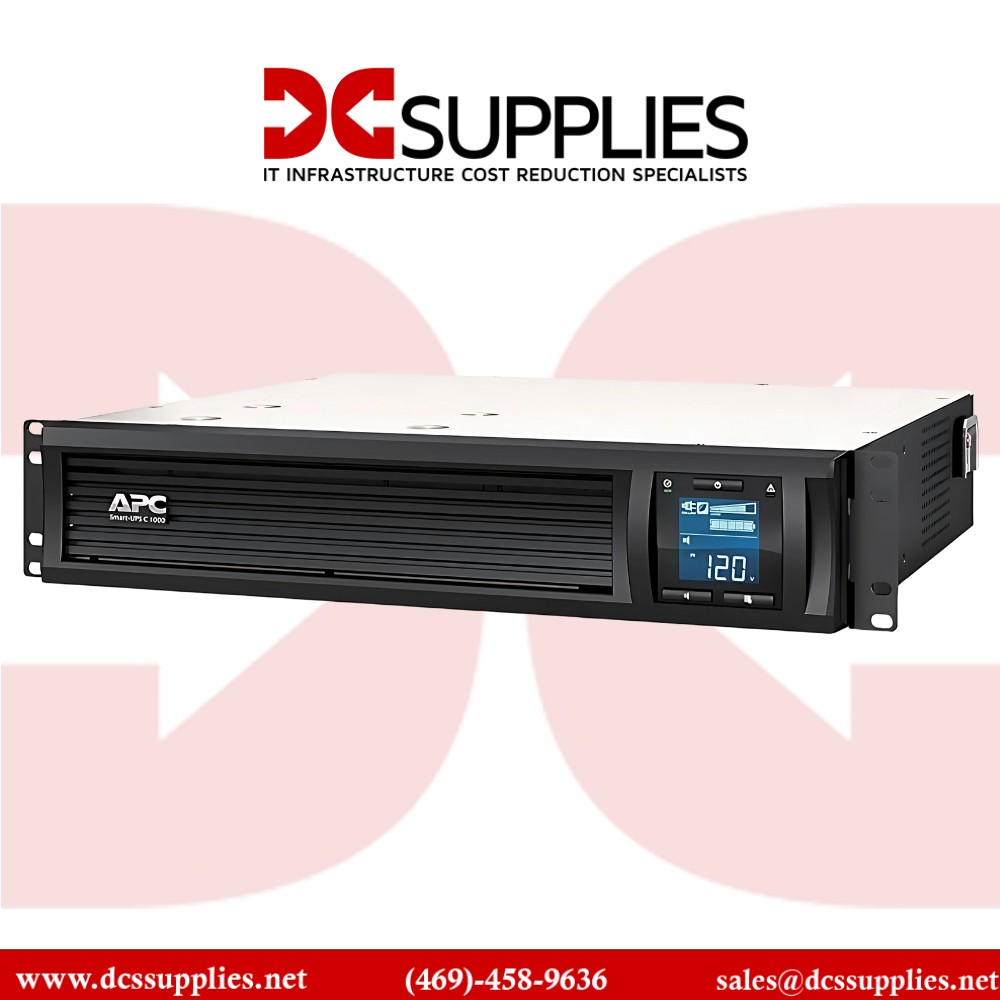

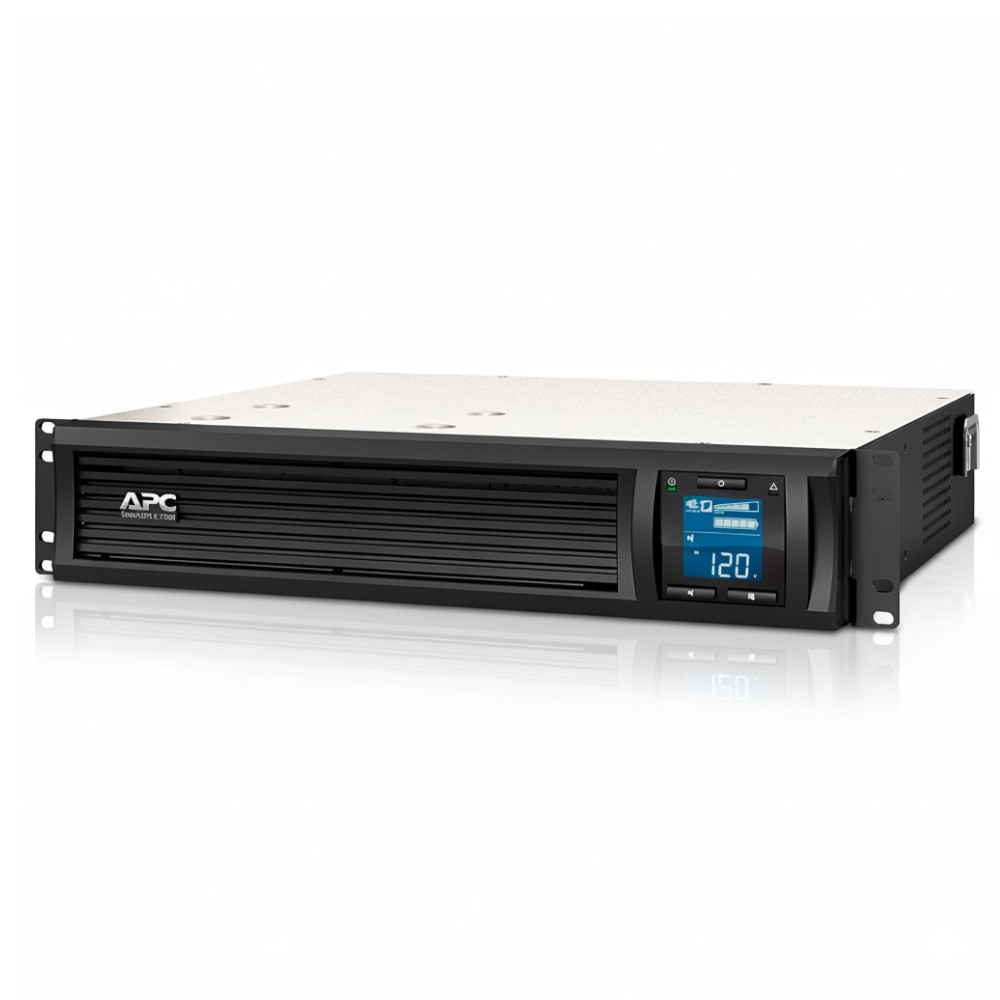

APC SMC1500-2UC Smart-UPS C 1500VA 900W 120V Rackmount 2U UPS with SmartConnect
LONG DESCRIPTION
The APC SMC1500-2UC Smart-UPS C is a 1500VA/900W line-interactive uninterruptible power supply designed for servers, network equipment, retail POS systems, business VoIP equipment, and other critical IT applications.
This exact SMC1500-2UC model is a 2U rackmount UPS designed for 120V applications. It provides six NEMA 5-15R battery-backup and surge-protected outlets and uses a NEMA 5-15P input connection with an 8-foot power cord. Schneider Electric specifies 1440VA/900W capacity, pure sine wave output, and Automatic Voltage Regulation (AVR).
The SMC1500-2UC includes an APC SmartConnect Ethernet port for cloud-based remote monitoring, plus USB and serial communication interfaces for compatible UPS management and graceful shutdown applications. A graphic LCD provides local operating and status information.
The UPS uses a maintenance-free sealed lead-acid battery with a user-replaceable design. The unit supports the APC APCRBC157 replacement battery cartridge and has a typical recharge time of approximately three hours.
OVERVIEW
The APC SMC1500-2UC is a 1440VA/900W line-interactive 120V Smart-UPS C with pure sine wave output, AVR, SmartConnect, six battery-backup outlets, LCD monitoring, and a 2U rackmount design.
KEY FEATURES
- Exact APC model: SMC1500-2UC
- 1500VA / 900W rated capacity
- 1440VA configurable power rating
- Line-interactive UPS topology
- Pure sine wave output
- Automatic Voltage Regulation (AVR)
- Six NEMA 5-15R battery-backup and surge-protected outlets
- SmartConnect Ethernet connectivity for remote UPS monitoring
- USB and serial communication interfaces with graphic LCD
- 2U rackmount design with rack-mounting hardware
SPECIFICATIONS
| SpecificationValue | |
|---|
| Brand | APC |
| Manufacturer | Schneider Electric |
| MPN | SMC1500-2UC |
| Product Type | Uninterruptible Power Supply (UPS) |
| Model | SMC1500-2UC |
| Product Family | Smart-UPS C |
| UPS Technology | Line-interactive |
| Form Factor | Rackmount |
| Rack Height | 2U |
| Rated Capacity | 1500 VA |
| Configurable Power | 1440 VA |
| Rated Power | 900 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Connection | NEMA 5-15P |
| Output Connections | 6 × NEMA 5-15R |
| Battery-Backup Outlets | 6 |
| Output Waveform | Pure sine wave |
| Automatic Voltage Regulation | Yes |
| Communication Interfaces | SmartConnect Ethernet, USB, Serial |
| Display | Graphic LCD |
| Battery Type | Maintenance-free sealed lead-acid |
| Replacement Battery | APC APCRBC157 |
| Full-Load Runtime | Approximately 10.1 minutes |
| Half-Load Runtime | Approximately 25 minutes |
| Typical Recharge Time | 3 hours |
| Power Cord Length | 8 ft |
| Rack Mounting | Yes |
| Product Dimensions | 3.39 × 17.01 × 18.78 in (H × W × D) |
| Product Weight | 55.78 lb |
| Shipping Dimensions | 9.25 × 23.23 × 24.02 in (H × W × D) |
| Shipping Weight | Approximately 63 lb |
| Surge Energy Rating | 680 J |
| Operating Temperature | 32-104°F |
| Warranty | 2 years |
