Detailed Specifications
APC SUA1500IX38 - Smart-UPS 1500 VA 230 V
Overview :
The APC SUA1500IX38 is a line-interactive uninterruptible power supply (UPS) designed for AC power continuity and voltage regulation in 230 V infrastructure. It is deployed by IT engineers, network administrators, and facilities teams to support servers, storage, and networking equipment in environments where brief mains interruptions or sags/swells can disrupt operations.
Rated at 1500 VA / 980 W, this unit delivers conditioned AC power with automatic voltage regulation (AVR) and a sine-wave output to maintain stability during brownouts and overvoltage conditions without unnecessary battery use. Its line-interactive topology provides fast transfer to battery when mains fail.

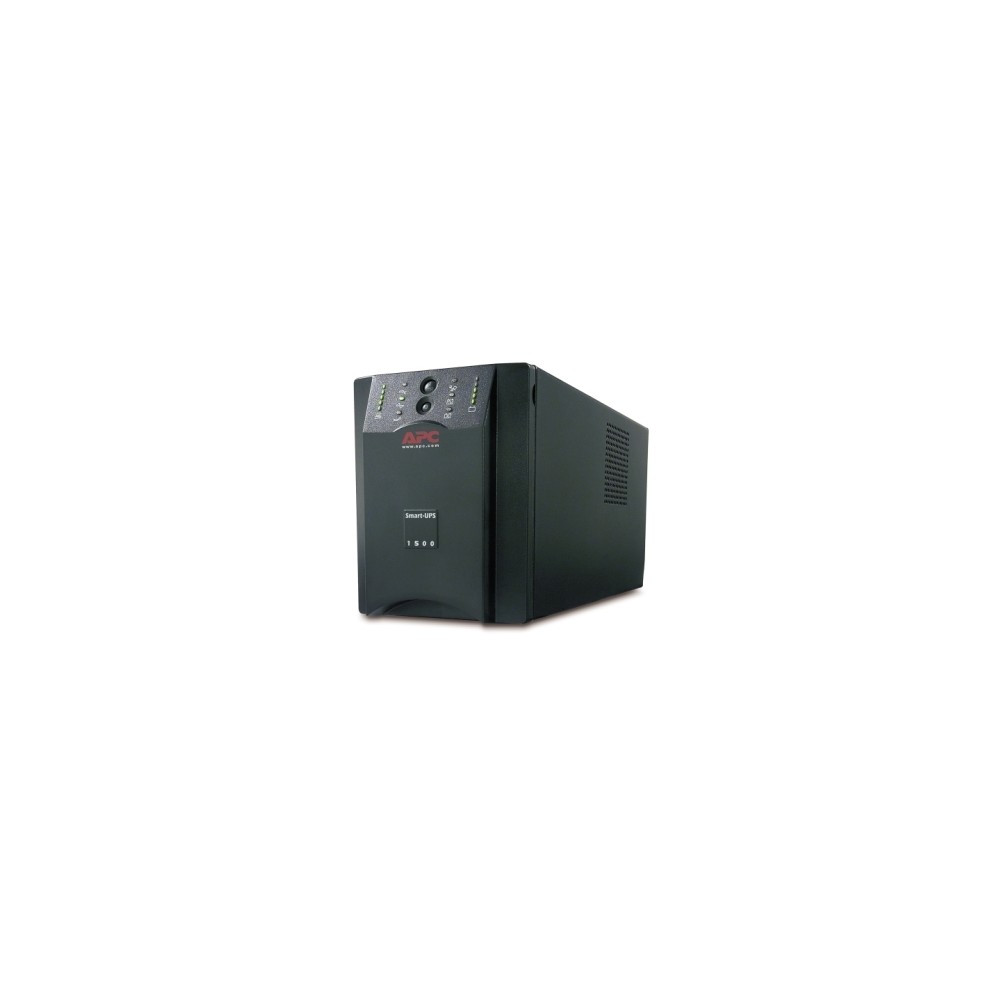

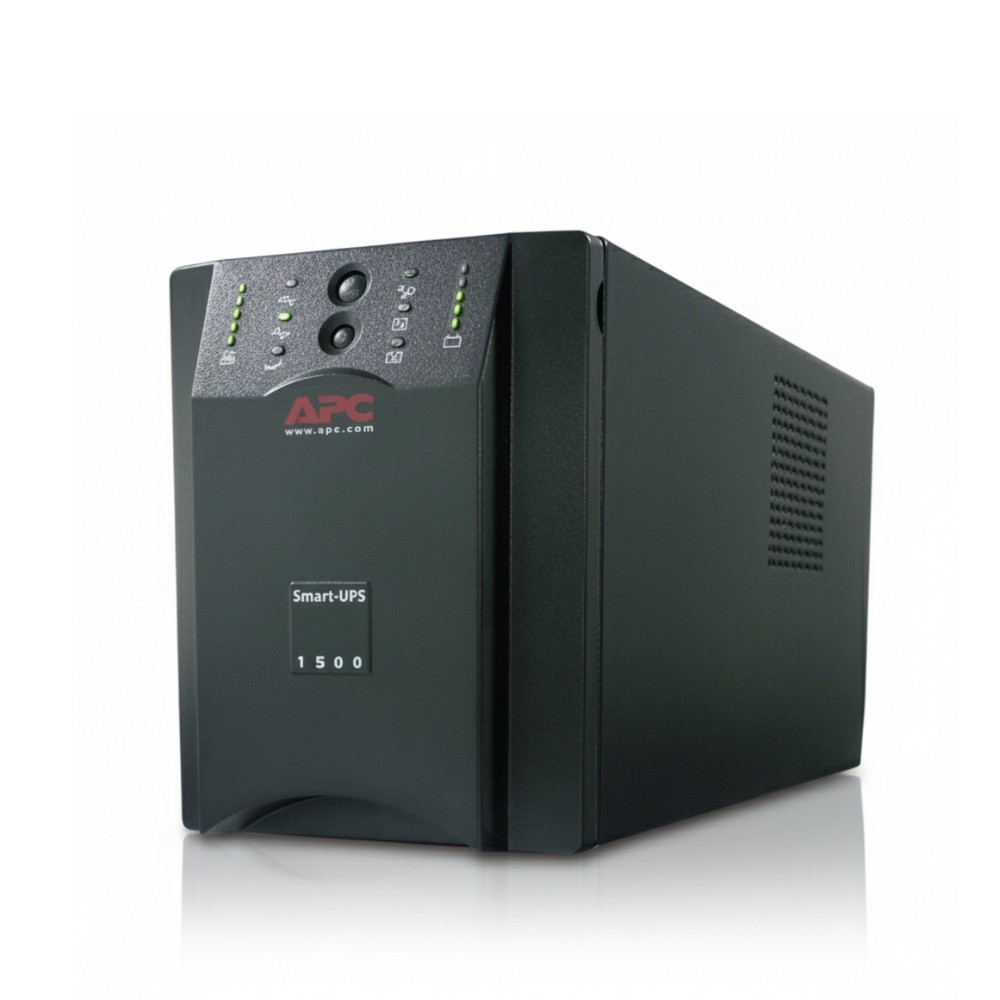

The UPS ships in a tower form factor with eight IEC C13 receptacles and an IEC input connector, fitting equipment racks with shelf mounts or small server closets where space is limited and 230 V power is standard.
Connectivity includes USB, RS-232, and a SmartSlot expansion bay for optional network management or environmental sensor cards, enabling integration with centralized management tools and graceful shutdown software.
Battery runtime at full load is on the order of minutes, suitable for orderly system shutdowns or bridging to backup generators. This UPS is not double-conversion on-line and therefore is not intended for environments requiring strict isolation from all mains disturbances
Key Features
• 1.5 kVA / 980 W line-interactive UPS with AVR
• Eight IEC C13 battery-backup receptacles
• USB + RS-232 connectivity with SmartSlot expansion
• Sine-wave output with swift transfer to battery
• Compact tower form factor for rack/shelf use
Specifications :
| Specification | Value |
|---|
| Brand | APC by Schneider Electric |
| Part Number | SUA1500IX38 |
| Product Type | Smart-UPS Line-Interactive UPS |
| Rated Power Capacity | 1500 VA / 980 W |
| Topology | Line-interactive with AVR |
| Nominal Input Voltage | 230 V AC |
| Input Voltage Range | ~160-286 V AC |
| Input Frequency | 50/60 Hz auto-sensing |
| Input Connection | IEC 320 C14 |
| Nominal Output Voltage | 230 V AC |
| Output Receptacles | 8× IEC 320 C13 |
| Waveform | Sine wave |
| Typical Transfer Time | ~2-4 ms |
| Battery Type | Sealed lead-acid (VRLA) |
| Typical Recharge Time | ~3 hours |
| Estimated Runtime (Full Load) | ~6-7 min |
| Surge Protection | Yes (480 J rating) |
| Operating Temperature | 0-40 °C |
| Dimensions (H×W×D) | ~216×170×439 mm |
| Weight | ~24.1 kg |
