Detailed Specifications

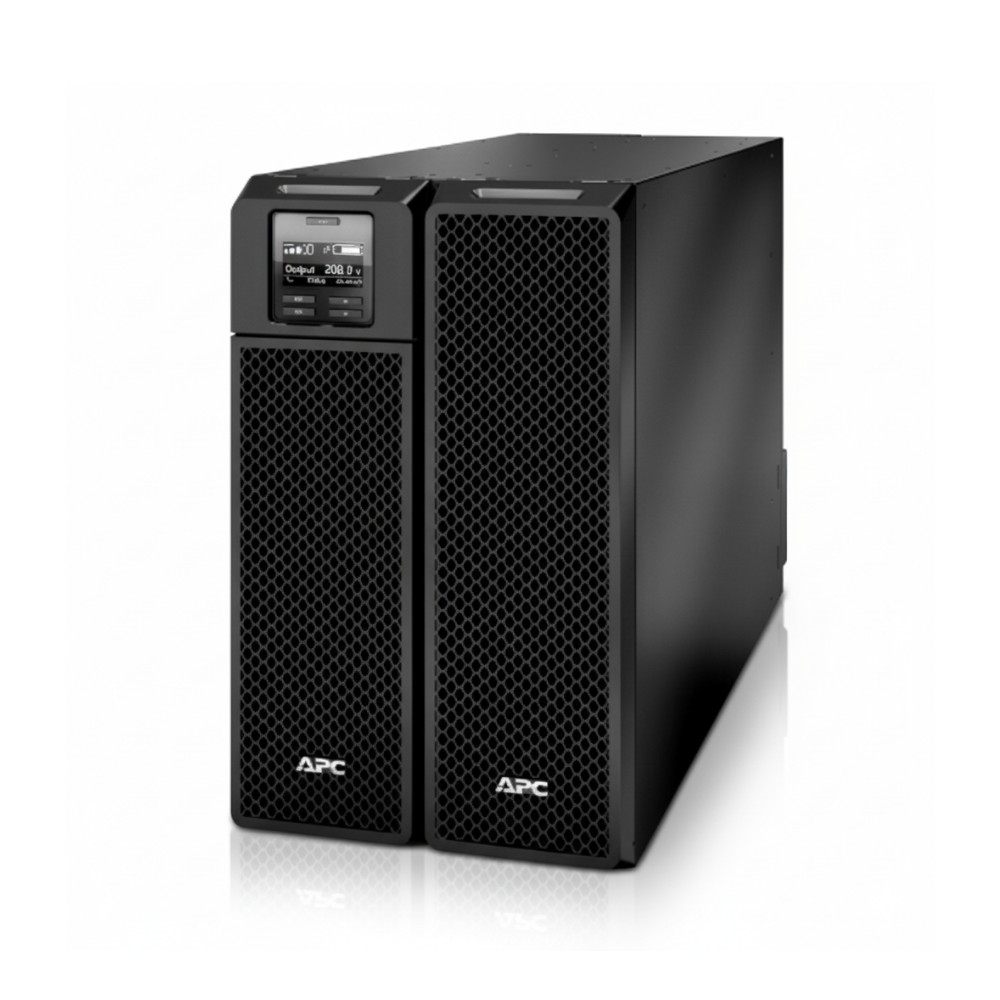

APC SRT10KXLT - Smart-UPS On-Line 10 kVA 208 V
Overview :
The APC SRT10KXLT is a single-phase, double-conversion on-line uninterruptible power supply (UPS) designed to deliver continuous conditioned AC power and backup for critical electrical loads in 208 V infrastructure. It is deployed by data center, network, and IT infrastructure engineers to maintain uptime for servers, storage systems, and network hardware through mains irregularities and power failures.
It provides a 10 kVA / 10 kW continuous output at 208 V nominal with a pure sine-wave output and zero transfer time via its double-conversion topology. Integral automatic bypass ensures that maintenance or overload conditions do not interrupt connected equipment's power.
The unit ships in a convertible form factor suitable for tower use or rack installation with optional rail kits. With configurable output receptacles and a wide input voltage window, it fits installations in server rooms, IDF/MDF cabinets, and edge compute environments where consistent AC power is mandatory.
Management and monitoring are supported through an embedded network management card with SmartSlot expansion, enabling remote visibility and integration with network monitoring tools and APC's EcoStruxure IT platform. Runtime duration can be extended using external battery packs to meet sustained backup requirements.
A practical deployment example is protecting a core virtualization rack with 208 V power feeds against grid instability, ensuring servers and storage arrays remain operational during transient outages. This UPS is not suitable for use as a standalone generator replacement; it bridges utility outages to longer-term backup solutions.
Key Features
• 10 kVA / 10 kW double-conversion on-line UPS topology
• Convertible rack/tower form factor with optional rail kits
• Multiple 208 V receptacles: hard-wire and NEMA outputs
• Embedded network management and SmartSlot expansion
• Extended runtime via up to 10 external battery packs
Specifciations :
| Specification | Value |
|---|
| Brand | APC by Schneider Electric |
| Part Number | SRT10KXLT |
| Product Type | Smart-UPS On-Line UPS |
| Rated Power Capacity | 10 kVA / 10 kW |
| Topology | Double-conversion on-line |
| Nominal Input Voltage | 208 V AC |
| Input Connection | Hard-wire 3-wire (2PH + G) |
| Nominal Output Voltage | 208 V AC |
| Output Connections | 1× hard-wire, 4× NEMA L6-20R, 2× NEMA L6-30R |
| Waveform | Pure sine wave |
| Internal Bypass | Automatic & manual internal bypass |
| Typical Runtime @ Full Load | ~3.7 min |
| Battery Type | Maintenance-free sealed lead-acid |
| Recharge Time | ~1.5 hours |
| Operating Temp | 0-40 °C |
| Humidity | 0-95 % non-condensing |
| Dimensions (H×W×D) | 17.0″ × 10.35″ × 28.15″ |
| Weight | ~246 lb (111.6 kg) |
