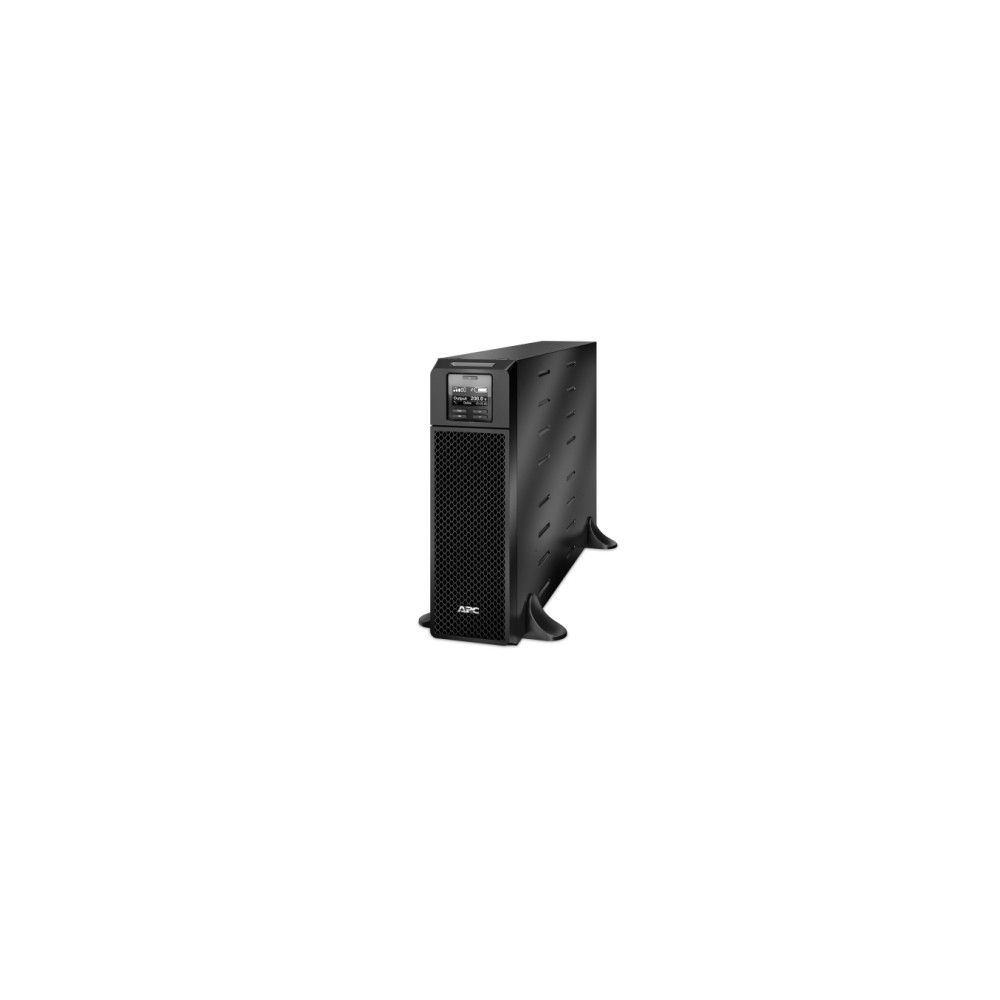

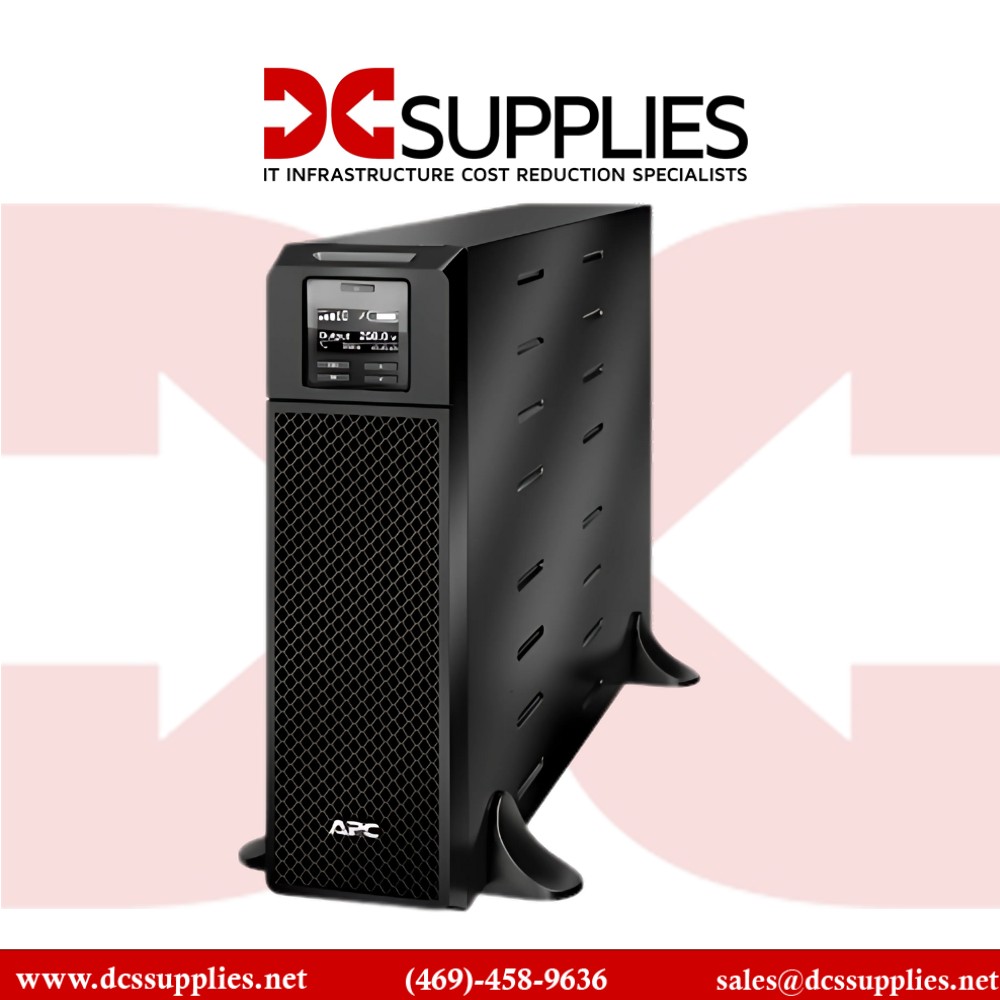

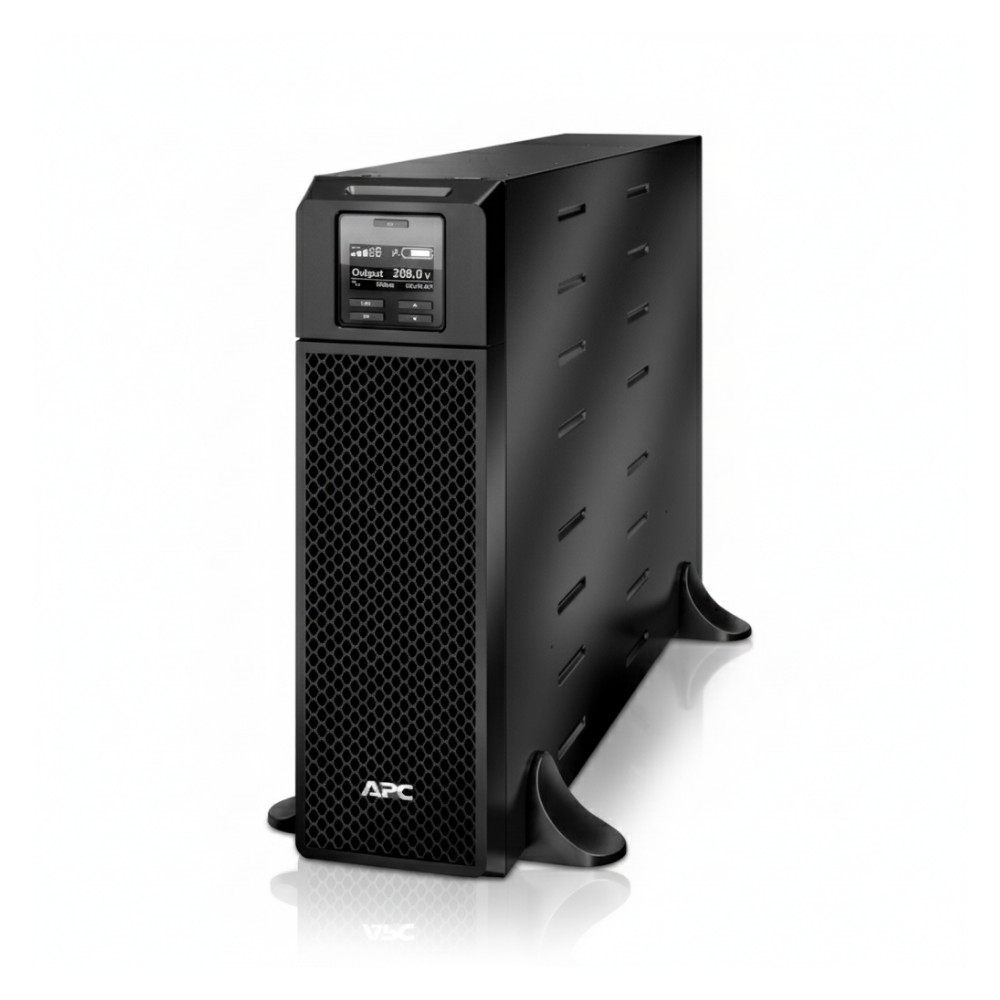

APC SRT5KXLT Smart-UPS On-Line 5.4kVA Tower UPS 208V View larger
Previous Next

APC SRT5KXLT Smart-UPS On-Line 5.4kVA Tower UPS 208V

New

In Stock

APC SRT5KXLT Smart-UPS 5000VA battery backup and surge protection
×




$6,294.95

  • New

Detailed Specifications

APC

SRT5KXLT

Smart‑UPS On‑Line 5.4 kVA (4.8 kW) Tower/Rackmount UPS – 208 V

The APC SRT5KXLT is a robust double-conversion online UPS designed to deliver clean, uninterrupted 208 V power in mission-critical environments. With a capacity of 5.4 kVA (4.8 kW), it protects servers, storage systems, networking gear, medical equipment, and industrial controls from power anomalies, ensuring seamless operation and zero transfer time. Ideal for both tower and rackmount applications (3U with optional rail kit), this UPS offers advanced reliability and scalability to meet demanding infrastructure needs.

Features

The SRT5KXLT uses true online double-conversion technology to continuously regenerate power, isolating your equipment from brownouts, blackouts, surges, and frequency fluctuations . Its 208 V input via NEMA L6-30P supports North American electrical systems, while the output panel offers 2 × L6-20R and 2 × L6-30R outlets—providing flexible power connections without adapters . Ideal for data centers and high-end server racks, it integrates advanced management features through a built-in Network Management Card and SmartSlot, enabling remote monitoring and control.

Advanced Options

Efficiency is enhanced with APC's patented "Green Mode," reducing power losses when line conditions are stable . For extended backup runtime, the UPS supports up to 10 external battery packs (SRT192BP2), making it adaptable to diverse runtime requirements . Convertibility from tower to rack (via SRTRK2 or SRTRK3 kits) further enhances deployment flexibility

Product Key Features

  • 5.4 kVA / 4.8 kW double-conversion online architecture

  • 208 V pure sine wave output compatible with sensitive gear

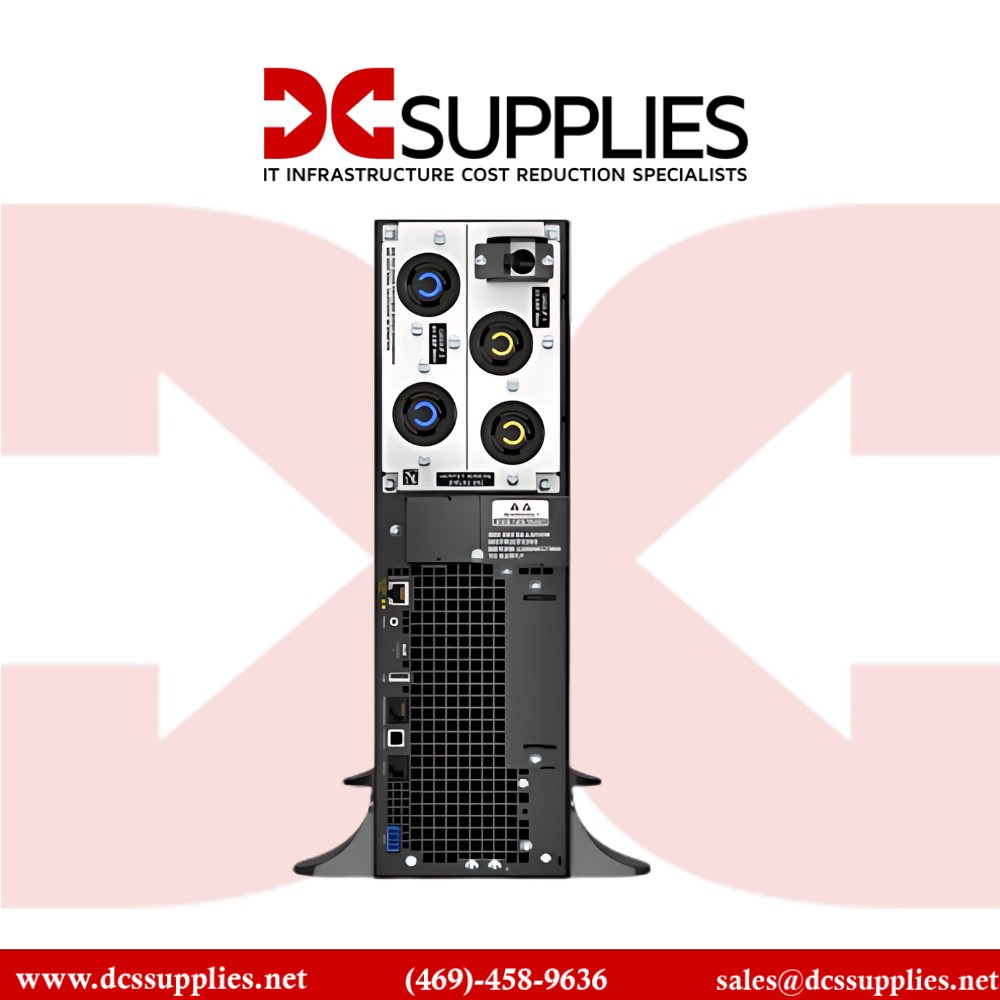

  • Input: NEMA L6-30P; Output: 2 × L6-20R & 2 × L6-30R outlets

  • Built-in Network Management Card + SmartSlot support

  • Optional runtime extension using external battery packs (up to 10)

  • Rack/tower convertible 3U chassis with optional rail kit

  • ENERGY STAR V2.0 certified with Green Mode efficiency

Reliability & Performance

The SRT5KXLT ensures high reliability by using double-conversion continuous power conditioning, ensuring zero transfer time and protection against all power irregularities. With integrated temperature-compensated battery charging and intelligent battery management, the UPS optimizes battery life and performance under all conditions.Built to withstand temperature extremes up to 40 °C, it supports deployments in both climate-controlled and edge-site equipment rooms .

Embedded network management enables real-time remote alerts, shutdowns, and diagnostics using PowerChute software, minimizing downtime and improving maintenance agility. The 3-year UPS warranty and 2-year battery warranty provide long-term coverage and peace of mind.

Key Features (Bullet List)

  • 5.4 kVA / 4.8 kW double-conversion online protection

  • 208 V pure sine wave output; zero transfer time

  • NEMA L6-30P input; 2 × L6-20R & 2 × L6-30R outputs

  • Embedded Network Management Card + SmartSlot

  • Support for up to 10 external battery packs

  • 3U rack/tower convertible chassis

  • Green Mode efficiency; ENERGY STAR certified

  • Temperature-compensated battery care

  • Remote management via PowerChute

  • 3-year UPS / 2-year battery warranty

Specifications :

SpecificationDetails
Model Number SRT5KXLT
Product Type Double-conversion Online UPS (Rack/Tower, 3U)
Power Capacity 5.4 kVA / 4.8 kW
Input Voltage 208 V AC (NEMA L6-30P)
Output Voltage 208 V pure sine wave
Output Connectors 2 × NEMA L6-20R; 2 × NEMA L6-30R
Waveform Pure sine wave
Topology Online double-conversion
Battery Modules Internal VRLA batteries (hot-swappable)
External Runtime Support Up to 10 × SRT192BP2 battery packs
Form Factor 3U Rackmount; Tower convertible with SRTRK2/SRTRK3 kits
Network Management Embedded NMC (SmartSlot); PowerChute software included
Certifications ENERGY STAR V2.0, UL, cUL, FCC
Operating Temperature 0–40 °C
Warranty UPS – 3 years; Battery – 2 years
