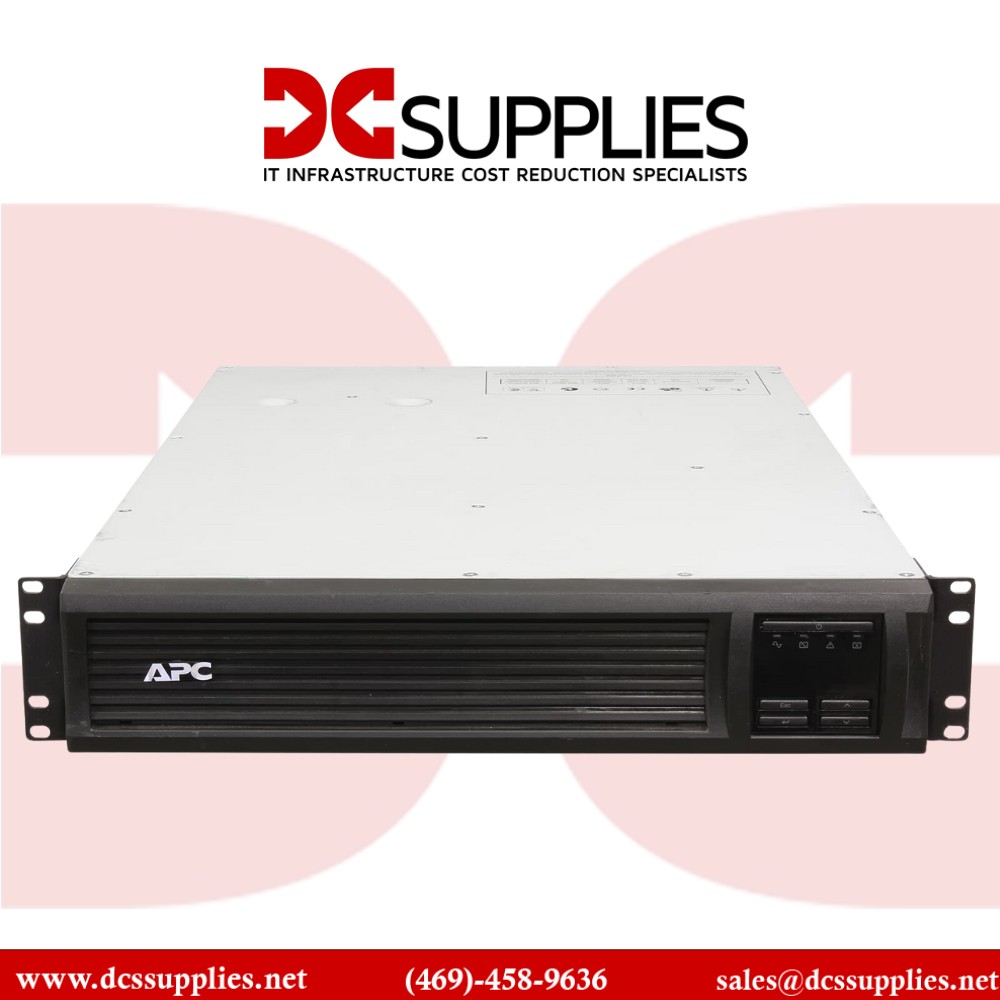

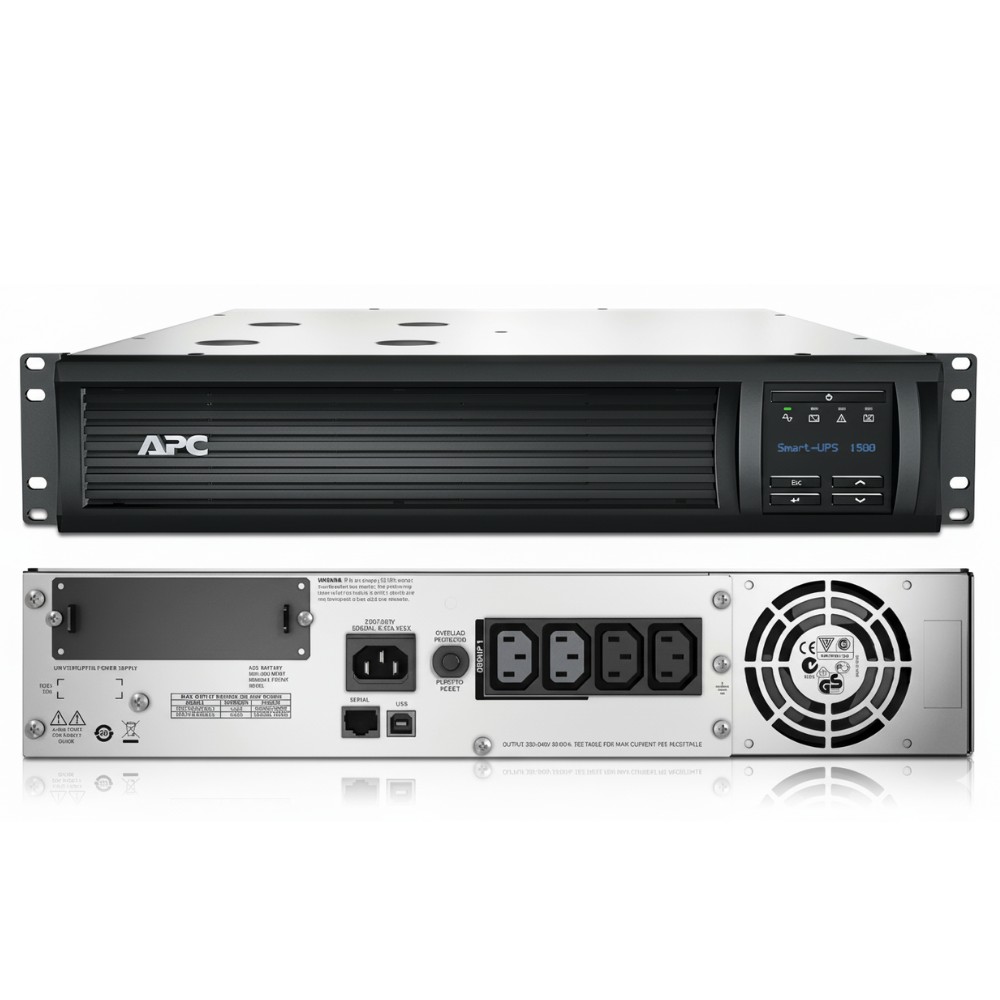

APC SMT1500RMI2U Smart-UPS 1500VA LCD RM 2U 230V

New

1500VA line-interactive UPS with AVR, SmartSlot, and LCD for critical IT loads
×




  • New

Detailed Specifications

APC

SMT1500RMI2U

Smart‑UPS 1500VA Line‑Interactive Rackmount 2U 230 V LCD UPS

The APC SMT1500RMI2U is a compact 2U rackmount line‑interactive UPS delivering 1500 VA / 1000 W of pure sine wave output at 230 V. Tailored for data closets, servers, network switches, and VoIP/POS systems, it features an intuitive LCD, AVR for voltage stabilization, and SmartSlot expandability. Ideal for IT professionals seeking reliable, remote‑manageable power protection in space‑constrained environments.

Features

Built around APC’s proven line‑interactive technology, the SMT1500RMI2U safeguards essential equipment against outages, brownouts, and surges, while automatic voltage regulation (AVR) corrects voltage anomalies without draining the battery. It features 4 IEC C13 outlets and 2 IEC jumpers, plus an APC SmartSlot for optional communication cards, enabling networked monitoring and shutdown automation. The built‑in LCD display provides real‑time data on load, battery status, and energy usage—ideal for proactive system management in server racks and edge deployments

Advanced Options

This model also supports extended runtime through external battery packs, perfect for extended power coverage during prolonged outages. With hot‑swappable batteries, intelligent battery management, cold‑start capability, and UL‑compliant surge protection, it offers uninterrupted protection with minimal maintenance. Its Eco‑friendly design includes recycled packaging and participation in battery take‑back programs

Product Key Features

  • 1500 VA / 1000 W capacity with pure sine wave output

  • Rackmount 2U form factor with AVR stabilization

  • LCD for status display and control

  • 4 IEC C13 + 2 IEC jumper outlets

  • SmartSlot for network management or remote monitoring

  • Cold‑start and green mode for efficiency

Reliability & Performance

With a typical runtime of ~7 minutes at full load and ~26 minutes at half, the SMT1500RMI2U ensures sufficient buffer for proper shutdown or bridging short disruptions.Its maintenance‑free sealed lead‑acid battery recharges in about 3 hours and supports hot‑swap replacement—reducing service interruptions. Certified surge suppression (459 J), full‑time filtering, plus a 3‑year parts/labor warranty (2 years on batteries), ensure dependable long‑term protection and low total cost of ownership

Key Features (Bullet List)

  • 1500 VA / 1000 W capacity

  • Pure sine wave output

  • 2U rackmount UPS

  • AVR voltage correction

  • LCD status/navigation

  • 4 IEC C13 + 2 IEC jumper outlets

  • SmartSlot expansion

  • Hot‑swap batteries

  • Cold‑start support

  • Surge rating: 459 J

Specifications :

SpecificationDetails
Model Number SMT1500RMI2U
Capacity (VA / W) 1500 VA / 1000 W
Output Voltage 230 V (configurable to 220/240 V)
Topology Line‑Interactive with AVR (boost & trim)
Waveform on Battery Pure sine wave
Outlets 4 × IEC C13 + 2 × IEC jumpers
SmartSlot 1 slot for management cards
Display LCD status and configuration panel
Runtime @ Full / Half Load ~7 min / ~26 min backup
Battery Type Sealed lead‑acid, 1 × internal (replaceable)
Recharge Time ~3 hours to 90%
Cold‑Start Capable Yes
Surge Rating 459 J
Connections USB, RJ-45 serial, SmartSlot
Dimensions (HxWxD) 86 × 432 × 457 mm (2U rack height)
Net Weight 28.6 kg
Operating Temperature 0–40 °C
Warranty 3 years repair/replace (UPS), 2 years battery
