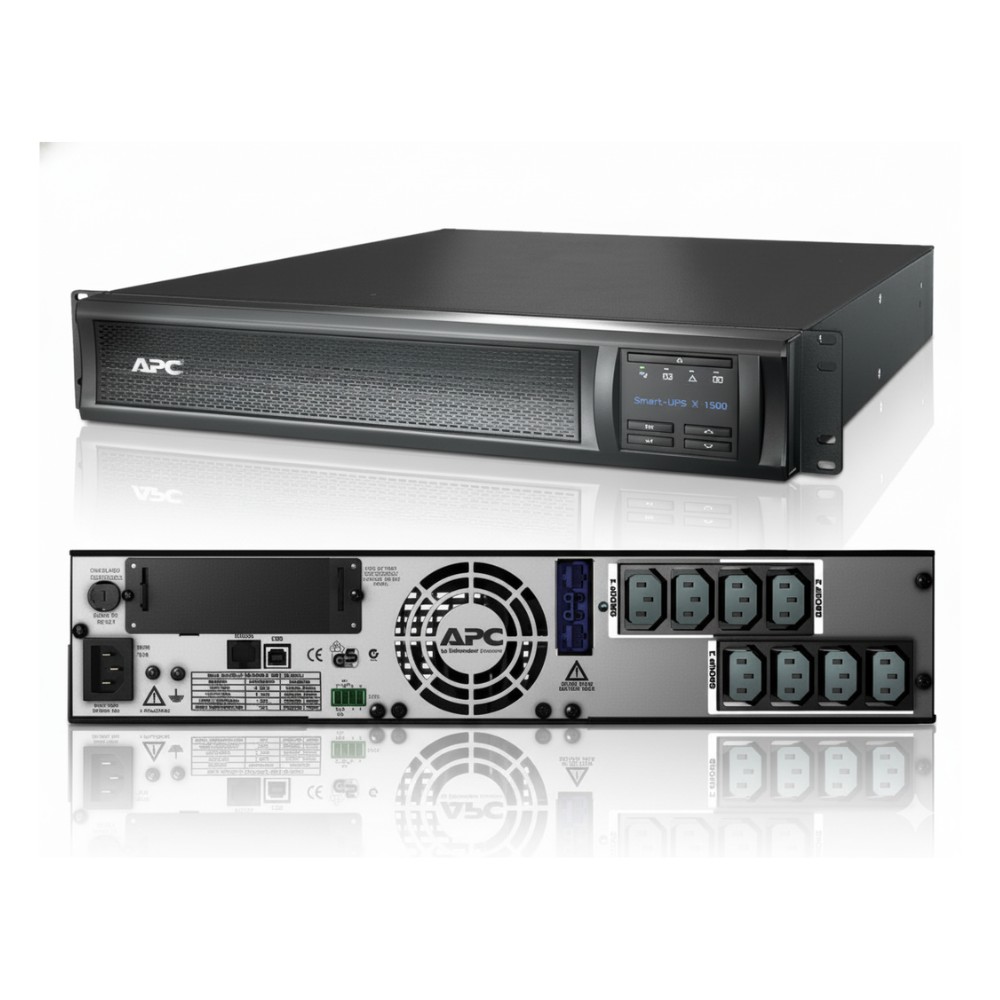

APC SMX1500RMI2U 1500VA Rack/Tower Smart-UPS 230V
Overview :
The APC SMX1500RMI2U is a line-interactive uninterruptible power supply designed to provide regulated 230V power and battery backup for rack-mounted IT infrastructure. It is typically deployed by network engineers and infrastructure teams protecting servers, storage arrays, routers, and switching equipment where electrical stability is required to maintain uptime. The UPS delivers conditioned sine-wave power while maintaining battery backup capability during outages, allowing systems to continue operating briefly or perform controlled shutdown procedures.
The unit provides a rated capacity of 1500VA / 1200W and operates within a single-phase 230V electrical ecosystem. It connects to upstream power using an IEC C14 input connector and distributes power through eight IEC C13 battery-backed outlets, enabling multiple rack devices to be protected within the same UPS. Automatic voltage regulation compensates for under-voltage and over-voltage conditions without switching to battery power, preserving battery capacity for actual outages.
The chassis is a rack/tower convertible platform occupying 2U of rack space in a standard 19-inch cabinet. This allows flexible deployment across branch server racks, IDF cabinets, and edge infrastructure environments where rack space is limited but battery protection remains necessary. At approximately 19 inches of rack depth and just over 50 lb in weight, the unit fits most network cabinets commonly used in distributed infrastructure deployments.
The UPS integrates into monitoring environments using USB and serial communication interfaces along with a SmartSlot expansion bay for optional network management cards. With a network management module installed, administrators can monitor load, battery health, and power events through centralized monitoring systems using SNMP or similar management protocols.
A typical deployment places the UPS at the base of a network rack supporting virtualization hosts, firewall appliances, and switching infrastructure. During a utility outage, the UPS provides several minutes of runtime×typically around five minutes at full load×allowing automation systems or shutdown software to preserve data and safely power down equipment.
This UPS is not intended for high-density compute racks exceeding its 1200W capacity or environments using 120V or 208V power distribution systems. Larger racks or higher-power server clusters typically require higher-capacity rack UPS systems designed for multi-kilowatt loads.
Key Features :
• 1500VA / 1200W line-interactive UPS power capacity
• Eight IEC C13 outlets for rack-mounted IT equipment
• Rack/tower convertible chassis occupying 2U rack space
• SmartSlot expansion for network UPS management cards
• Automatic voltage regulation for unstable utility power
Specifications :
| Specification | Details |
|---|
| Brand | APC |
| Part Number | SMX1500RMI2U |
| Product Type | Line-Interactive Rack/Tower UPS |
| Power Capacity | 1500 VA / 1200 W |
| Nominal Input Voltage | 230 V AC |
| Nominal Output Voltage | 230 V AC |
| Topology | Line-Interactive |
| Output Waveform | Pure Sine Wave |
| Input Connector | IEC 320 C14 |
| Output Receptacles | 8 × IEC 320 C13 |
| Additional Outputs | 2 × IEC jumper connections |
| Input Voltage Range | 160-286 V (adjustable 151-302 V) |
| Input Frequency | 50/60 Hz ±3 Hz auto-sensing |
| Surge Energy Rating | 645 Joules |
| Battery Type | Sealed lead-acid |
| Battery Recharge Time | ~3 hours |
| Runtime (Full Load) | ~5 minutes |
| Runtime (Half Load) | ~17 minutes |
| Rack Height | 2U |
| Dimensions (W × H × D) | 17 × 3.5 × 19.3 in |
| Weight | ~54.6 lb |
| Operating Temperature | 0-45 °C |
| Operating Humidity | 5-95% non-condensing |
| Communications | USB, Serial (RJ-45) |
| Expansion Slot | 1 × SmartSlot |
| Thermal Dissipation | ~133 BTU/hr |
| Acoustic Noise | ~40 dBA |
