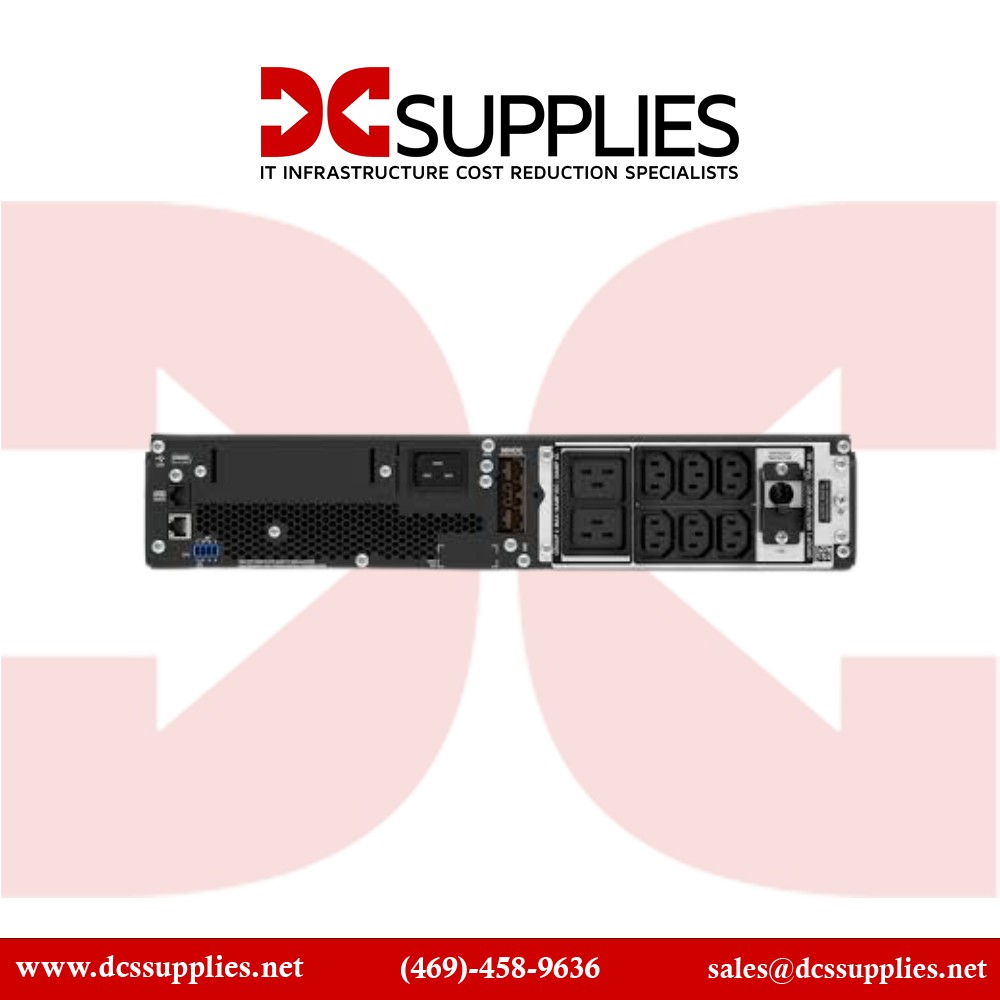

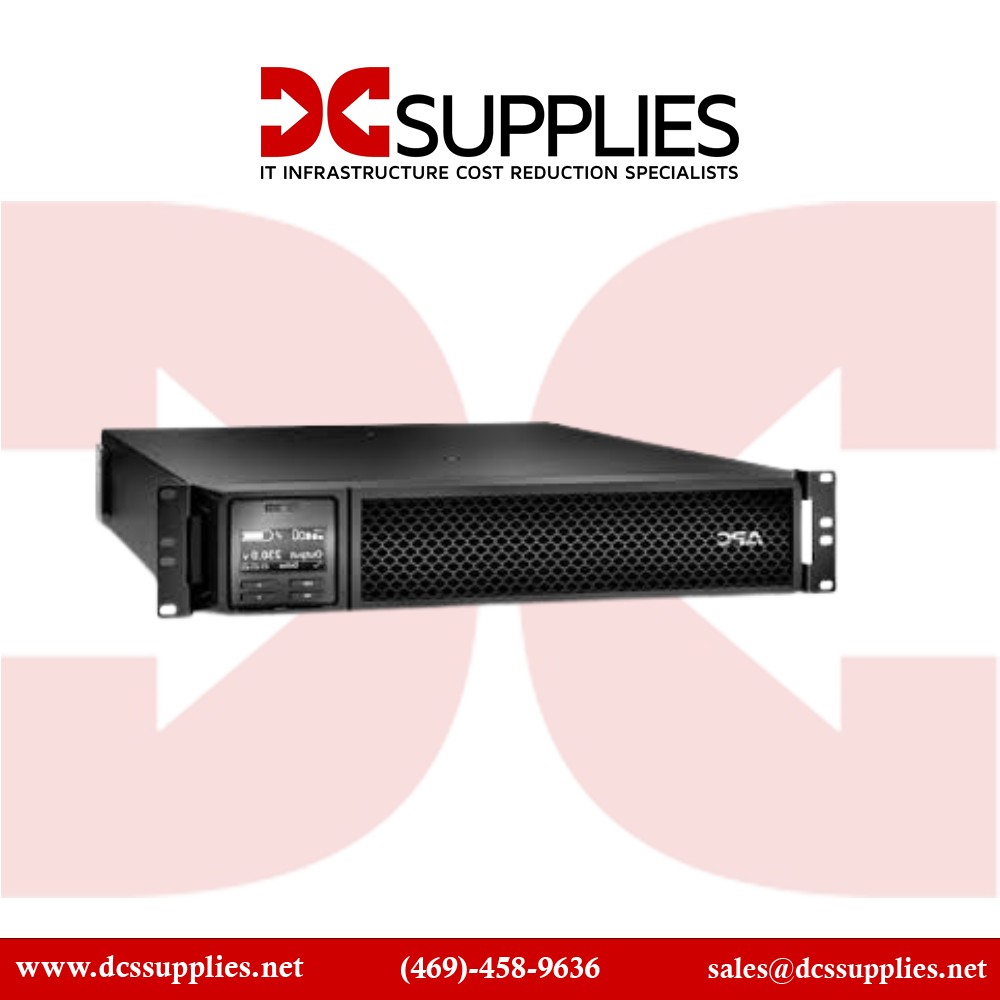

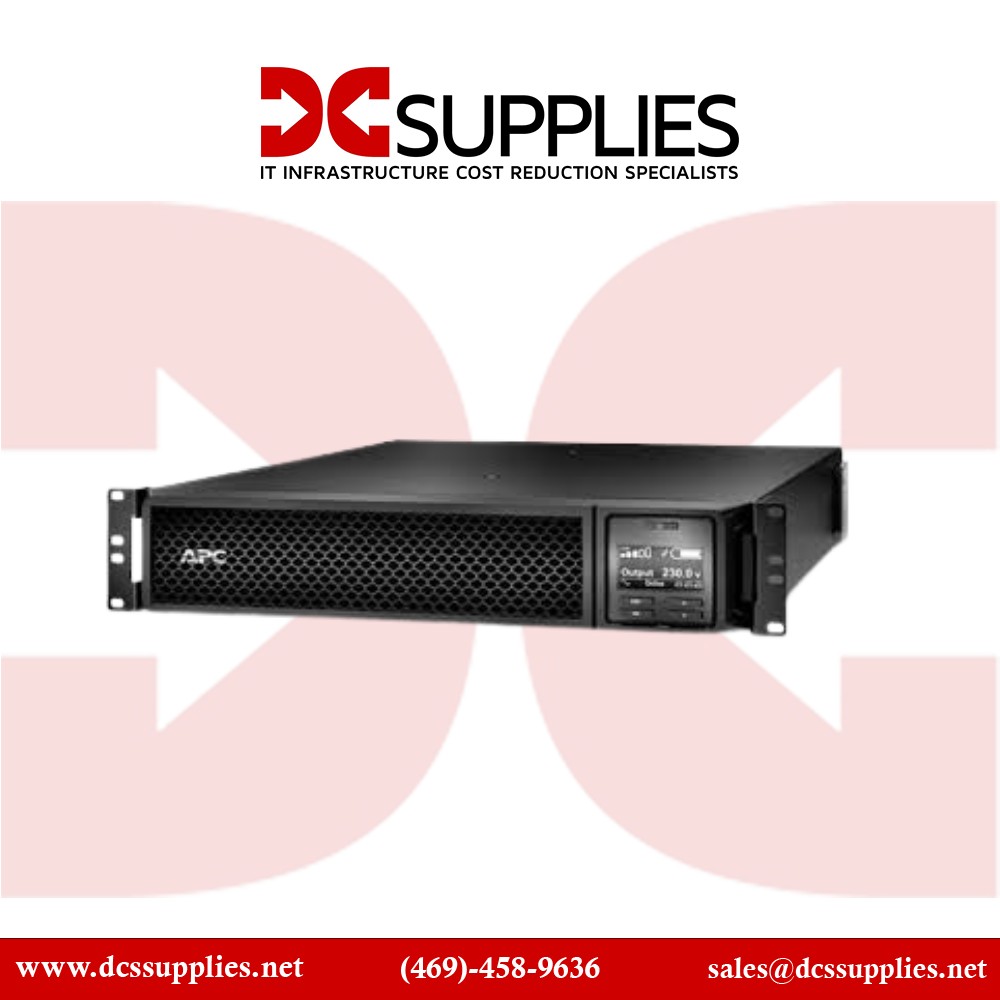

APC SRT3000RMXLW-IEC Smart-UPS On-Line 3kVA Rackmount 2U 208V

New

Reliable 3kVA on-line UPS with extended runtime, SmartSlot, and IEC outlets
×




  • New

Detailed Specifications

APC

SRT3000RMXLW

‑IEC Smart‑UPS On‑Line – 3 kVA / 2U Rackmount, 208/230 V

The APC SRT3000RMXLW‑IEC Smart‑UPS On‑Line offers robust double-conversion protection for mission-critical IT systems. With a 3000 VA/2700 W capacity, this 2U rackmount unit is engineered to deliver continuous, clean power to servers, storage arrays, network gear, medical devices, and industrial equipment in environments with 208 or 230 V utility feeds.

Features

This UPS ensures seamless power backup with zero transfer time thanks to double-conversion topology—ideal for sensitive gear requiring uninterrupted power. Its versatile output configuration allows selection of 208 V or 230 V nominal voltage, and it includes 6 IEC C13 and 2 high-current IEC C19 receptacles with two IEC jumper cables for flexible rack deployment. The unit is designed for rack or tower installation and includes rail hardware and stabilizing feet.

Advanced Options

Equipped with SmartSlot expandability, this model supports network management cards for remote monitoring, control, and graceful shutdown. An intuitive LCD display offers real-time diagnostics, while hot-swappable battery modules facilitate continuous operation during maintenance or replacement. External battery packs (up to 10) can be added to further extend runtime.

Product Key Features

  • 3000 VA / 2700 W double-conversion online UPS with pure sine-wave output

  •  6 IEC C13 + 2 IEC C19 battery-backed outlets + 2 IEC jumpers

  •  Rack/tower convertible 2U form factor with included rail kit

  •  SmartSlot for Network Management Card; includes LCD interface

  •  Supports 208 V or 230 V output configurations

  •  Extended runtime with external battery packs; hot-swappable design

Reliability & Performance

Built for high-demand environments, the SRT3000RMXLW‑IEC delivers consistent 2700 W output with tight voltage regulation (<2 % THD). It supports a wide input range (160–275 V), protecting against voltage fluctuations. At full load, expect approximately 4 minutes of runtime, with ~3 hours to full recharge for standard battery modules. Certifications include CE, UL 1778, ENERGY STAR V2.0, VDE, and others—ensuring compliance with global safety and performance requirements.

Key Features (Bullet List)

  • 3000 VA / 2700 W power capacity

  • Double-conversion online topology

  • 6 × IEC C13, 2 × IEC C19 outputs + 2 jumpers

  • Configurable 208 V / 230 V output

  • Rack/tower convertible 2U chassis

  • SmartSlot for network management

  • LCD interface with alarm indicators

  • Hot-swappable battery modules

  • External runtime expansion (up to 10 packs)

  • Certifications: UL, CE, ENERGY STAR, VDE; 3-year warranty

Specifications :

SpecificationDetails
Model Number SRT3000RMXLW‑IEC
UPS Topology Double-Conversion Online
Power Rating 3000 VA / 2700 W
Input Voltage Range 160–275 V AC, auto-sensing
Input Connector British BS1363A, IEC C20, Schuko
Output Voltage Configurable 208 V or 230 V
Outlets 6 × IEC C13, 2 × IEC C19 + 2 IEC jumpers
Form Factor 2U Rack/Tower Convertible
SmartSlot Yes, for network card
LCD / Indicators Multi-function display with alarms
Battery Type Lead-acid, hot-swappable
Runtime (Full Load) ~4 minutes
Recharge Time ~3 hours
Extended Runtime Supports up to 10 external battery packs
Dimensions (H×W×D) 3.35″ × 17″ × 25″
Weight ~69 lb (31.3 kg)
Certifications UL 1778, CE, ENERGY STAR V2.0, VDE, EAC
Warranty 3‑Year UPS / 2‑Year Battery
