Detailed Specifications
Overview

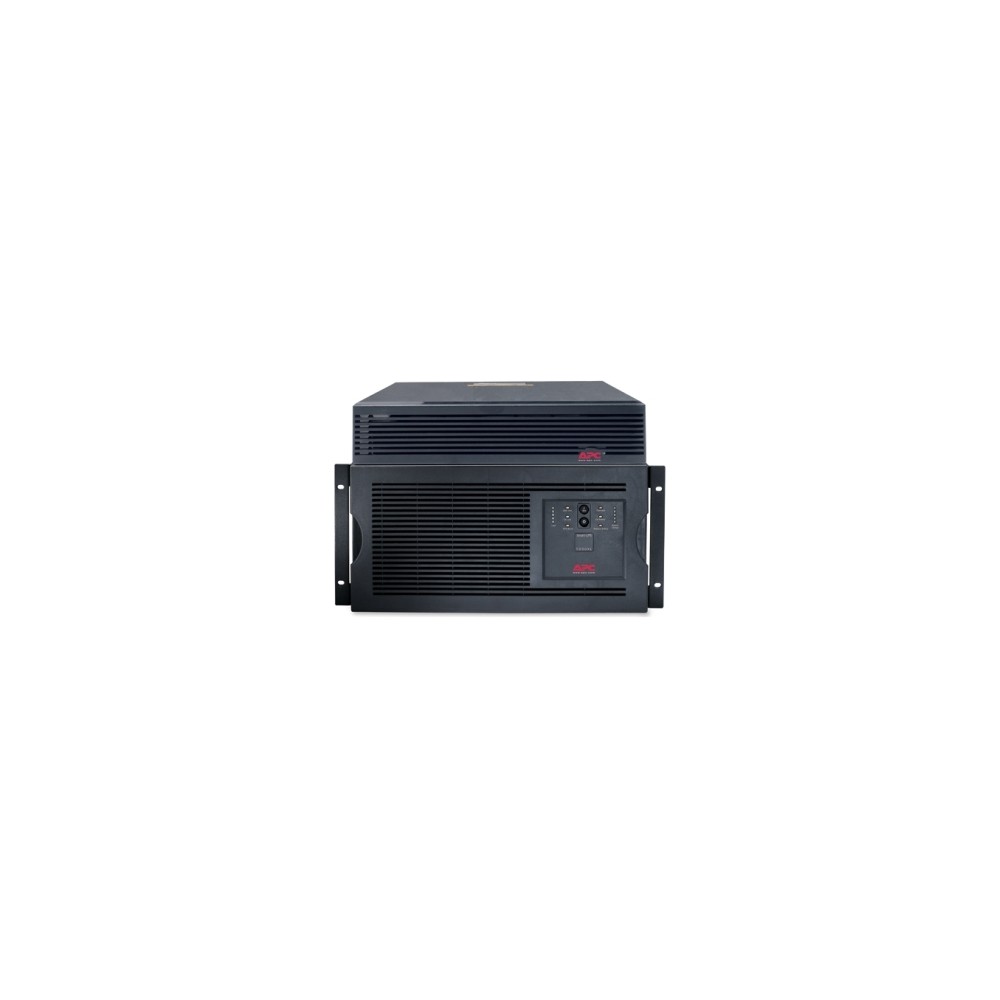

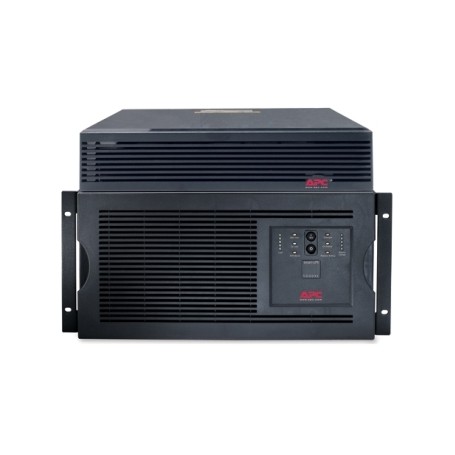

The APC SUA5000R5TXFMR Smart-UPS is a 5000VA/4000W rackmount uninterruptible power supply designed to protect servers, network equipment, and other business-critical electronics. Its built-in transformer supports 208V input and 120V/208V output, making it suitable for installations that require multiple output voltage options. The UPS uses line-interactive technology with automatic voltage regulation to help correct high and low input voltage conditions without unnecessarily switching to battery power. Its 7U rackmount design, sine wave output, and intelligent battery management make it suitable for server rooms and enterprise network environments.
Key Features
- 5000VA / 4000W capacity: Provides backup power for critical equipment.
- Integrated transformer: Supports 208V input and 120V/208V output.
- Line-interactive topology: Uses automatic voltage regulation to correct voltage fluctuations.
- Multiple output receptacles: Includes NEMA 5-20R, L6-20R, and L6-30R outlets.
- Rackmount installation: Occupies 7U of rack space.
- Battery backup: Uses sealed lead-acid batteries with intelligent battery management.
- Communication interface: Supports serial communication and compatible network management accessories.
- Rack accessories included: Supplied with rack mounting support rails and communication cable.
Technical Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number / MPN | SUA5000R5TXFMR |
| Product Type | Rackmount Uninterruptible Power Supply with Transformer |
| Product Series | Smart-UPS |
| Rated Capacity | 5000 VA / 4000 W |
| UPS Topology | Line-interactive |
| Input Voltage | 208V AC |
| Input Connection | NEMA L6-30P |
| Input Cord Length | 8 ft (2.44 m) |
| Output Voltage | 120V / 208V AC |
| Output Connections | 12 × NEMA 5-20R, 2 × NEMA L6-20R, 1 × NEMA L6-30R |
| Output Waveform | Sine wave |
| Automatic Voltage Regulation | AVR Boost and Trim |
| Battery Chemistry | Sealed lead-acid |
| Replacement Battery | RBC55 |
| Typical Battery Recharge Time | Approximately 3 hours |
| Rack Height | 7U |
| Communication | Serial interface; compatible network management accessories |
| Included Accessories | Rack mounting support rails, RS-232 signalling cable, software CD, user manual |
| Color | Black |
Applications
- Business servers and storage systems
- Network switches and communication equipment
- Server rooms and IT infrastructure
- Point-of-sale and back-office systems
- Equipment requiring 120V and 208V power output
Compatibility and Installation
This UPS is designed for rack-mounted installations and requires a compatible 208V AC supply with a NEMA L6-30P input connection. Check the input circuit rating, output voltage requirements, and outlet types of connected equipment before installation. The included rails support rack mounting. Use the specified RBC55 replacement battery and follow APC service instructions for battery maintenance.
Frequently Asked Questions
What is the rated capacity?
The UPS is rated at 5000VA and 4000W.
What input voltage does it use?
It uses a nominal 208V AC input through a NEMA L6-30P connection.
What output voltages are available?
It supports 120V and 208V AC output.
How much rack space is required?
The UPS occupies 7U of rack space.
Which replacement battery does it use?
The specified replacement battery is APC RBC55.
DC Supplies Product Note
Confirm the exact MPN, input circuit requirements, output connector types, rack space, and battery replacement requirements before ordering.
