Overview

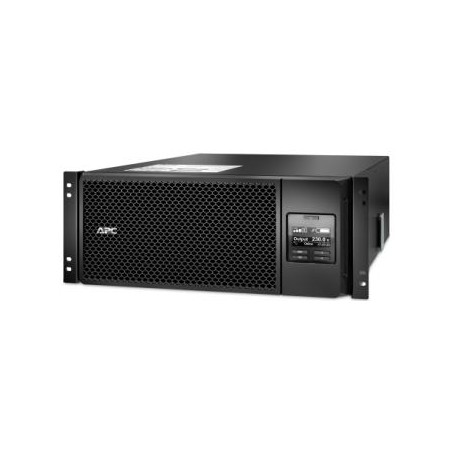

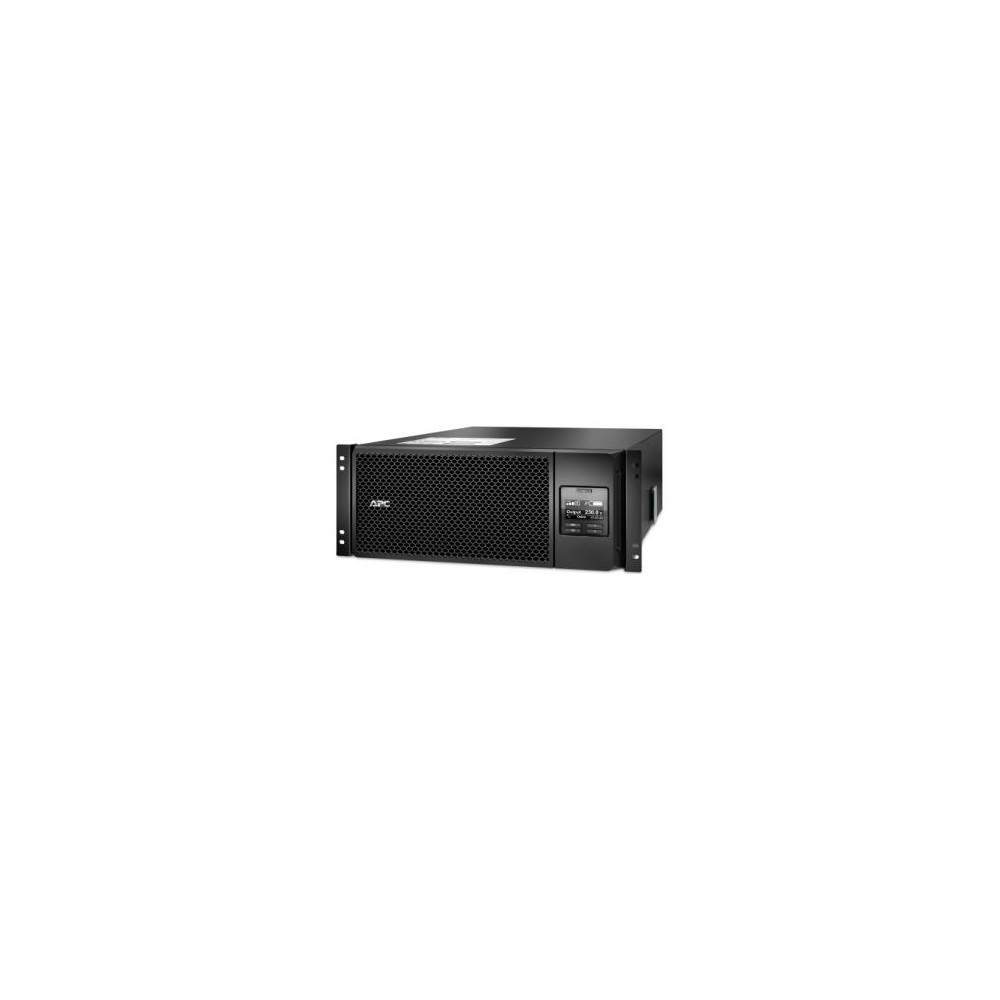

The APC SRT6KRMXLI Smart-UPS On-Line is a 6kVA/6kW uninterruptible power supply designed to protect critical IT equipment against power interruptions and electrical disturbances. Its double-conversion online topology delivers pure sine wave power, making it suitable for servers, storage systems, network infrastructure, and other sensitive equipment. This 230V UPS features a 4U rackmount design, an LCD status and control panel, integrated network management, and support for compatible external battery packs to extend runtime. It also supports rack/tower installation for flexible deployment.
Key Features
- 6000VA / 6000W capacity: Supports demanding critical equipment.
- Double-conversion online technology: Provides continuous power conditioning.
- 230V output: Supports 220V, 230V, and 240V configurations.
- Multiple output connections: Six IEC C13 outlets, four IEC C19 outlets, two IEC jumper connections, and a hardwired output.
- Network management: Supports remote monitoring through its Web/SNMP management card.
- Expandable runtime: Supports compatible SRT192RMBP external battery packs.
- Rack/tower convertible: 4U rackmount format with mounting rails included.
- LCD control panel: Displays system status, alarms, and operating information.
Technical Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number / MPN | SRT6KRMXLI |
| Product Type | Online Uninterruptible Power Supply (UPS) |
| Product Series | Smart-UPS On-Line SRT |
| Rated Capacity | 6000 VA / 6000 W |
| UPS Topology | Double-conversion online |
| Output Waveform | Pure sine wave |
| Nominal Input Voltage | 230V AC |
| Other Supported Input Voltages | 220V, 240V AC |
| Nominal Output Voltage | 230V AC |
| Other Supported Output Voltages | 220V, 240V AC |
| Input Connection | Hardwired 3-wire, single-phase |
| Output Connections | 6 × IEC C13, 4 × IEC C19, 2 × IEC jumper connections, 1 × hardwired 3-wire output |
| Battery Type | Sealed lead-acid |
| Nominal Battery Voltage | 192V DC |
| Replacement Battery Cartridge | APCRBC140 |
| Typical Battery Recharge Time | Approximately 1.5 hours under specified conditions |
| Rack Height | 4U |
| Management Interfaces | Ethernet, RJ-45 serial, USB, SmartSlot |
| Emergency Power Off | Supported |
| External Battery Support | Compatible SRT192RMBP battery packs |
| Dimensions (H × W × D) | 17.4 × 43.2 × 71.9 cm |
| Net Weight | 60 kg (132.28 lb) |
| Color | Black |
Applications
- Enterprise servers and storage systems
- Data centers and server rooms
- Network switches and communication infrastructure
- Medical laboratory equipment
- Business-critical electronic systems
Compatibility and Installation
The SRT6KRMXLI is designed for rackmount or compatible tower installations. Rack mounting hardware and support rails are included in the specified configuration. Confirm the site's electrical supply, hardwired input requirements, output connections, and expected load before installation. Compatible SRT192RMBP external battery packs can be added to extend backup runtime. Installation should be performed by qualified personnel in accordance with APC instructions and local electrical requirements.
Frequently Asked Questions
What is the capacity of the APC SRT6KRMXLI?
It is rated at 6000VA and 6000W.
What output voltage does it support?
Its nominal output is 230V AC, with 220V and 240V configurations also supported.
How much rack space does it require?
The UPS occupies 4U of rack space.
Can the backup runtime be extended?
Yes. Compatible APC SRT192RMBP external battery packs can be added.
Which replacement battery cartridge does it use?
The specified replacement battery cartridge is APC APCRBC140.
DC Supplies Product Note
Confirm the exact model number, input wiring, output connectors, installation requirements, and battery expansion needs before ordering to ensure compatibility with your equipment.
