Overview

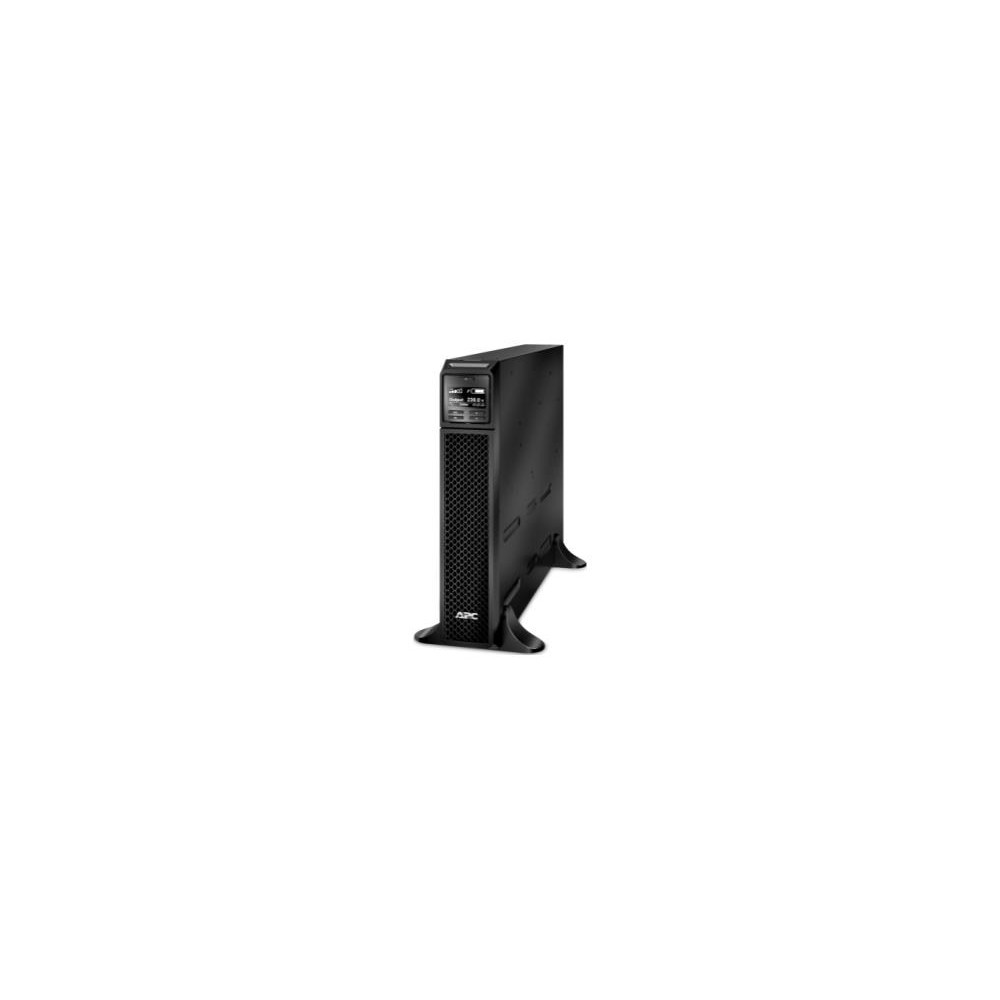

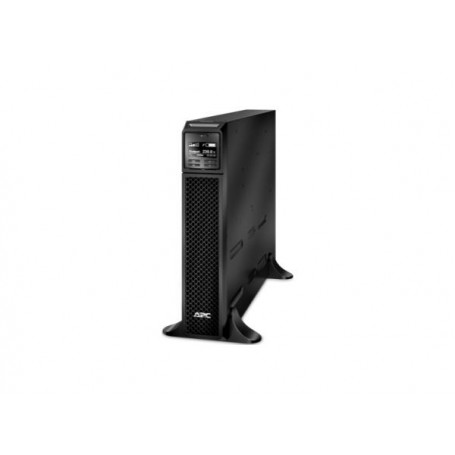

The APC SRT3000XLI Smart-UPS On-Line is a 3000VA/2700W uninterruptible power supply designed to protect servers, network equipment, storage systems, and other critical electronics. Its double-conversion online topology provides conditioned pure sine wave output to help protect connected equipment against power disturbances and interruptions. This 230V UPS features a multifunction LCD control panel, multiple IEC output connections, and support for compatible external battery packs to extend runtime. Its tower design can also be converted for rack installation using a compatible rail kit, sold separately.
Key Features
- 3000VA / 2700W capacity: Provides backup power for critical electronic equipment.
- Double-conversion online technology: Provides continuous power conditioning.
- 230V output: Supports 220V, 230V, and 240V configurations.
- Multiple output connections: Eight IEC C13 outlets, two IEC C19 outlets, and two IEC jumper connections.
- LCD control panel: Displays UPS status and operating information.
- Expandable runtime: Supports compatible external battery packs.
- Rack/tower convertible: Supports tower use or rack installation with a separately purchased rail kit.
- Management connectivity: Includes USB, RJ-45 serial, SmartSlot, and emergency power-off connectivity.
Technical Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number / MPN | SRT3000XLI |
| Product Type | Online Uninterruptible Power Supply (UPS) |
| Product Series | Smart-UPS On-Line SRT |
| Rated Capacity | 3000 VA / 2700 W |
| UPS Topology | Double-conversion online |
| Waveform | Pure sine wave |
| Nominal Input Voltage | 230V AC, single phase |
| Configurable Output Voltage | 220V, 230V, 240V AC |
| Input Connection | IEC C20 or region-specific power cord |
| Output Connections | 8 × IEC C13, 2 × IEC C19, 2 × IEC jumper connections |
| Battery Type | Sealed lead-acid |
| Nominal Battery Voltage | 96V DC |
| Replacement Battery Cartridge | APCRBC152 |
| Typical Battery Recharge Time | Approximately 3 hours |
| Management Interfaces | USB, RJ-45 serial, SmartSlot |
| Emergency Power Off | Supported |
| Installation | Tower or rack-mounted with compatible rail kit |
| Color | Black |
Applications
- Enterprise servers and storage systems
- Network switches and communication equipment
- Data rooms and small data centers
- Medical laboratories and sensitive electronics
- Business-critical IT infrastructure
Compatibility and Installation
Install the UPS according to APC's installation guidelines and the electrical requirements of the site. For rack installations, use a compatible APC rail kit, sold separately. Confirm input connector requirements, output voltage, connected load, and runtime needs before purchasing. Compatible external battery packs can be used where additional runtime is required.
Frequently Asked Questions
What is the power capacity of the SRT3000XLI?
The UPS is rated at 3000VA and 2700W.
What output voltage does it support?
It supports configurable 220V, 230V, and 240V AC output.
Can it be installed in a server rack?
Yes. It supports rack/tower installation, but the compatible rail kit is sold separately.
Which replacement battery does it use?
The specified replacement battery cartridge is APC APCRBC152.
Can I extend the backup runtime?
Yes. The UPS supports compatible external battery packs. Check the APC compatibility documentation before selecting a battery pack.
DC Supplies Product Note
Confirm the exact MPN, electrical connections, output voltage, mounting accessories, and battery requirements before ordering to ensure compatibility with your equipment.
