Overview

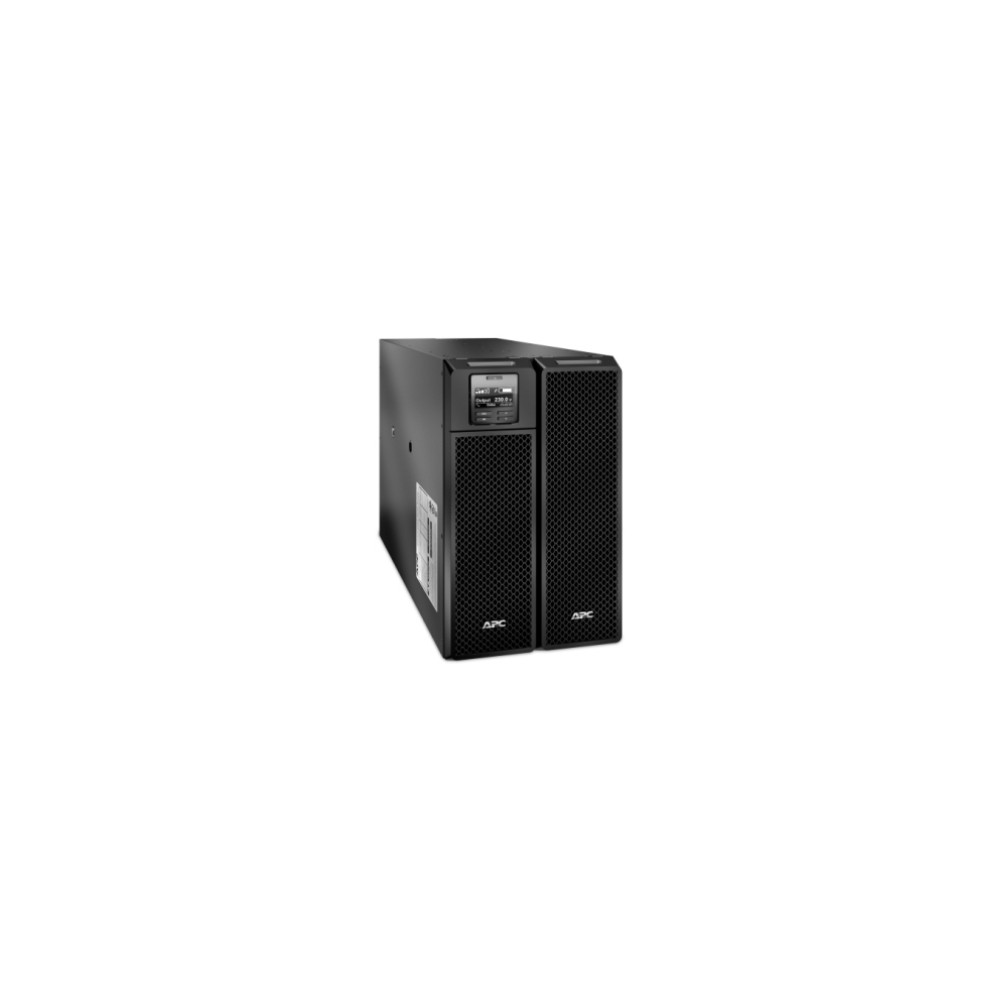

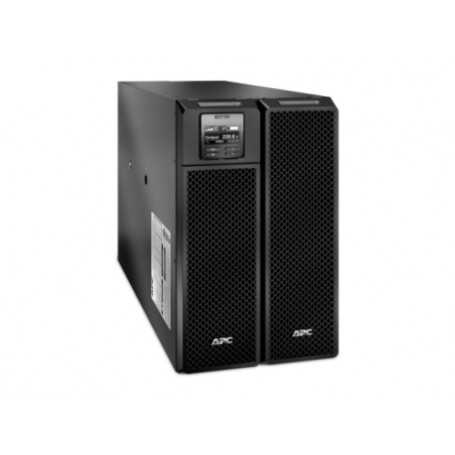

The APC SRT10KXLI Smart-UPS On-Line is a 10kVA/10kW uninterruptible power supply designed to protect critical IT infrastructure and electronic equipment from power interruptions and fluctuations. It uses double-conversion online technology to provide conditioned, pure sine wave power and supports scalable runtime through compatible external battery packs. The unit features a tower configuration that can be converted for rack installation with a separately purchased compatible rail kit. Embedded network management and a SmartSlot expansion slot support remote monitoring and power management.
Key Features
- 10kVA / 10kW capacity: Supports demanding critical loads.
- Online double-conversion topology: Provides continuous power conditioning.
- 230V output: Supports compatible 220V and 240V applications.
- Multiple output connections: Six IEC C13 outlets, four IEC C19 outlets, three IEC jumper connections, and a hardwired output.
- Network management: Embedded Web/SNMP management card with USB and serial connectivity.
- Expandable runtime: Supports compatible SRT192BP2 external battery packs.
- Rack/tower convertible: Tower unit with compatible rack rails sold separately.
Technical Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number / MPN | SRT10KXLI |
| Product Type | Online Uninterruptible Power Supply (UPS) |
| Product Series | Smart-UPS On-Line SRT |
| Rated Capacity | 10,000 VA / 10,000 W |
| Topology | Double-conversion online |
| Nominal Output Voltage | 230V AC |
| Other Supported Output Voltages | 220V, 240V AC |
| Input Voltage | 230V single-phase or 380V/400V/415V three-phase, depending on configuration |
| Output Connections | 6 × IEC C13, 4 × IEC C19, 3 × IEC jumper connections, 1 × hardwired output |
| Battery Type | Lead-acid |
| Replacement Battery | APCRBC140 |
| Battery Recharge Time | Approximately 1.5 hours under specified conditions |
| Connectivity | Ethernet network management, USB, RJ-45 serial, SmartSlot, EPO |
| Installation | Tower; rack/tower convertible with compatible rail kit sold separately |
| Rack Height | 6U when rack-mounted |
| Color | Black |
Applications
- Enterprise servers and data storage systems
- Data centers and network infrastructure
- Voice and data communication equipment
- Medical laboratories and critical electronic equipment
- Light industrial applications requiring conditioned power
Compatibility and Installation
Install the UPS according to APC's electrical and ventilation requirements. The unit can be used in a tower configuration or installed in a rack using a compatible rail kit, sold separately. Confirm the incoming electrical supply, output connections, connected load, and runtime requirements before installation. Compatible SRT192BP2 external battery packs can be added to extend runtime.
Frequently Asked Questions
What is the capacity of the APC SRT10KXLI?
It is rated at 10,000 VA and 10,000 W.
What output voltage does it provide?
Its nominal output is 230V AC, with 220V and 240V options supported according to configuration.
Can it be rack-mounted?
Yes. It is rack/tower convertible, but the compatible rack rail kit is sold separately.
Which replacement battery does it use?
The specified replacement battery cartridge is APC APCRBC140.
Can runtime be extended?
Yes. Compatible SRT192BP2 external battery packs can be added for extended runtime.
DC Supplies Product Note
Before ordering, verify the exact model number, input wiring, required output connections, rack mounting accessories, and battery expansion requirements for your installation.
