Overview

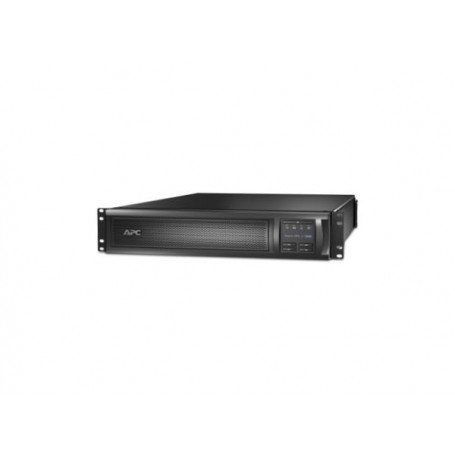

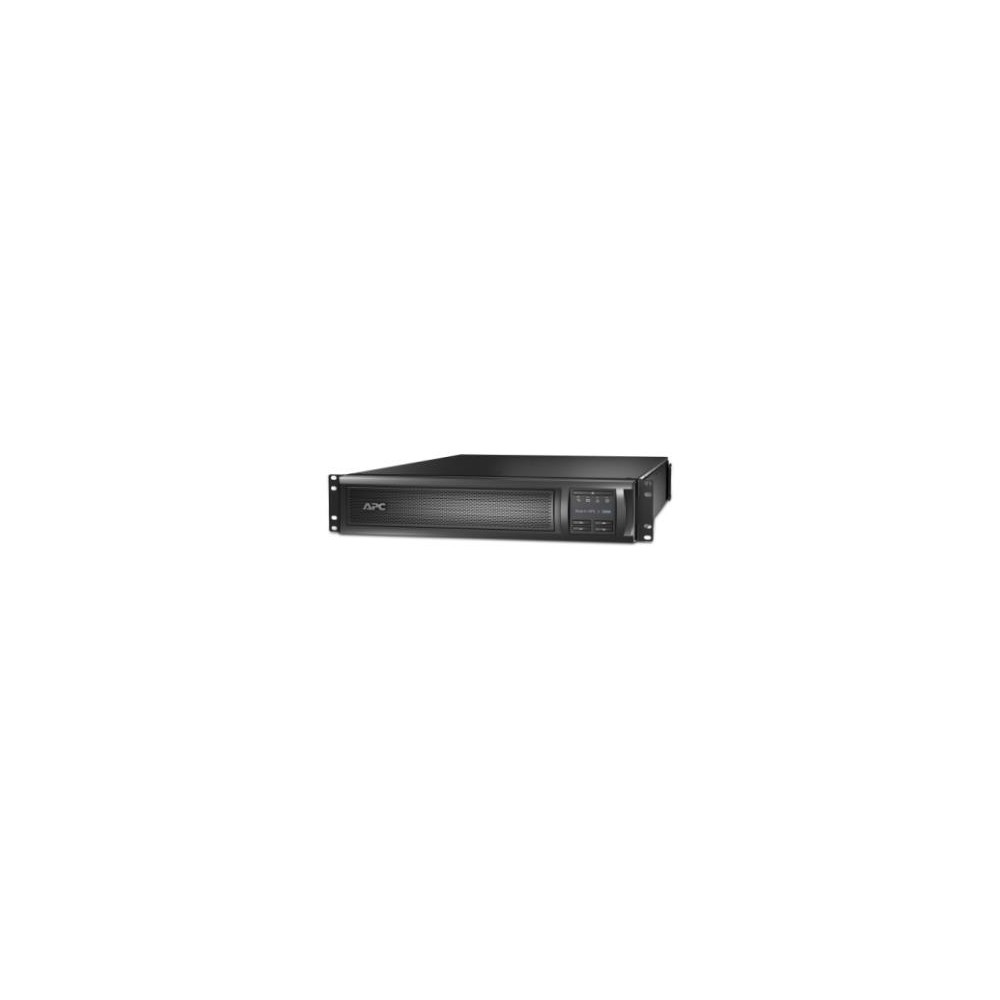

The APC SMX3000RMHV2UNC Smart-UPS X is a line-interactive uninterruptible power supply designed to protect servers, network equipment, and other critical electronics. It delivers 3000VA / 2700W capacity and supports rackmount or tower installation. With pure sine-wave output, automatic voltage regulation (AVR), an LCD interface, and a preinstalled network management card, it enables power protection and remote monitoring for compatible IT environments. The UPS also supports compatible external battery packs to extend runtime.
Key Features
- 3000VA / 2700W capacity: Supports compatible enterprise IT and networking equipment.
- Rack/tower convertible: Fits compatible 2U racks or tower installations.
- High-voltage operation: Supports 208V–230V nominal input and configurable 200V–240V settings.
- Pure sine-wave output: Provides sine-wave power during battery operation.
- LCD status display: Provides access to operating status and configuration.
- Network management: Includes a preinstalled Web/SNMP management card for remote monitoring.
- IEC output connections: Eight C13 outlets and one C19 outlet.
- Extended runtime: Supports compatible external battery packs, including the SMX120RMBP2U.
- Automatic Voltage Regulation: Helps correct input voltage fluctuations.
Technical Specifications
| Specification | Details |
|---|
| Brand | APC by Schneider Electric |
| Part Number / MPN | SMX3000RMHV2UNC |
| Product Type | Uninterruptible Power Supply (UPS) |
| Product Series | Smart-UPS X |
| UPS Topology | Line-interactive |
| Rated Capacity | 3000VA |
| Output Power | 2700W |
| Nominal Input Voltage | 208V / 230V AC |
| Configurable Voltage | 200V–240V |
| Nominal Output Voltage | 230V AC |
| Input Connections | IEC C20, Schuko CEE 7/7, or British BS1363A depending on supplied cord/configuration |
| Output Connections | 8 × IEC C13; 1 × IEC C19; 2 IEC jumper connections listed in datasheet |
| Output Waveform | Pure sine wave |
| Battery Type | Sealed lead-acid |
| Replacement Battery | APC APCRBC117 |
| Typical Recharge Time | 3 hours |
| External Battery Support | SMX120RMBP2U compatible battery pack |
| Network Management | Preinstalled Web/SNMP management card |
| Communication | Ethernet network management, USB, serial, SmartSlot |
| Rack Height | 2U |
| Installation | Rackmount or tower |
| Dimensions (H × W × D) | 3.35 × 17.01 × 26.26 inches |
| Net Weight | 82.28 lb (37.32 kg) |
Applications
- Enterprise servers and storage systems
- Network switches and routers
- Data center and telecommunications racks
- Business-critical IT infrastructure
- Systems requiring remote UPS monitoring
Compatibility and Installation
Verify that the equipment supports the UPS's selected 208V–240V output configuration and that the combined load does not exceed 2700W / 3000VA. Check the supplied input cord and required electrical connection before installation, as connector configurations can vary by region. The UPS occupies 2U of rack space and can also be installed as a tower. For longer backup runtime, use compatible external battery packs. The included network management card supports remote monitoring through a compatible network configuration.
Frequently Asked Questions
What is the power capacity of the SMX3000RMHV2UNC?
It is rated at 3000VA and 2700W.
Can it be installed as a tower?
Yes. It supports rackmount or tower installation.
What output outlets are available?
It provides eight IEC C13 outlets and one IEC C19 outlet, with additional IEC jumper connections listed in the datasheet.
Does it include network management?
Yes. This model includes a preinstalled Web/SNMP management card for network-based monitoring.
Can I extend its runtime?
Yes. Compatible external battery packs, including the SMX120RMBP2U, can be used to extend runtime.
Which replacement battery does it use?
The listed replacement cartridge is APC APCRBC117. Confirm the battery part number against the exact unit revision before ordering.
DC Supplies Product Note
Confirm the exact MPN, electrical input requirements, outlet types, rack dimensions, network management configuration, and battery compatibility before ordering. Warranty terms and included accessories may vary by supplier and region.
