Overview

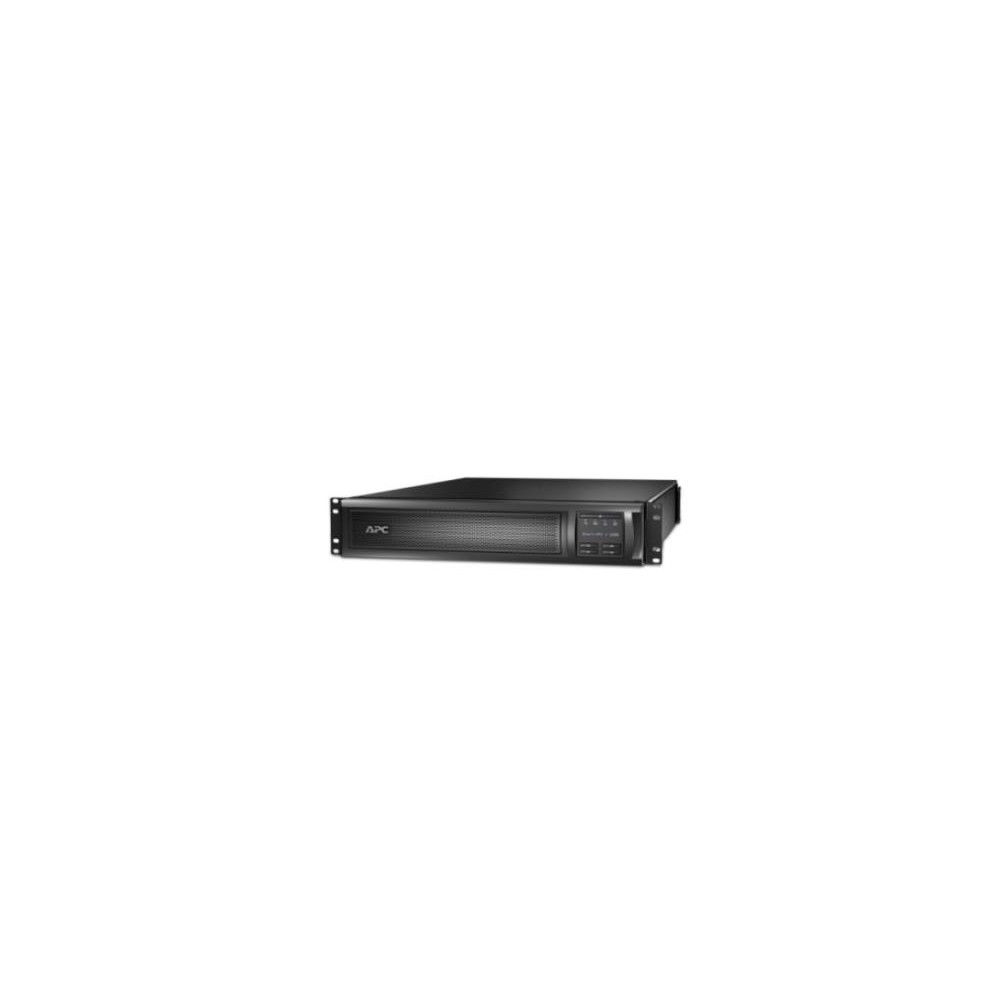

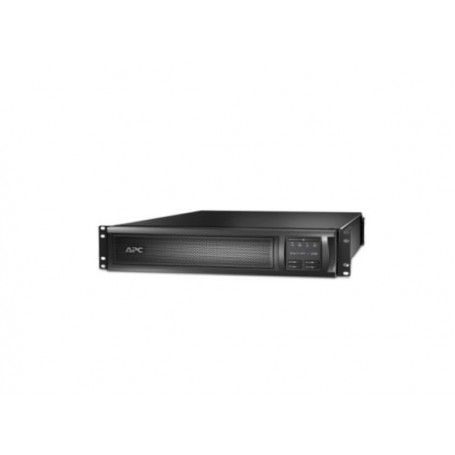

The APC SMX2200RMLVUS Smart-UPS X is a line-interactive uninterruptible power supply designed to protect servers, network equipment, storage systems, and other critical electronics. It delivers 2200VA / 1980W of power and supports rackmount or tower installation. With automatic voltage regulation, pure sine-wave output, an LCD interface, and support for external battery packs, this UPS helps maintain power availability during outages and voltage fluctuations.
Key Features
- 2200VA / 1980W capacity: Supports compatible IT and networking equipment.
- Rack/tower convertible: Supports installation in a compatible 2U rack or as a tower unit.
- LCD status display: Provides access to UPS status and configuration information.
- Automatic Voltage Regulation (AVR): Helps correct voltage fluctuations without unnecessarily switching to battery.
- Pure sine-wave output: Supplies sine-wave AC power during battery operation.
- Eight output outlets: Six NEMA 5-15R and two NEMA 5-20R receptacles.
- Extended runtime capability: Supports compatible external battery packs to extend backup runtime.
- USB and serial communication: Supports monitoring and graceful shutdown with compatible software.
- TAA compliant: Designed to meet applicable Trade Agreements Act procurement requirements.
Technical Specifications
| Specification | Details |
|---|
| Brand | APC by Schneider Electric |
| Part Number / MPN | SMX2200RMLVUS |
| Product Type | Uninterruptible Power Supply (UPS) |
| Product Series | Smart-UPS X |
| UPS Topology | Line-interactive |
| Rated Capacity | 2200VA |
| Output Power | 1980W |
| Nominal Input Voltage | 120V AC |
| Nominal Output Voltage | 120V AC |
| Selectable Voltage Settings | 100V, 110V, 120V, 127V |
| Input Connector | 1 × NEMA L5-30P |
| Output Connectors | 6 × NEMA 5-15R; 2 × NEMA 5-20R |
| Output Waveform | Pure sine wave |
| Battery Type | Sealed lead-acid |
| Replacement Battery | APC APCRBC117US |
| Typical Recharge Time | 3 hours |
| External Battery Support | Compatible SMX120RMBP2U battery packs |
| Communication | USB, serial, SmartSlot |
| Rack Height | 2U |
| Form Factor | Rack/tower convertible |
| TAA Compliance | Yes |
| Dimensions (H × W × D) | 3.35 × 17.00 × 26.26 inches |
| Net Weight | 84.77 lb (38.45 kg) |
Applications
- Servers and storage systems
- Network switches and routers
- Telecommunications equipment
- Business-critical IT infrastructure
- Government and TAA-compliant procurement environments
Compatibility and Installation
Confirm that the connected equipment supports the selected output voltage and that the combined load remains within 1980W / 2200VA. The UPS uses a NEMA L5-30P input connection and provides six NEMA 5-15R plus two NEMA 5-20R output outlets. Check the rack depth and mounting clearances before installation. Compatible external battery packs can be used where extended runtime is required. Use the supported USB or serial connection and compatible APC software for monitoring and graceful shutdown.
Frequently Asked Questions
What is the capacity of the SMX2200RMLVUS?
It is rated at 2200VA and 1980W.
Can it be installed as a tower?
Yes. The unit supports rackmount or tower installation with the appropriate included mounting accessories.
How many output outlets are available?
It has six NEMA 5-15R outlets and two NEMA 5-20R outlets.
Can the runtime be extended?
Yes. It supports compatible external battery packs, including the SMX120RMBP2U.
Which replacement battery does it use?
The listed replacement battery cartridge is APC APCRBC117US.
Is this model TAA compliant?
Yes. Schneider Electric identifies this model as TAA compliant. Confirm any additional requirements for your procurement contract.
DC Supplies Product Note
Verify the exact MPN, input connection, output voltage, load capacity, rack dimensions, and battery requirements before ordering. Confirm stock status, warranty coverage, and included accessories with the seller.
