Detailed Specifications
Overview

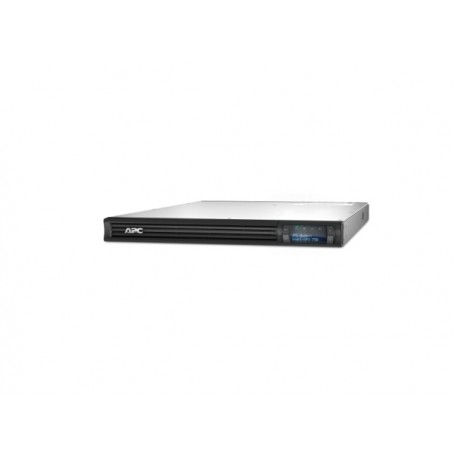

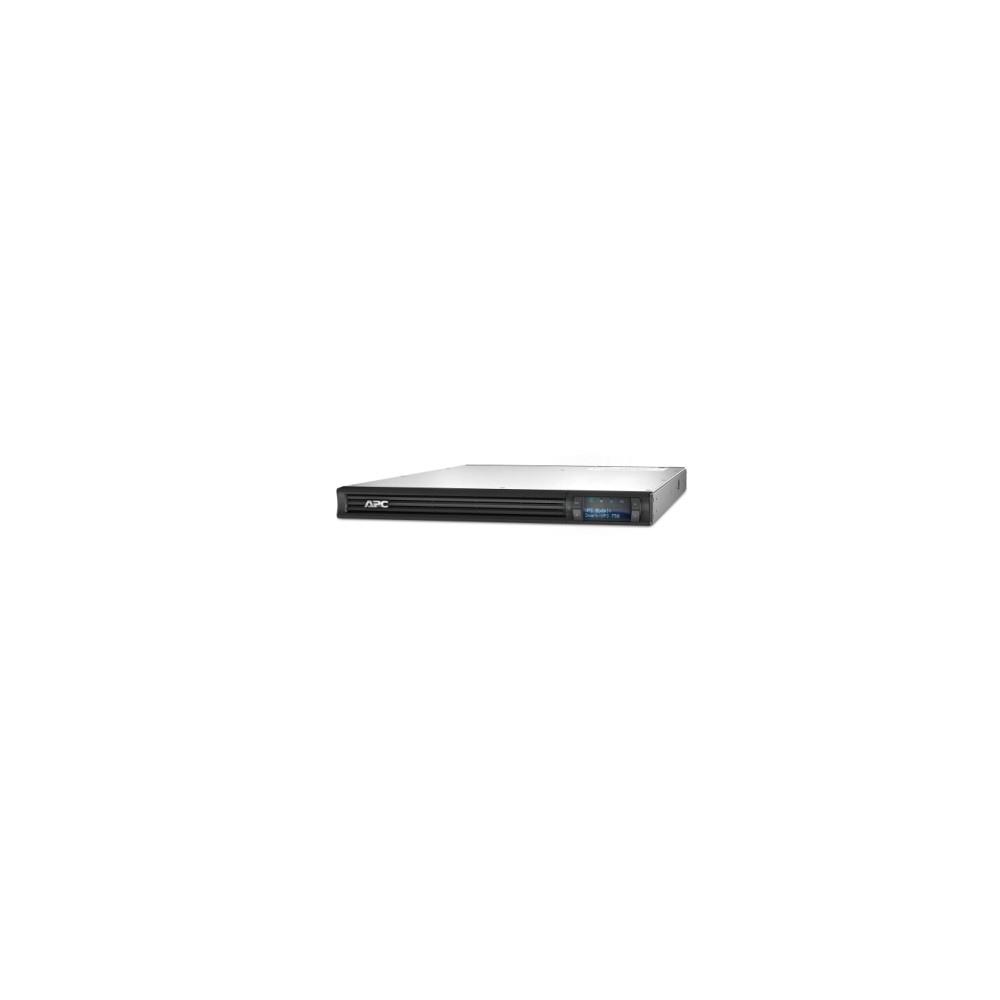

The APC SMT750RM1U Smart-UPS is a line-interactive uninterruptible power supply designed to provide backup power and voltage regulation for compatible IT and electronic equipment. It delivers 750VA / 600W capacity in a compact 1U short-depth rackmount chassis. The UPS includes an LCD status display, Automatic Voltage Regulation (AVR), sine-wave output, and four NEMA 5-15R outlets for compatible 120V equipment.
Key Features
- 750VA / 600W capacity: Supports compatible networking and IT equipment.
- 1U short-depth design: Helps save rack space in compact installations.
- LCD status display: Provides convenient access to UPS operating information.
- Automatic Voltage Regulation: Helps correct voltage fluctuations without unnecessarily using battery power.
- Sine-wave output: Provides sine-wave AC power when operating on battery.
- Four output outlets: Four NEMA 5-15R receptacles for compatible devices.
- USB and serial connectivity: Supports monitoring and controlled shutdown with compatible software.
- Replaceable battery: Uses a compatible APC replacement battery cartridge.
- SmartSlot: Supports compatible UPS management accessories.
Technical Specifications
| Specification | Details |
|---|
| Brand | APC by Schneider Electric |
| Part Number / MPN | SMT750RM1U |
| Product Type | Uninterruptible Power Supply (UPS) |
| Product Series | Smart-UPS |
| UPS Topology | Line-interactive |
| Rated Capacity | 750VA |
| Output Power | 600W |
| Input Voltage | 120V AC |
| Output Voltage | 120V AC |
| Input Connector | 1 × NEMA 5-15P |
| Output Connectors | 4 × NEMA 5-15R |
| Output Waveform | Sine wave |
| Voltage Regulation | Automatic Voltage Regulation (AVR), double boost and trim |
| Battery Type | Sealed lead-acid (VRLA) |
| Replacement Battery | APC APCRBC215 |
| Typical Recharge Time | 5 hours |
| Communication Interfaces | USB, serial, SmartSlot |
| Rack Height | 1U |
| Form Factor | Short-depth rackmount |
| Dimensions (H × W × D) | 1.73 × 17.01 × 19.76 inches |
| Net Weight | 34.83 lb (15.8 kg) |
Applications
- Network switches and routers
- Small business IT systems
- Compact server and network racks
- Telecommunications equipment
- Compatible business electronics requiring backup power
Compatibility and Installation
Confirm that connected equipment operates at 120V AC and that the total load does not exceed 600W / 750VA. The UPS uses a NEMA 5-15P input plug and provides four NEMA 5-15R output outlets. Verify rack depth, mounting clearance, and power requirements before installation. Use compatible USB or serial connections for monitoring and graceful shutdown. Select the manufacturer-specified replacement battery for servicing.
Frequently Asked Questions
What is the capacity of the APC SMT750RM1U?
It is rated at 750VA and 600W.
How many output outlets does it have?
It provides four NEMA 5-15R outlets.
Does it include voltage regulation?
Yes. It includes Automatic Voltage Regulation (AVR) to help manage input voltage fluctuations.
How much rack space does it require?
The UPS occupies 1U of rack space and has a short-depth design.
Can the UPS be monitored by a computer?
Yes. USB and serial communication support monitoring with compatible software.
What type of battery does it use?
It uses an internal sealed lead-acid battery. Confirm the exact compatible replacement cartridge before ordering.
DC Supplies Product Note
DC Supplies recommends verifying the exact model number, input voltage, connected load, rack dimensions, and battery compatibility before purchase. Warranty coverage and included accessories may vary by sales channel and region.
