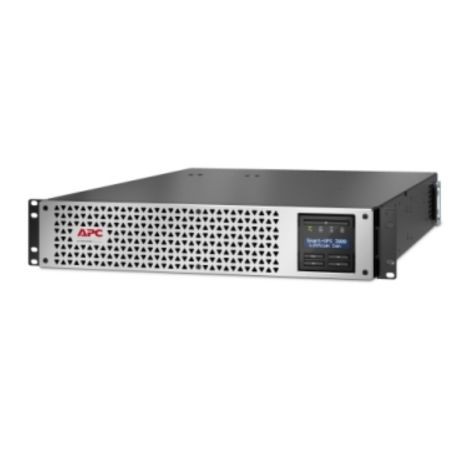

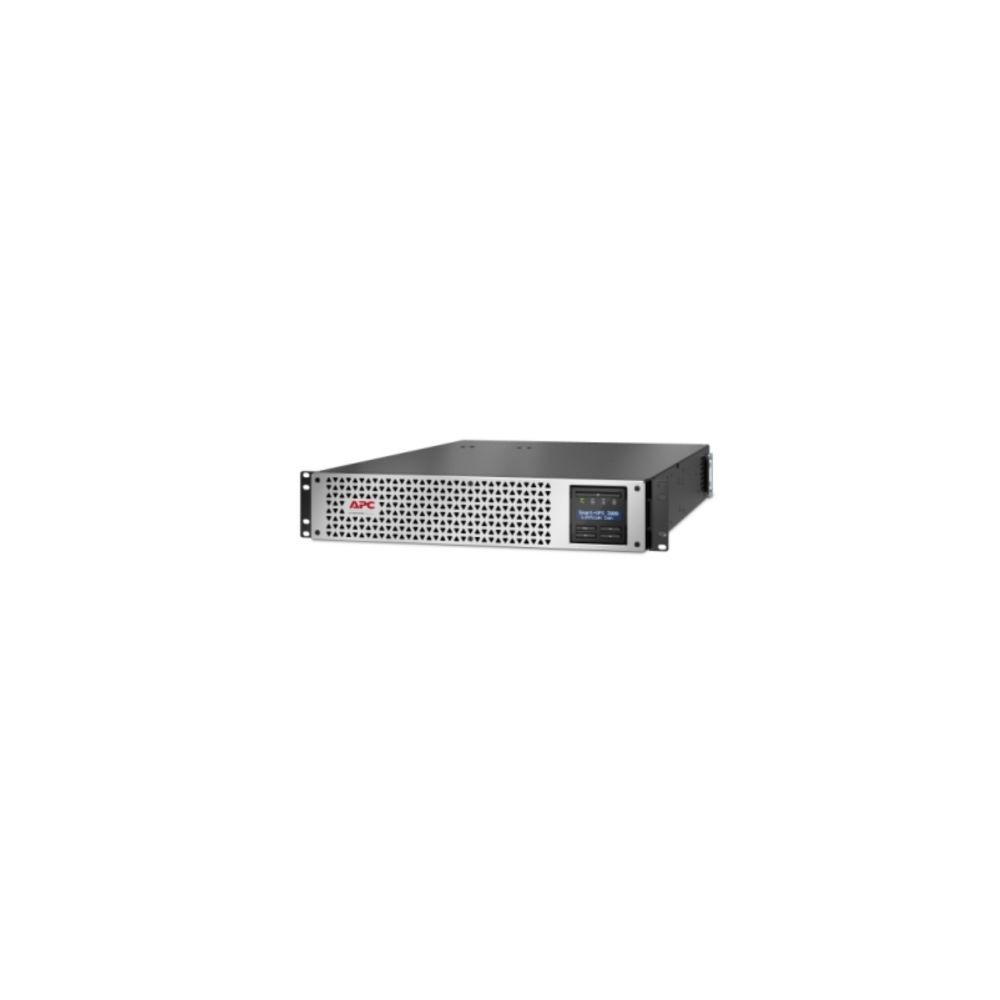

APC SMTL3KRM2UCLNC Smart-UPS 3kVA Lithium-Ion Rackmount UPS
The APC SMTL3KRM2UCLNC is a 3kVA Smart-UPS using line-interactive topology and a lithium-ion battery system. It provides 2880VA and 2700W of power in a 2U rackmount form factor for network infrastructure, edge environments, back-office equipment, and IDF/MDF installations.
Power Protection
The UPS provides pure sine-wave output and automatic voltage regulation (AVR). Its 120V design uses a NEMA L5-30P input connection and provides one NEMA L5-30R and six NEMA 5-20R output receptacles.
Monitoring and Management
The SMTL3KRM2UCLNC includes an LCD interface and a SmartConnect Ethernet port for cloud-based remote power monitoring. A network management card is preinstalled, and a one-year Secure Network Management Card subscription is included.
Key Features
- 2880VA / 2700W line-interactive UPS capacity
- Lithium-ion battery technology
- 2U rackmount form factor with pure sine-wave output
- SmartConnect Ethernet port and preinstalled network management card
- One NEMA L5-30R plus six NEMA 5-20R output receptacles
Applications
APC identifies the SMTL3KRM2UCLNC for small edge environments, back-office systems, network infrastructure, and IDF/MDF closets. The 2U rackmount format is suited to standard rack-based equipment deployments.
DC Supplies Product Note
The SMTL3KRM2UCLNC uses a lithium-ion battery rather than the lead-acid battery technology found in many traditional Smart-UPS models. APC also specifies cloud-based remote power monitoring through the SmartConnect Ethernet port and includes a one-year Secure Network Management Card subscription.
Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number / MPN | SMTL3KRM2UCLNC |
| Product Type | Uninterruptible Power Supply (UPS) |
| Product Family | Smart-UPS |
| Topology | Line Interactive |
| Rated Power | 2880VA |
| Power Rating | 2700W |
| Input Voltage | 120V |
| Output Voltage | 120V |
| Input Connection | NEMA L5-30P |
| Output Connections | 1 x NEMA L5-30R; 6 x NEMA 5-20R |
| Battery Type | Li-Ion (Lithium-Ion) |
| Waveform Type | Pure Sine Wave |
| Form Factor | Rackmount |
| Rack Height | 2U |
| SmartConnect | SmartConnect Ethernet Port |
| Network Management | Preinstalled Network Management Card |
| Display | LCD |
| Surge Energy Rating | 459J |
| Dimensions | 432 x 86 x 683 mm (17.01 x 3.39 x 26.89") |
| Net Weight | 34.22 kg (75.44 lb) |
| Replacement Battery | APCRBC174-LI |
FAQs
What is the APC SMTL3KRM2UCLNC?
It is a 3kVA APC Smart-UPS with lithium-ion batteries, line-interactive topology, and a 2U rackmount form factor.
How much power does the SMTL3KRM2UCLNC provide?
The UPS is rated at 2880VA and 2700W.
What outlets are available?
It provides one NEMA L5-30R outlet and six NEMA 5-20R outlets.
Does this UPS support remote monitoring?
Yes. The SMTL3KRM2UCLNC has a SmartConnect Ethernet port for cloud-based remote power monitoring and a preinstalled network management card.
What type of battery does it use?
The SMTL3KRM2UCLNC uses a lithium-ion battery system.
How much rack space does it occupy?
The UPS occupies 2U of rack space and measures 432 x 86 x 683 mm.
