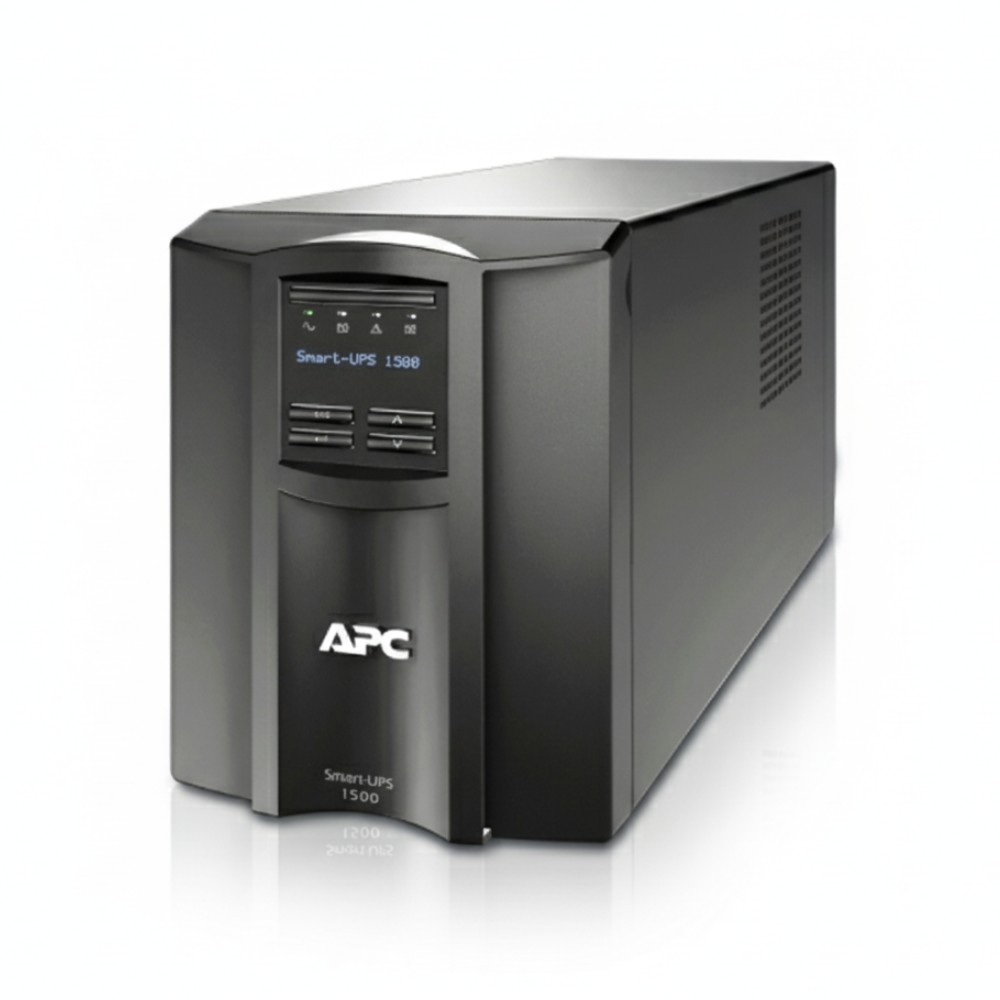

APC Smart-UPS 1.5kVA 120V Shipboard
The APC SMT1500X93 is a 1.5kVA, 120V Smart-UPS designed for shipboard applications. It uses line-interactive topology and provides 1440VA of rated power with a maximum configurable output of 1000W.
Power Protection
The UPS provides 120V input and output and uses a sine-wave output waveform. It includes automatic voltage regulation characteristics associated with its line-interactive design, with a typical transfer time of 6 ms and a maximum transfer time of 10 ms.
Monitoring and Connectivity
The SMT1500X93 features an LCD display for monitoring and management. Its control interface provides load and battery bar graphs along with indicators for online operation, battery operation, battery replacement, and overload conditions. USB compatibility is also specified.
Key Features
- 1440VA rated power capacity with 1000W maximum configurable power
- 120V input and 120V output
- Line-interactive topology with sine-wave output
- Eight NEMA 5-15R output receptacles
- Designed specifically for shipboard applications
Battery and Runtime
The UPS uses a lead-acid battery and provides a specified full-load runtime of approximately 5 minutes and half-load runtime of approximately 17 minutes. Typical battery recharge time is 3 hours, and the specified battery life is 3–5 years.
DC Supplies Product Note
The SMT1500X93 is the shipboard-specific 120V model in the APC Smart-UPS X93 range. Its 1440VA rating and 1000W maximum configurable power should be considered when matching the UPS to connected equipment. The unit is not rack-mountable according to the published technical specifications.
Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number / MPN | SMT1500X93 |
| Product Type | Uninterruptible Power Supply (UPS) |
| Product Family | Smart-UPS |
| Application | Shipboard |
| Rated Power | 1440VA |
| Maximum Configurable Power | 1000W |
| Input Voltage | 120V |
| Output Voltage | 120V |
| Topology | Line Interactive |
| Waveform Type | Sine wave |
| Input Plug | NEMA 5-15P |
| Output Receptacles | 8 x NEMA 5-15R |
| Battery Type | Lead-Acid |
| Full-Load Runtime | 5 minutes |
| Half-Load Runtime | 17 minutes |
| Typical Recharge Time | 3 hours |
| Transfer Time | 6 ms typical; 10 ms maximum |
| USB Compatible | Yes |
| Dimensions | 219 x 171 x 439 mm (8.62 x 6.73 x 17.28") |
| Net Weight | 24.6 kg (54.23 lb) |
| Operating Temperature | 0–40°C (32–104°F) |
| Operating Altitude | 0–3000 m (0–9842.52 ft) |
| Warranty | 3 years repair or replace, excluding battery; 2 years for battery |
FAQs
What is the APC SMT1500X93?
It is a 1.5kVA APC Smart-UPS designed for 120V shipboard applications.
How much power can the SMT1500X93 support?
The UPS is rated at 1440VA, with a maximum configurable power rating of 1000W.
How many output outlets does it have?
The SMT1500X93 provides eight NEMA 5-15R output receptacles.
What battery does the SMT1500X93 use?
It uses a lead-acid battery. The specified typical recharge time is 3 hours.
Is the SMT1500X93 rack-mountable?
No. The published technical specifications identify its mounting mode as not rack-mountable.
What is the runtime at full and half load?
The specified runtime is approximately 5 minutes at full load and 17 minutes at half load.
