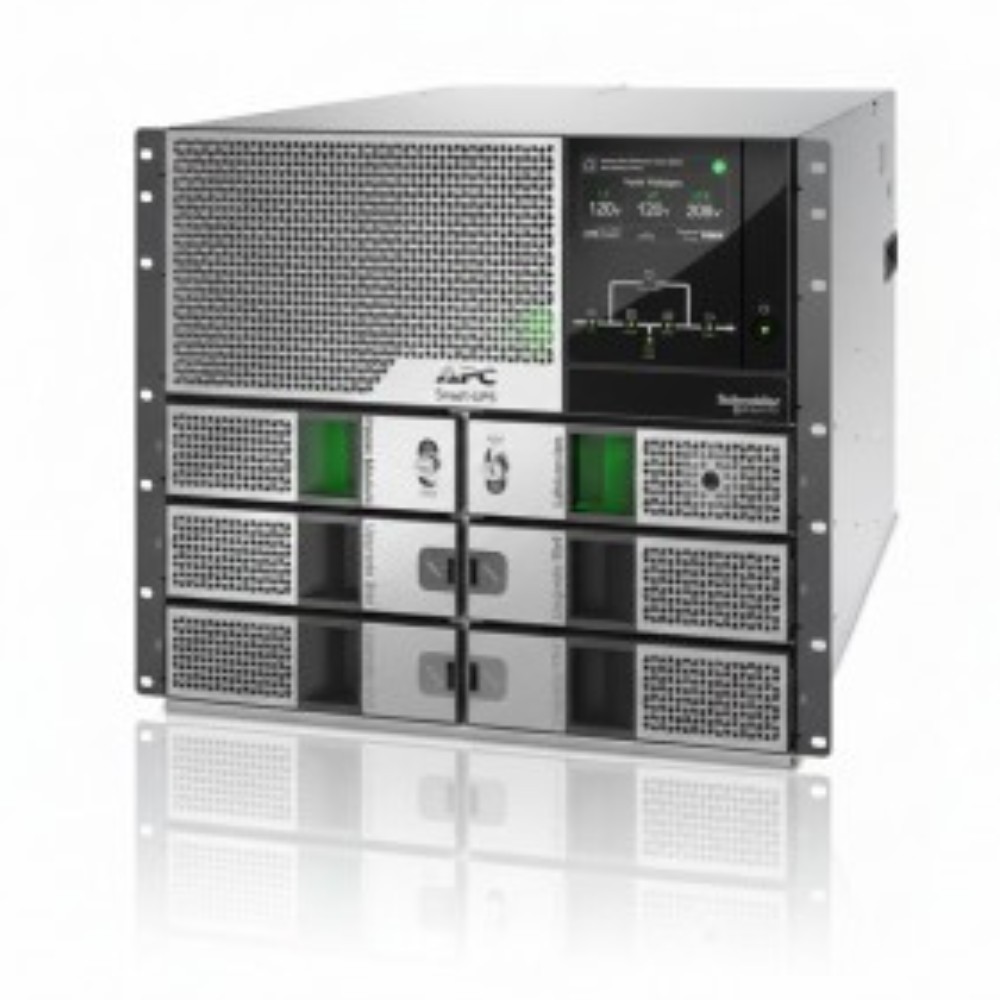

APC SRYL5K15RMXLT Smart UPS Ultra 5kW Modular UPS View larger

APC SRYL5K15RMXLT Smart UPS Ultra 5kW Modular UPS

SRYL5K15RMXLT

New

9U Modular On-Line UPS with Li-Ion Battery

×




Detailed Specifications

APC SRYL5K15RMXLT Smart-UPS Ultra 5kW Modular UPS

Overview :

The APC SRYL5K15RMXLT Smart-UPS Modular Ultra is an on-line uninterruptible power supply (UPS) engineered for high-density power protection in edge computing sites and medium-density data centers. It addresses the critical need for reliable, scalable power in a compact footprint, delivering 5kW of output in a 9U rack-mountable chassis. This system is designed to ensure business continuity for critical servers, storage, and network infrastructure by providing clean, consistent power. This UPS leverages next-generation semiconductor technology and a modular architecture to achieve 2.5 times the power density of comparable VRLA-based systems, making it significantly smaller and lighter. The core of its long-term value is the use of Lithium-ion batteries, which offer an operational life of up to 10 years×three times that of traditional batteries. This drastically reduces the total cost of ownership by minimizing battery replacement and associated maintenance costs over the unit's lifespan. Deployment is streamlined through a rack-mount design with an included rail kit. The modularity of the SRYL5K15RMXLT allows for seamless scalability; administrators can add power or battery modules to universal bays as demands increase, growing up to 15kW with N+1 redundancy. Management is handled through the integrated network management card, which connects to Schneider Electric's EcoStruxure IT platform for robust remote monitoring and control.

Key Features

  • High-density design is 50% smaller and 60% lighter
  • Lithium-ion battery provides up to 3x the life of VRLA
  • Scalable architecture from 5kW to 15kW with N+1 option
  • Embedded network card for simple remote IT management
  • Modular design allows for user-serviced components

Specifications

SpecificationValue
BrandAPC
Part NumberSRYL5K15RMXLT
Product TypeUninterruptible power supply (UPS)
Power Capacity5000 W / 5000 VA
Max Configurable Power15000 W
Nominal Input Voltage208 V, 240 V
Nominal Output Voltage120 V, 208 V, 240 V
TopologyOn-Line
Battery TypeLi-Ion (Lithium-Ion)
Form Factor9U Rackmount
Height15.35 inches
Width17.32 inches
Depth27.56 inches
Weight159.84 lbs
ManagementEmbedded Network Management Card
