Detailed Specifications

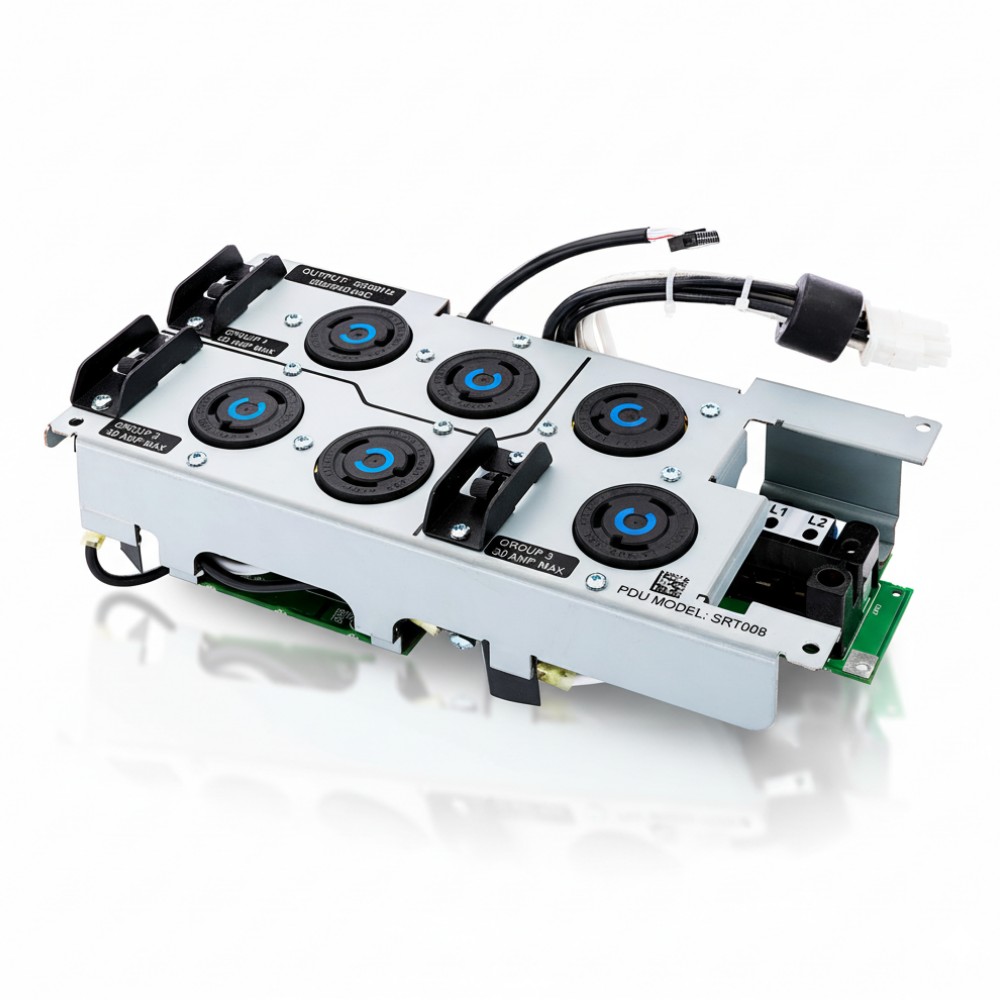

APC Smart-UPS SRT008 Power Distribution Unit (PDU) - 8 kVA / 10 kVA, 208 V
Overview
The APC SRT008 is a dedicated PDU module designed to work alongside APC Smart-UPS SRT systems rated at 8 kVA / 10 kVA. It provides six NEMA L6-30R power outlets to distribute conditioned power within a rack or cabinet environment. Built for data centers and high-density IT applications, it helps manage critical loads from a UPS stage to individual devices. As a companion accessory, it ensures clean power routing and load balancing without adding extra UPS capacity.
Key Features
Six NEMA L6-30R outlets for powering high-current equipment
Designed for 208 V environments to match Smart-UPS SRT bus voltage
Compact 6U form factor for integration into rack systems
Rear-mountable architecture for clean and secure installation
Lightweight design simplifies handling and deployment
Specifications
| Specification | Detail |
|---|
| Brand | APC (Schneider Electric) |
| Model / Part Number | SRT008 |
| Product Type | Power Distribution Unit (PDU) |
| Target UPS Capacity | 8 kVA / 10 kVA Smart-UPS SRT modules |
| Input Voltage | 208 V AC |
| Outlets | 6 × NEMA L6-30R |
| Rack Units (Height) | 6U |
| Dimensions (H × W × D) | 3.7″ × 5.3″ × 11.7″ |
| Height (mm) | 94 mm |
| Width (mm) | 135 mm |
| Depth (mm) | 298 mm |
| Net Weight | 4.81 lb (≈ 2.18 kg) |
| Mounting Location | Rear or rack-mount bezel |
| Warranty | 3 years (standard APC accessory warranty) |
| Compliance / Certifications | UL, RoHS, REACH (environmental compliance) |
| Use Case | Distribute UPS output to rack devices |
| Included Items | PDU module, installation instructions |
