Detailed Specifications

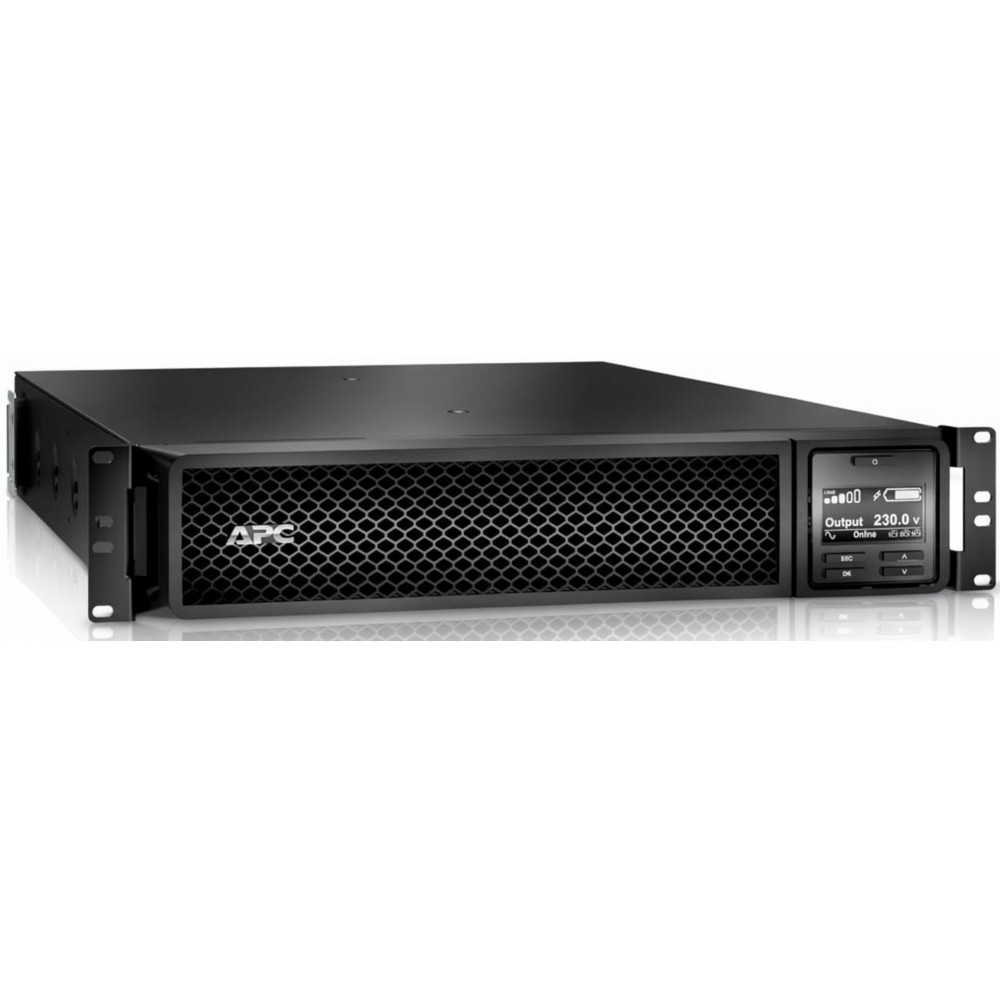

APC SRT3000RMXLI-NC - 3 kVA On-Line UPS, 2U Rackmount
Overview
The APC SRT3000RMXLI-NC is a double-conversion on-line UPS delivering 3 kVA / 2.7 kW of continuous power with pure sine wave output. It is engineered for server rooms, network closets, and mission-critical applications where zero transfer time is essential. Configurable for 220/230/240 V output, it supports extended runtime via external battery packs. Its 2U rackmount form factor, included rail kit, and integrated network management card make it suitable for dense IT deployments.
Key Features
Double-conversion on-line topology
Pure sine wave output for sensitive loads
Expandable runtime via external battery packs
Network management via preinstalled network card
Technical Specifications
| Attribute | Specification |
|---|
| Brand | APC by Schneider Electric |
| Part Number | SRT3000RMXLI-NC |
| Product Type | Double-conversion On-Line UPS |
| Power Capacity | 3 kVA / 2.7 kW |
| Nominal Output Voltage | 230 V (configurable to 220 / 240 V) |
| Output Waveform | Pure sine wave |
| Input Voltage Range | 100 - 275 V (adjustable) |
| Output Frequency | 50/60 Hz ±3 Hz (sync to mains) |
| Rack Units | 2U |
| Dimensions (H × W × D) | 85 mm × 432 mm × 635 mm |
| Net Weight | 31.3 kg |
| Battery Type | Valve-regulated lead-acid |
| Recharge Time | 3 hours |
| Outlets | 8 × IEC C13 + 2 × IEC C19 + 2 × IEC jumpers |
| Noise Level (typical) | 55 dBA |
