Detailed Specifications

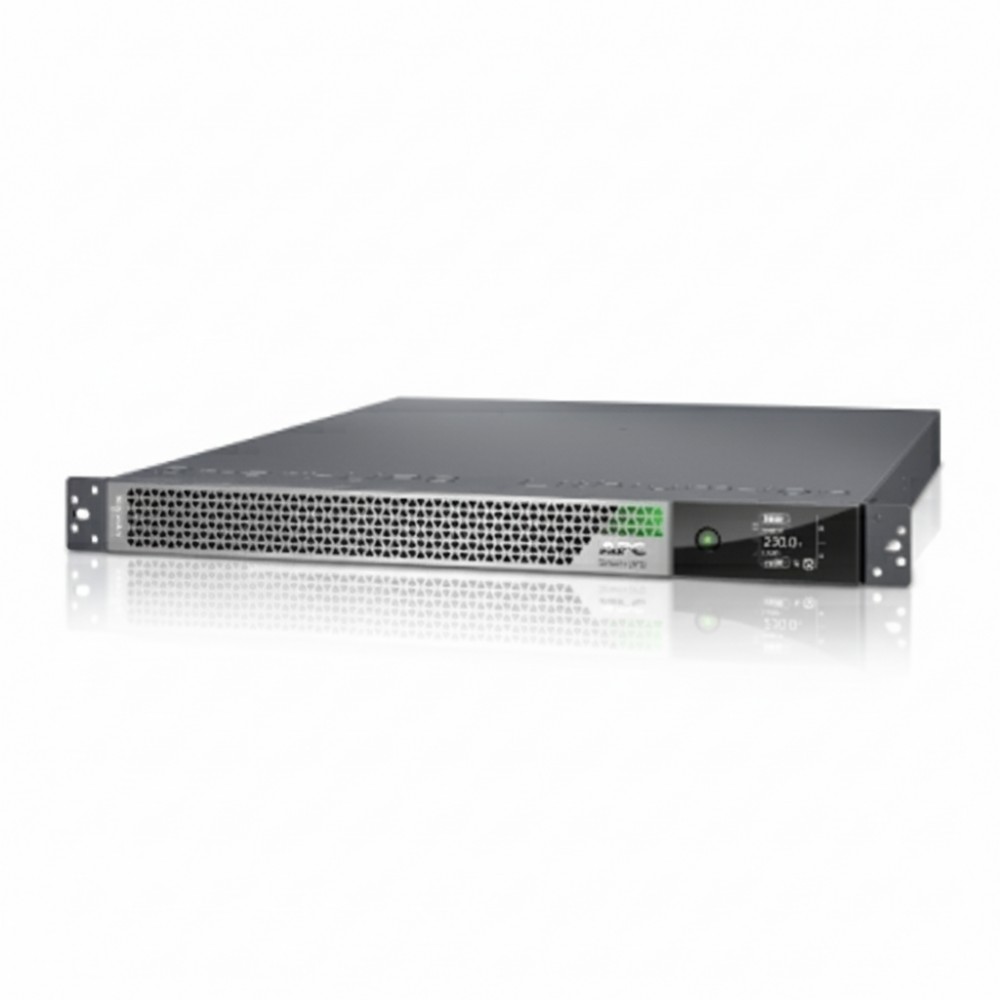

APC SRTL3KRM1UWNC - Smart-UPS Ultra 3000VA Rack/Tower 1U
Overview
The APC SRTL3KRM1UWNC is a high-performance 3kVA/3000W double-conversion on-line UPS designed to provide reliable power protection for mission-critical equipment. Operating at a nominal 208/230V, this UPS offers pure sine wave output, ensuring compatibility with sensitive electronic devices. Its compact 1U rackmount form factor allows for flexible deployment in various environments.
Key Features
Double-Conversion On-Line Technology: Delivers consistent, high-quality power by continuously converting incoming AC power to DC and then back to AC.
Pure Sine Wave Output: Ensures compatibility with sensitive electronic equipment.
Extended Runtime: Supports up to 5 external battery packs (SRTL50RMBP1U-Li) for extended runtime during power outages.
Rack/Tower Convertible: Includes a rail kit for easy conversion between rackmount and tower configurations.
Embedded Network Management Card: Allows for remote monitoring and management of the UPS.
Fast Recharge Time: Batteries recharge to 90% capacity in less than 1.5 hours.
Technical Specifications
| Attribute | Specification |
|---|
| Brand | APC by Schneider Electric |
| Part Number | SRTL3KRM1UWNC |
| Product Type | Rack/Tower UPS |
| Power Capacity | 3000VA / 3000W |
| Input Voltage | 208/230V |
| Output Voltage | 208/230V |
| Output Waveform | Pure Sine Wave |
| Form Factor | 1U Rackmount / Tower |
| Dimensions (H x W x D) | 44.5 mm x 438 mm x 711 mm |
| Weight | 16.3 kg (35.9 lbs) |
| Battery Chemistry | Lithium-Ion |
| Battery Size | 50V |
| Battery Energy | 1209.6 kJ |
| Backup Time at Full Load | 4.6 minutes |
| Backup Time at Half Load | 10 minutes |
| Recharge Time | Less than 1.5 hours |
| Outlets | 3 x IEC C13, 2 x IEC C19 |
| Communication Ports | USB, EPO, SmartSlot |
| Display | LCD |
| Warranty | 5 years (UPS and battery) |
