Detailed Specifications

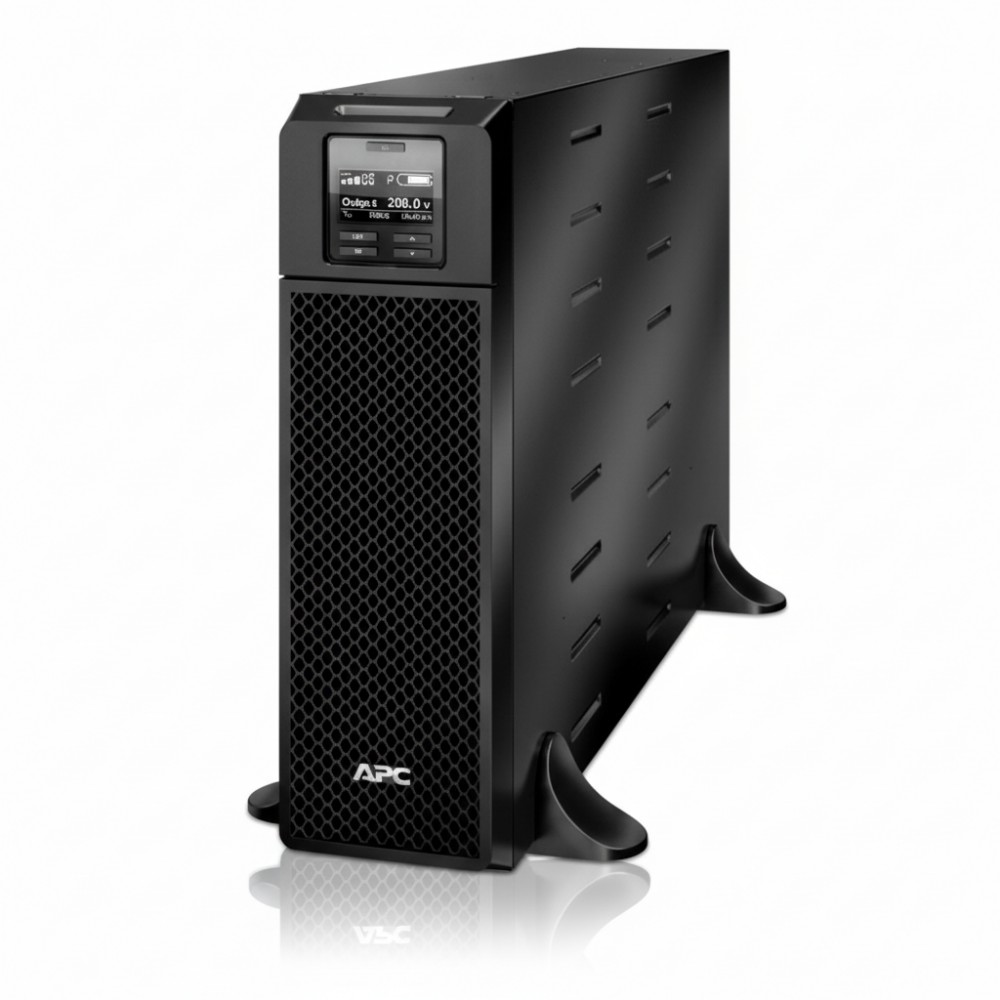

APC SRT5KXLTUS - Smart-UPS On-Line 5kVA 208V Tower UPS
Overview
The APC SRT5KXLTUS is a high-performance 5kVA/4800W double-conversion on-line UPS designed to provide reliable power protection for mission-critical equipment. Operating at a nominal 208V, this UPS offers pure sine wave output, ensuring compatibility with sensitive electronic devices. Its tower form factor allows for flexible deployment in various environments.
Key Features
Double-Conversion On-Line Technology: Delivers consistent, high-quality power by continuously converting incoming AC power to DC and then back to AC.
Pure Sine Wave Output: Ensures compatibility with sensitive electronic equipment.
Extended Runtime: Supports up to 10 external battery packs for extended runtime during power outages.
LCD Display: Provides real-time status updates and diagnostics.
SmartSlot: Allows for the installation of optional network management cards and other accessories.
TAA Compliant: Meets the requirements of the Trade Agreements Act, making it suitable for U.S. federal government use.
Technical Specifications
| Attribute | Specification |
|---|
| Brand | APC by Schneider Electric |
| Part Number | SRT5KXLTUS |
| Product Type | Tower UPS |
| Input Voltage | 208V |
| Output Voltage | 208V |
| Power Capacity | 5kVA / 4800W |
| Output Waveform | Pure Sine Wave |
| Form Factor | Tower |
| Dimensions (H x W x D) | 432 mm x 130 mm x 719 mm |
| Weight | 55.79 kg (123 lbs) |
| Battery Type | Sealed Lead-Acid |
| Battery Runtime at Full Load | Approximately 3 minutes 27 seconds |
| Communication Ports | USB, Serial, SmartSlot |
| Warranty | 3 years |
