Detailed Specifications

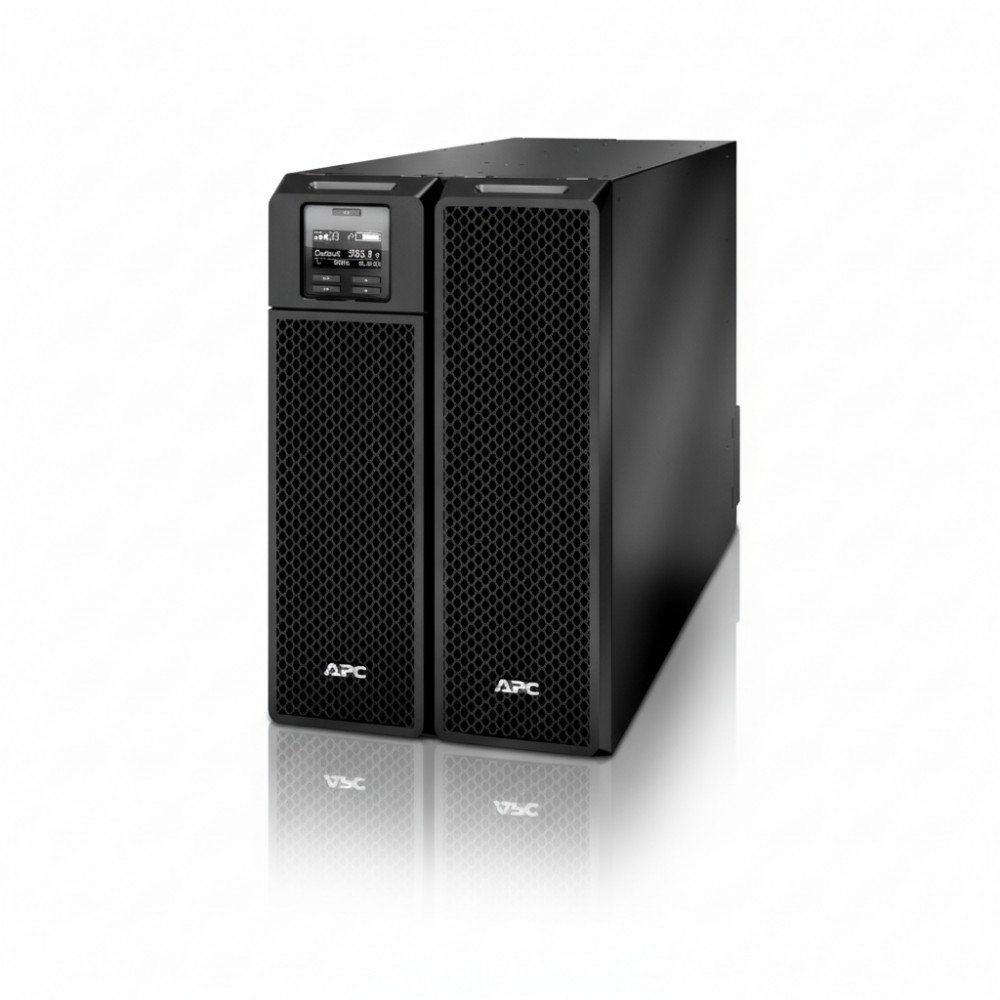

APC SRT8KXLT Smart-UPS On-Line 8kVA/8kW Tower UPS
Overview
The APC SRT8KXLT is an 8,000VA / 8,000W double-conversion on-line UPS designed to provide high-density, true double-conversion on-line power protection for servers, voice/data networks, medical labs, and light industrial applications. It offers pure sine wave output, extended runtime, and flexible installation options, making it suitable for critical electronics during power disruptions.
Key Features
Power Capacity: 8,000VA / 8,000W
Input Voltage: 208V AC (configurable 200V-240V)
Output Voltage: 208V AC
Waveform Type: Pure Sine Wave
Topology: Double-Conversion On-Line
Outlets: 1 x Hard Wire 3-wire (2PH + G), 4 x NEMA L6-20R, 2 x NEMA L6-30R
Form Factor: Rack/Tower Convertible (6U)
Communication Ports: Ethernet, USB, Serial, SmartSlot
Network Management Card: Included
Extended Runtime: Supports up to 10 external battery packs (SRT192BP2)
Efficiency: Up to 98.9% at 100% load
Warranty: 3 years
Technical Specifications
| Attribute | Specification |
|---|
| Brand | APC by Schneider Electric |
| Model | SRT8KXLT |
| Product Type | On-Line Double-Conversion UPS |
| Power Capacity | 8,000VA / 8,000W |
| Input Voltage | 208V AC (200V-240V) |
| Output Voltage | 208V AC |
| Waveform Type | Pure Sine Wave |
| Topology | Double-Conversion On-Line |
| Outlets | 1 x Hard Wire 3-wire (2PH + G), 4 x NEMA L6-20R, 2 x NEMA L6-30R |
| Form Factor | Rack/Tower Convertible (6U) |
| Communication Ports | Ethernet, USB, Serial, SmartSlot |
| Network Management Card | Yes |
| Extended Runtime | Supports up to 10 external battery packs (SRT192BP2) |
| Efficiency | Up to 98.9% at 100% load |
| Warranty | 3 years |
