Detailed Specifications

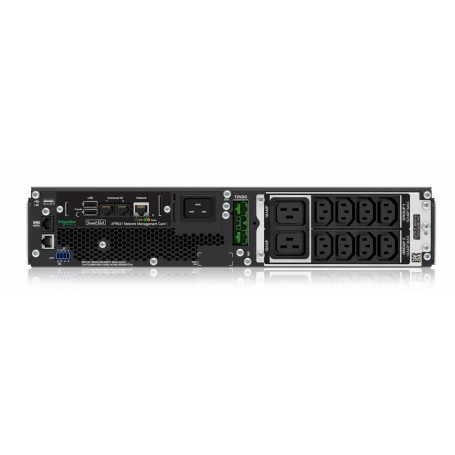

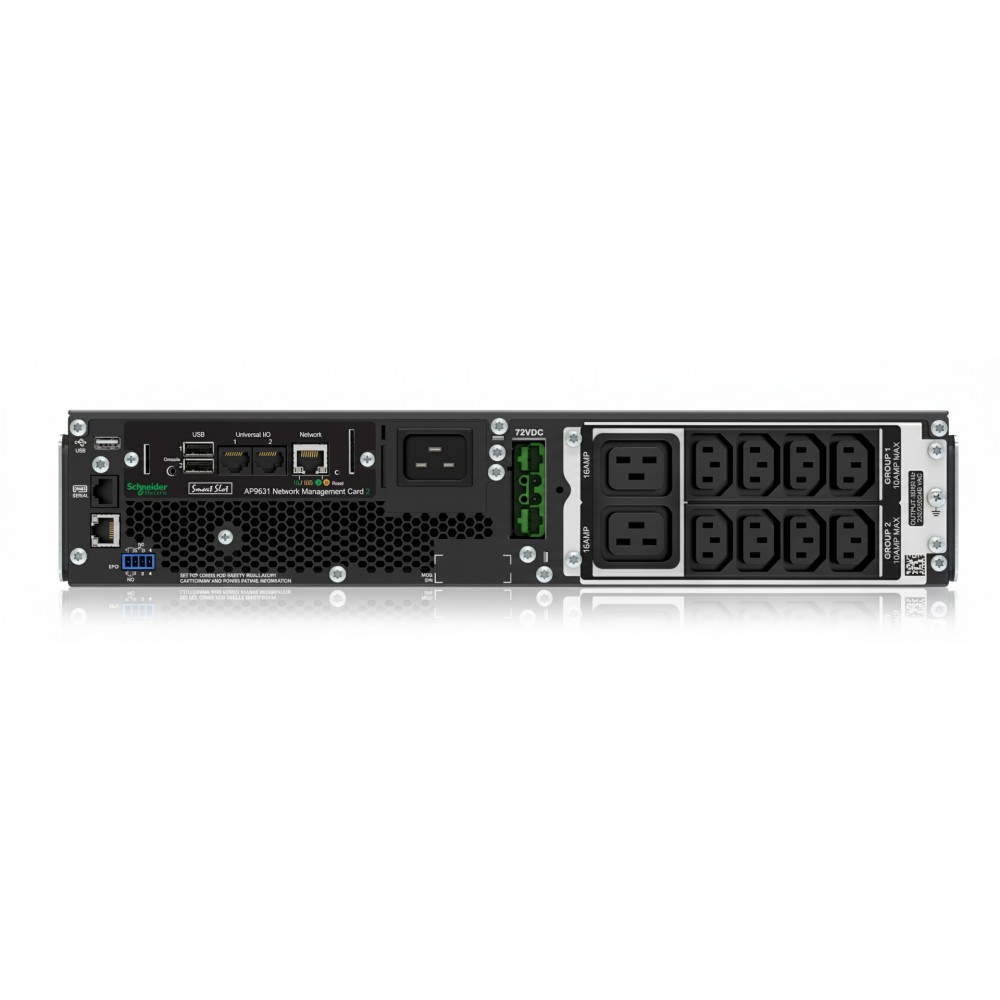

APC SRT2200RMXLI 2.2 kVA Double-Conversion On-Line UPS
Overview
The APC SRT2200RMXLI is a 2.2 kVA (1.98 kW) double-conversion on-line UPS designed for mission-critical IT infrastructure. It provides continuous, clean, and reliable power to servers, networking equipment, and storage systems. With a 2U rackmount form factor, it offers flexible deployment options and is ideal for environments requiring zero transfer time and high availability.
Key Features
Double-Conversion On-Line Topology: Ensures zero transfer time and provides pure sine wave output, protecting sensitive equipment from all power disturbances.
Rack/Tower Convertible: Includes a rail kit for 2U rackmount installation; can also be deployed in tower configuration.
LCD Display: Provides real-time status updates, including output voltage, input voltage, output frequency, runtime, load, and battery health.
SmartSlot Expansion: Allows for the addition of network management cards for remote monitoring and control.
Extended Runtime Capability: Supports external battery packs to extend backup time during prolonged outages.
Technical Specifications
| Attribute | Specification |
|---|
| Model | SRT2200RMXLI |
| Topology | Double-conversion on-line |
| Apparent Power | 2.2 kVA |
| Real Power | 1.98 kW |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Output Waveform | Pure sine wave |
| Output Frequency | 50/60 Hz ± 3 Hz (sync to mains) |
| Number of Outlets | 8 × IEC C13, 2 × IEC C19 |
| Form Factor | 2U rackmount |
| Dimensions (HxWxD) | 85 mm × 432 mm × 584 mm |
| Weight | 25 kg |
| Battery Type | Sealed lead-acid (VRLA) |
| Recharge Time | 3 hours |
| Operating Temperature | 0-40 °C |
| Warranty | 3 years (UPS), 2 years (battery) |
