Detailed Specifications

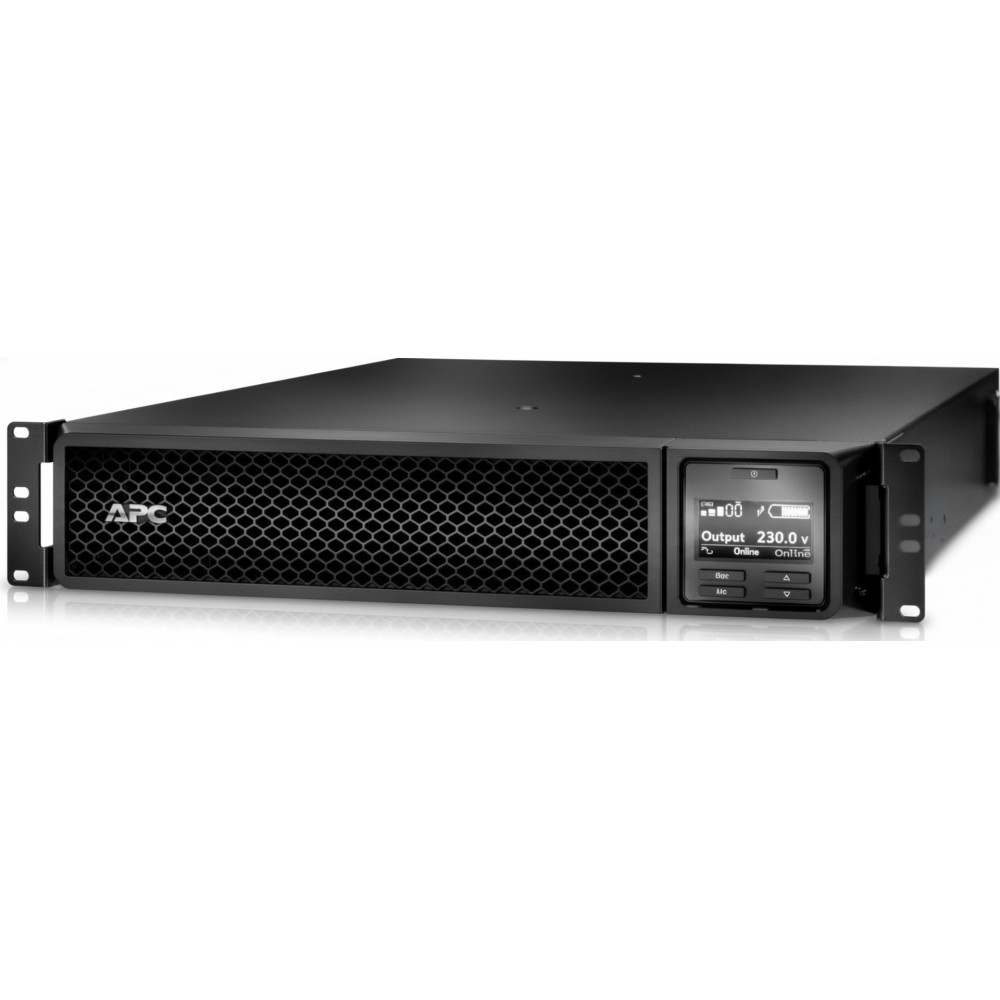

APC SRT2200RMXLI-NC Smart-UPS 2.2 kVA On-Line
Overview
The APC SRT2200RMXLI-NC is a rackmount 2U, double-conversion UPS rated for 2.2 kVA / 1.98 kW output. It is used in server, network, and storage installations where continuous power with zero switching time is needed. The unit includes a preinstalled network management card and supports extended runtime via external battery modules. Its design allows rack or tower deployment, making it suitable for data centers, branch IT closets, and core networking racks.
Key Features
Pure sine double-conversion with zero transfer
8 IEC C13 + 2 IEC C19 output outlets
Rack/tower convertible (2U form factor)
Preinstalled network management card
Expandable runtime via up to 10 battery packs
Technical Specifications
| Attribute | Specification |
|---|
| Brand | APC by Schneider Electric |
| Part Number | SRT2200RMXLI-NC |
| Product Type | On-line UPS (rack/tower) |
| Apparent Power | 2,200 VA |
| Real Power | 1,980 W |
| Input Voltage Range | 100 - 275 V (adjustable) |
| Output Voltage | 230 V AC |
| Output Waveform | Pure sine wave |
| Output Frequency | 50 / 60 Hz ± 3 Hz (sync to mains) |
| Number of Outlets | 8 × IEC C13 + 2 × IEC C19 |
| Battery Type | Sealed lead-acid (hot-swappable) |
| Battery Voltage | 72 V |
| Recharge Time | 3 hours typical |
| Dimensions (HxWxD) | 85 mm × 432 mm × 584 mm |
| Net Weight | 25 kg |
| Operating Temperature | 0 °C to 40 °C |
| Warranty | 3 years (UPS) |
