Detailed Specifications

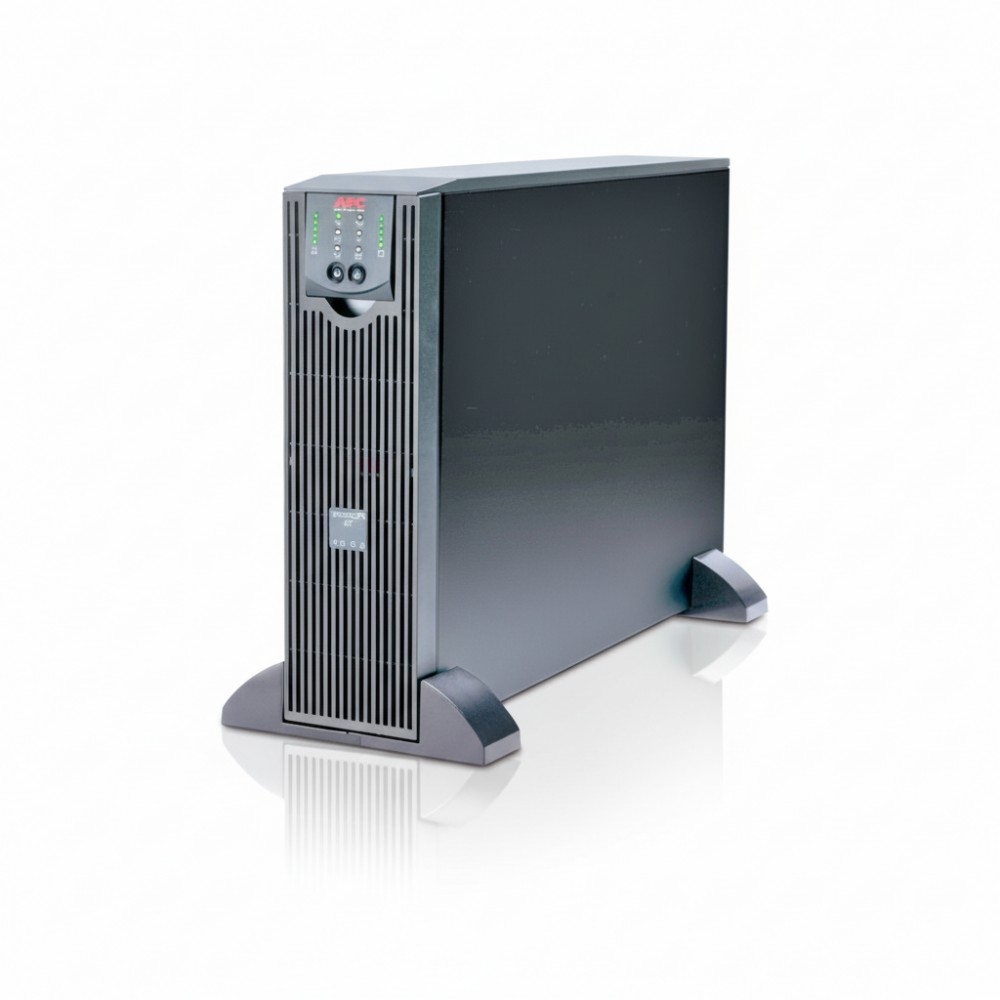

APC SURTA3000XL Smart-UPS RT 3 kVA On-Line UPS (120 V)
Overview
The APC SURTA3000XL is a double-conversion on-line UPS rated at 3 kVA / 2,100 W, intended to protect servers, networking, and critical infrastructure against power faults. It is built for IT environments demanding continuous power with zero-switching time. The unit supports rack or tower mounting (3U when racked) and accommodates runtime extension via external battery packs. It integrates with APC's SmartSlot expansion and monitoring systems to allow remote management, diagnostics, and orderly shutdown.
Key Features
Double-conversion on-line topology, zero transfer time
Rack/tower convertible (3U rack form)
Hot-swappable battery modules
SmartSlot expansion for network management
Dual NEMA 5-15R and 5-20R battery backup outlets
Technical Specifications
| Attribute | Specification |
|---|
| Brand | APC by Schneider Electric |
| Part Number | SURTA3000XL |
| Product Type | On-Line UPS (RT) |
| Apparent Power | 3,000 VA |
| Real Power | 2,100 W |
| Nominal Output Voltage | 120 V |
| Output Voltage Distortion | < 3 % |
| Input Voltage Nominal | 120 V |
| Input Voltage Range | 90 - 150 V |
| Input Frequency | 50 / 60 Hz ± 5 Hz |
| Output Frequency | 50 / 60 Hz ± 3 Hz (sync to mains) |
| Number of Outlets | 8 total (6 × NEMA 5-15R, 2 × NEMA 5-20R) |
| Input Plug | NEMA L5-30P |
| Cord Length | 2.44 m |
| Dimensions (H × W × D) | 432 mm × 130 mm × 660 mm |
| Net Weight | 54.5 kg |
| Warranty | 2 years (repair or replace) |
