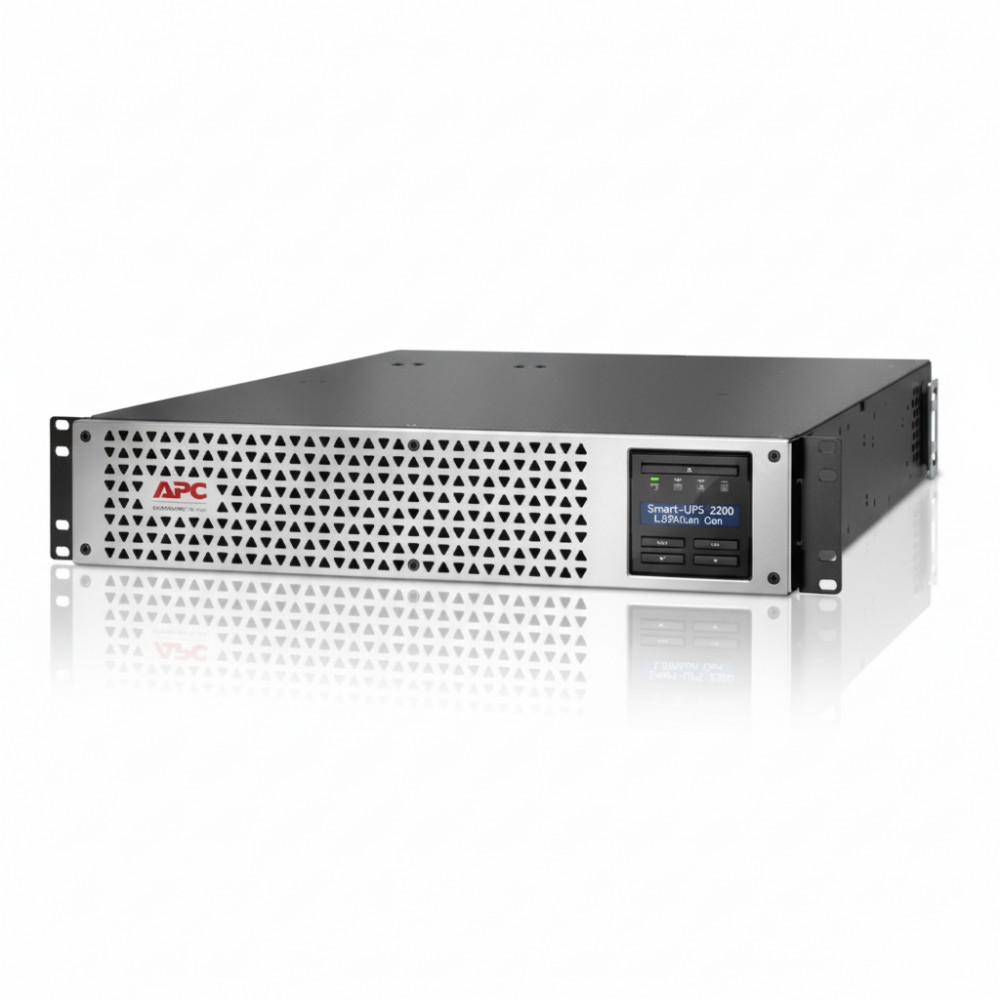

APC SMTL2200RM2UCNC 2200 VA Lithium-Ion UPS 120 V
Overview :
The APC SMTL2200RM2UCNC is a line-interactive uninterruptible power supply (UPS) engineered to deliver conditioned AC power and short-duration backup to critical IT equipment. It is typically deployed by network engineers and data-centre technicians to protect servers, storage arrays, networking gear, VoIP/UC systems, and edge compute hardware against power sags, surges, brownouts, and outages in 120 V single-phase power systems. The unit uses Automatic Voltage Regulation (AVR) to correct input voltage irregularities without activating the battery when possible.
Rated at 2200 VA / ~1920 W, this UPS delivers a pure sine-wave output and integrates a lithium-ion battery with an extended service life compared to traditional lead-acid designs, reducing maintenance and battery replacement frequency during its lifetime. Cloud-based remote monitoring via a SmartConnect Ethernet port and a pre-installed Network Management Card (NMC) enables remote UPS status tracking, alerts, and integration with centralized platforms such as APC EcoStruxure IT or third-party SNMP managers.
The chassis is a 2U rackmount form factor with included rails, fitting standard 19″ racks. Its compact depth is beneficial in IDF/MDF closets, small data rooms, and edge enclosures where space and cable management are priorities. Local status is presented on a multi-function LCD with audible alerts for line and battery events.
Typical runtime supports orderly shutdown or generator transfer during outages. Internal lithium-ion technology also enables faster recharge (≈ 2 hours) and longer lifecycle expectancy compared to VRLA batteries, lowering total cost of ownership.
This UPS is not appropriate for 208 V or 230 V mains distributions without a model variant engineered for those voltages, nor is it intended to run continuously for extended hours without external expansion solutions.
Key Features
• 2200 VA / ~1920 W line-interactive UPS capacity
• Pure sine-wave output for sensitive IT loads
• Lithium-ion battery with extended service life
• SmartConnect cloud monitoring via Ethernet port
• Pre-installed Network Management Card (NMC)
Specifications
| Parameter | Specification |
|---|
| Brand | APC by Schneider Electric |
| Part Number | SMTL2200RM2UCNC |
| Product Type | Line-interactive UPS |
| Power Capacity | 2200 VA / ~1920 W |
| Topology | Line-interactive with AVR |
| Nominal Input Voltage | 120 V AC (110-125 V) |
| Nominal Output Voltage | 120 V AC |
| Input Connector | NEMA 5-20P |
| Output Connectors | 2× NEMA 5-20R, 6× NEMA 5-15R |
| Output Waveform | Pure sine wave |
| Frequency | 50/60 Hz auto-sensing |
| Transfer Time | ~6 ms typical (≤ 10 ms max) |
| Battery Type | Lithium-ion (Li-ion) |
| Battery Recharge Time | ~2 hours |
| Communications | SmartConnect Ethernet, USB, Serial, EPO, NMC |
| Rack Height | 2 U |
| Dimensions (HxWxD) | 3.39″ × 17.01″ × 26.89″ (~86 × 432 × 683 mm) |
| Weight | ~70.3 lb (31.9 kg) |
| Operating Temp | 0-40 °C |
| Operating Humidity | 0-95% non-condensing |
| Certifications | ENERGY STAR V2.0, cULus, RoHS |
| Warranty | 5 years (UPS + battery) |
