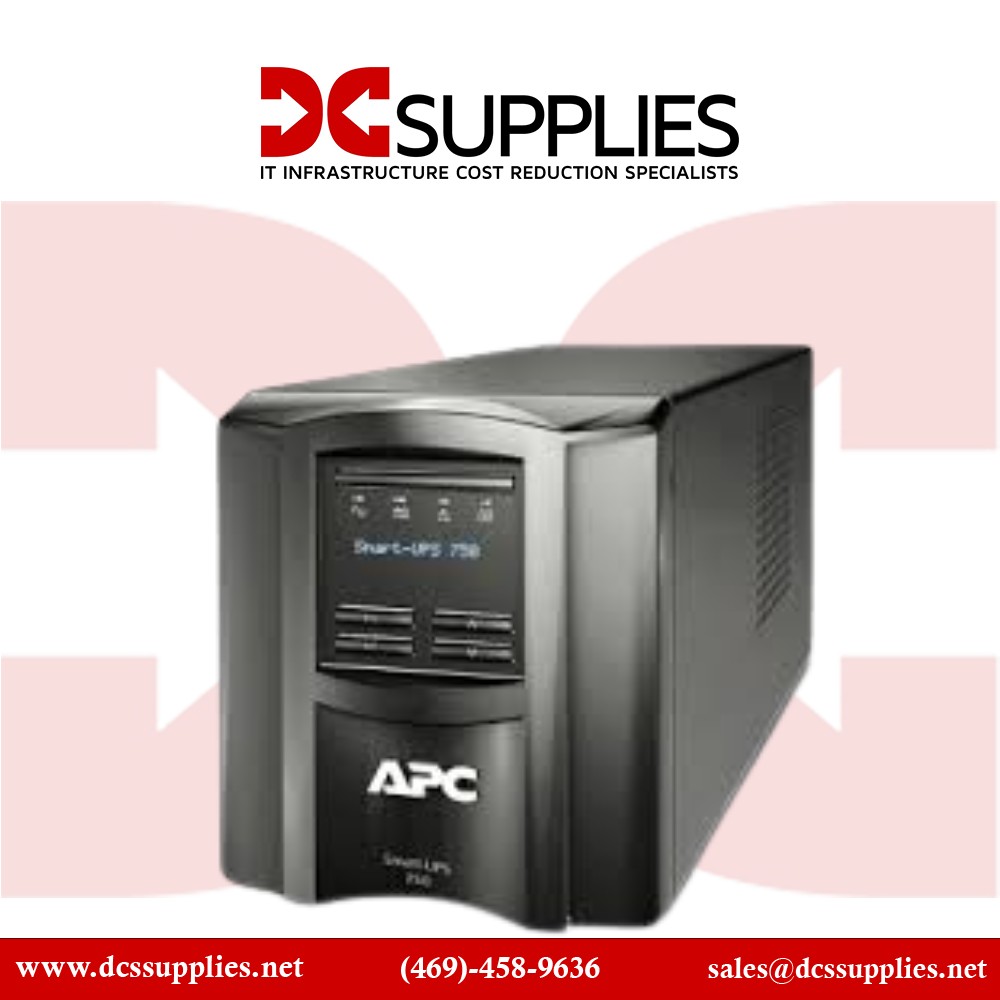

APC SMT750IC 750VA Line-Interactive Tower UPS
Overview
The APC SMT750IC is a tower-form-factor uninterruptible power supply designed to provide battery-backed power and voltage regulation for small IT and network infrastructure. It is typically deployed by administrators protecting network switches, routers, storage devices, and single-server systems from power outages and voltage instability. The UPS maintains stable output power during utility disturbances and provides sufficient runtime for controlled shutdown procedures or short-duration power interruptions.
This system delivers 750VA / 500W output capacity using a line-interactive topology with pure sine wave output. The UPS incorporates Automatic Voltage Regulation (AVR) to correct input voltage fluctuations without switching to battery operation, helping extend battery service life during common electrical conditions. It operates within 220-240V power environments and provides IEC-based connectivity using a C14 input connector and multiple IEC C13 output receptacles for IT equipment.
The unit is designed for deployment in environments where rack installation is not required or space constraints favor a compact floor or desktop placement. Common installation locations include branch office IT closets, workstation clusters, retail network cabinets, and small edge compute installations. Its tower form factor allows flexible placement near protected equipment while maintaining proper airflow and service access.
Operational visibility is provided through a front-panel LCD console that displays system status, load levels, battery condition, and alarms. Connectivity options include USB communication and a SmartSlot interface for optional network management modules. The UPS also includes a SmartConnect Ethernet interface that enables remote monitoring and alerting through centralized infrastructure management platforms.
A typical deployment includes a small infrastructure setup consisting of a firewall appliance, an access switch, and a small storage appliance. In this configuration, the UPS maintains stable AC output during voltage sags or brief outages and provides runtime to allow automated shutdown of connected systems.
This UPS is not designed for rack-dense data center installations or environments requiring high-capacity power protection. Deployments requiring multi-kilowatt protection, extended runtime battery systems, or rack-mounted power infrastructure typically require larger rack-mount UPS platforms.
Key Features
• 750VA / 500W line-interactive UPS power capacity
• Pure sine wave output for modern IT equipment
• Automatic Voltage Regulation stabilizes utility power
• Six IEC C13 battery-backed output connections

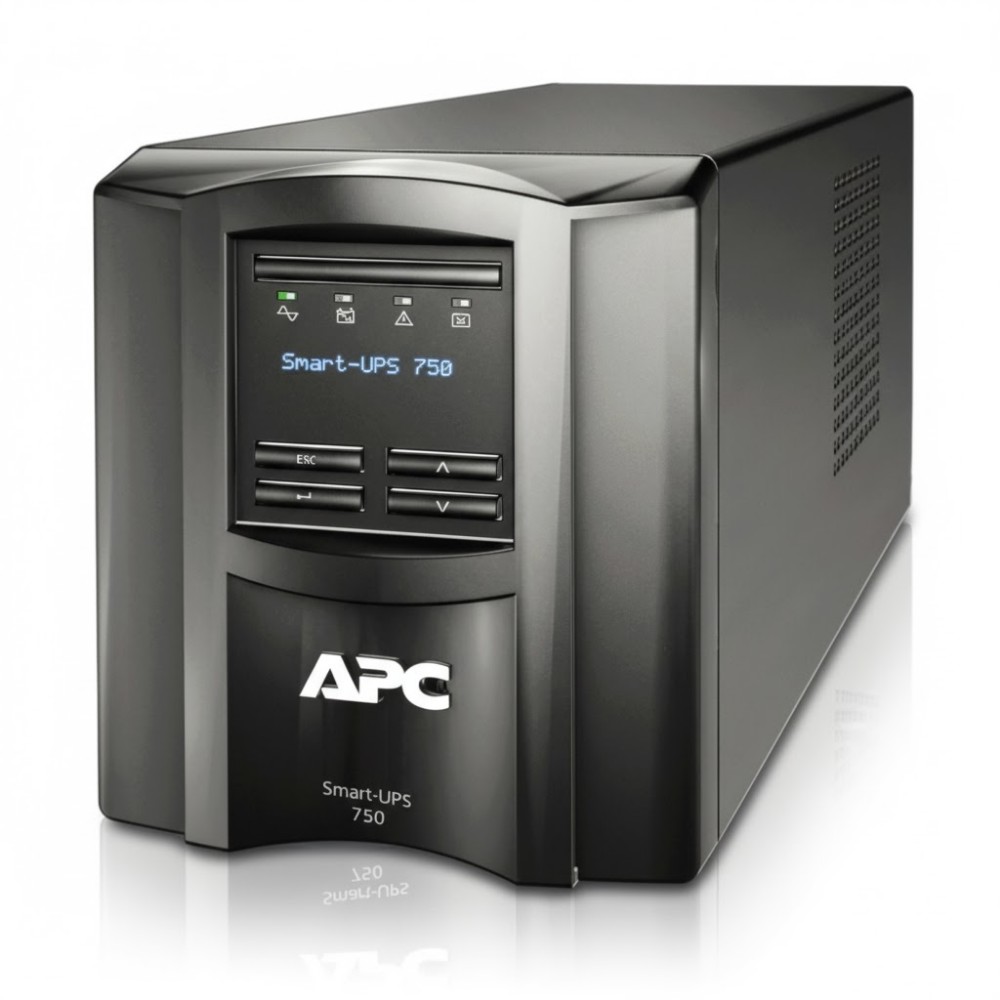

• LCD console with operational status monitoring
Technical Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number | SMT750IC |
| Product Type | Line-Interactive Tower UPS |
| UPS Topology | Line-Interactive |
| Power Capacity | 750VA / 500W |
| Nominal Input Voltage | 220-240V AC |
| Input Voltage Range | 151-302V AC |
| Nominal Output Voltage | 230V AC |

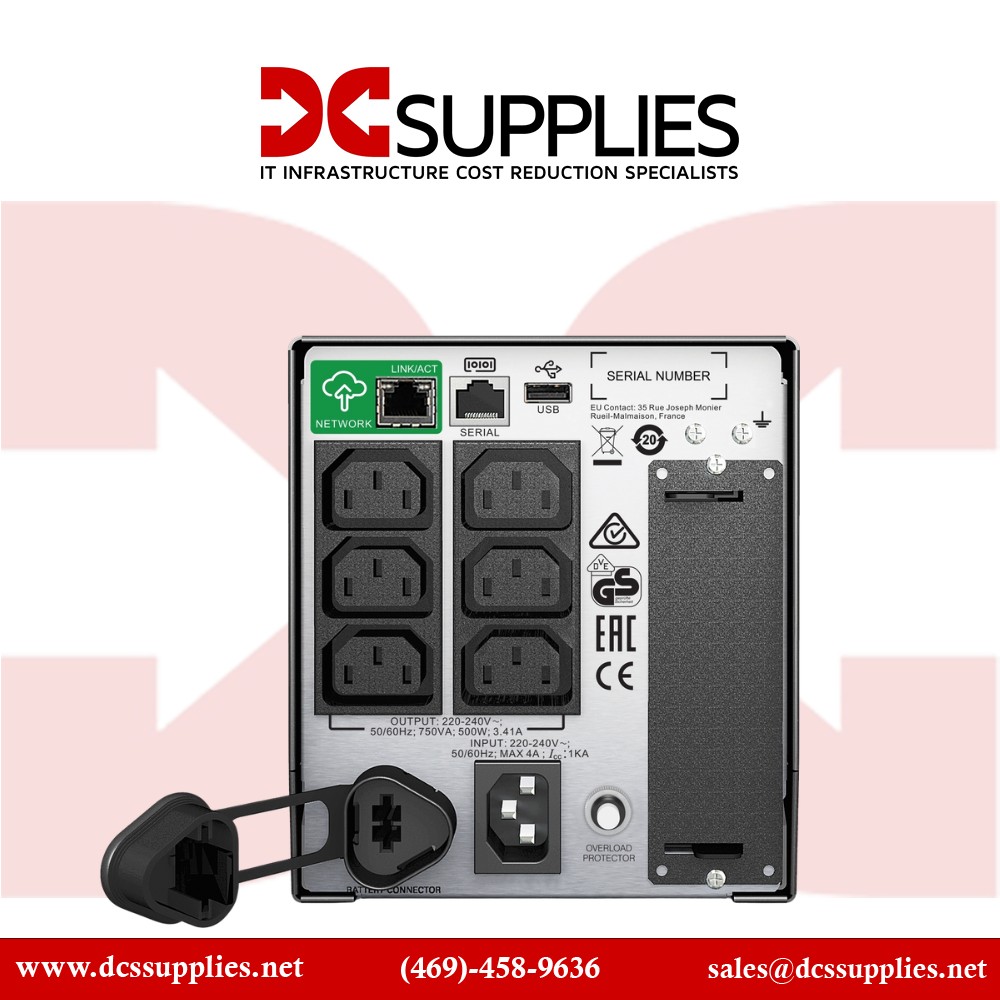

| Input Connector | IEC 60320 C14 |
| Output Receptacles | 6 × IEC 60320 C13 |
| Output Waveform | Pure Sine Wave |
| Transfer Time | 6 ms typical, 10 ms maximum |
| Surge Energy Rating | 540 Joules |
| Battery Type | Sealed Lead-Acid |
| Typical Recharge Time | ~3 hours |
| Form Factor | Tower |
| Dimensions (H × W × D) | 6.18 × 5.43 × 14.53 in |
| Weight | 26.0 lb |
| Operating Temperature | 0-40 °C |
