Overview

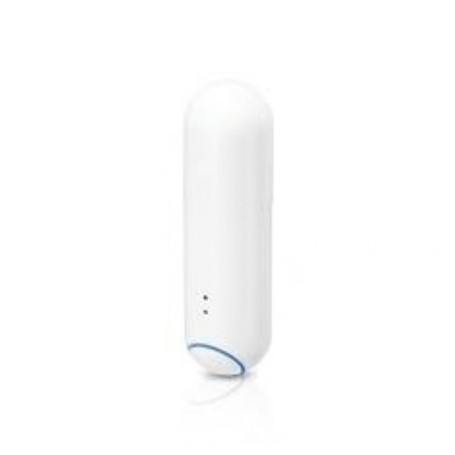

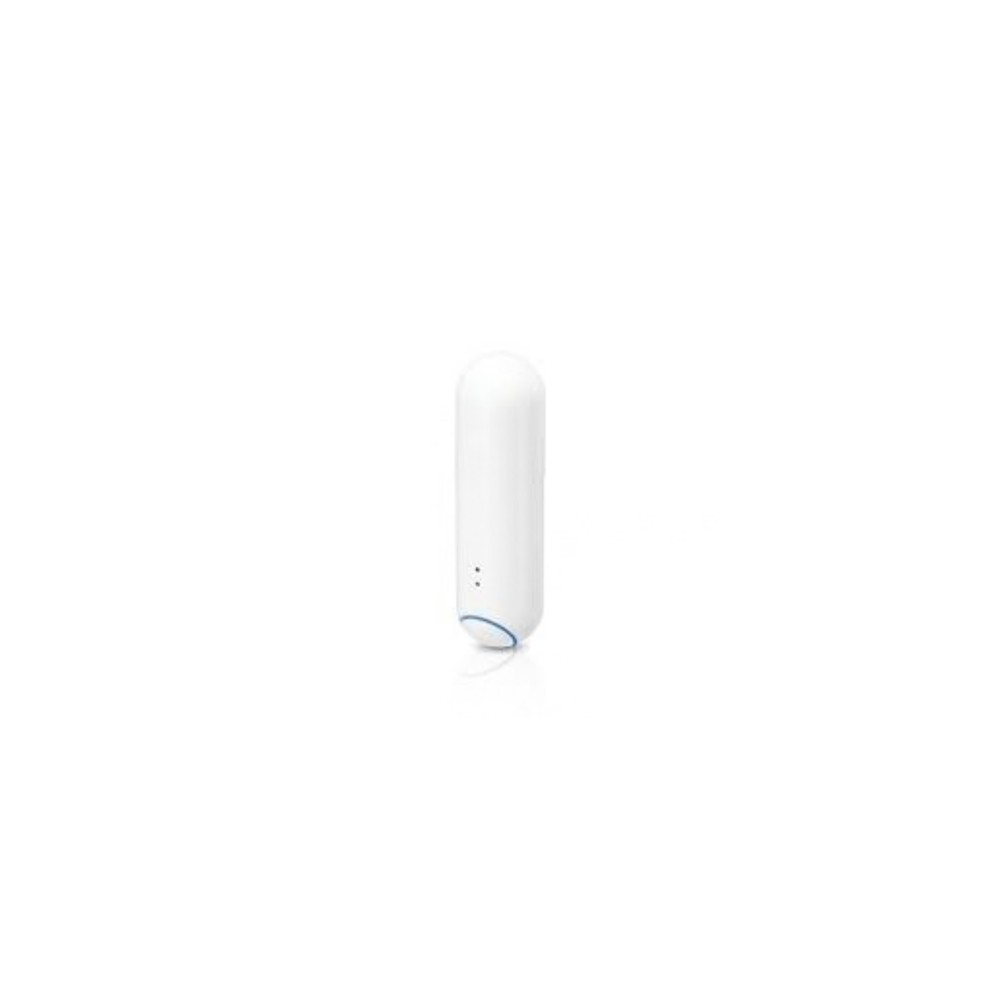

The Ubiquiti UP-SENSE-3 is a three-pack of UniFi Protect All-In-One Sensors designed to monitor motion, door and window activity, garage doors, environmental conditions, ambient light, alarm sounds, and water. Each sensor operates on a CR123A lithium battery and communicates through Bluetooth Low Energy (BLE).
UP-Sense units integrate with UniFi Protect and can connect through a compatible UniFi SuperLink or Bluetooth-enabled UniFi Access Point. This allows sensor events and environmental readings to be monitored and managed through the UniFi Protect web application or mobile app.
Sensor Functions
Each UP-Sense combines several detection functions in one compact enclosure. The motion sensor detects movement at distances up to 5 m (16 ft). A magnetic entry sensor detects door or window open/close activity, while an accelerometer can detect garage door open/close movement.
The sensor also monitors temperature, humidity, ambient light, and alarm sound patterns. Water sensing is supported when the water sensor adapter is used; Ubiquiti specifies that the water sensor adapter is available with the 3-pack.
Connectivity and Management
UP-Sense uses Bluetooth 5.0 and BLE for network connectivity. It can be adopted through a UniFi SuperLink Gateway or a supported Bluetooth-enabled UniFi Access Point in an indoor setting. The sensor is managed through UniFi Protect, with iOS and Android mobile applications available for supported deployments.
Key Features
- Three UniFi Protect All-In-One Sensors in one pack.
- Detects motion, door/window state, garage door activity, and environmental changes.
- Measures temperature, humidity, and ambient light while sensing supported alarm sound patterns.
- Supports water-leak detection using the included 3-pack water sensor adapter.
- Bluetooth 5.0/BLE connectivity with CR123A battery power and up to one year of battery life.
Applications
UP-Sense can be deployed throughout residential, commercial, and other indoor environments where multiple types of security and environmental events need to be monitored. Typical installations can use individual sensors for entry points, rooms, garages, equipment areas, or locations where temperature, humidity, light, sound, or water conditions require monitoring.
Installation and Compatibility
Each sensor can be installed using the supplied flat wall or corner mounting approach. The mounting system uses polycarbonate components with adhesive mounting surfaces. For network operation, the UP-Sense must connect to a supported SuperLink Gateway or Bluetooth-enabled UniFi Access Point and is managed through UniFi Protect.
DC Supplies Product Note
The UP-SENSE-3 is specifically the three-pack version of the UP-Sense. Ubiquiti's technical specifications identify the water sensor adapter as available with the 3-pack, making this SKU distinct from the single-sensor configuration when water detection is part of the planned installation.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UP-SENSE-3 |
| Product Type | Protect All-In-One Sensor, 3-Pack |
| Product Family | UniFi Protect |
| Pack Quantity | 3 sensors |
| Motion Detection Range | Up to 5 m (16 ft) |
| Entry Detection | Magnetic door/window open-close sensor |
| Garage Door Detection | Accelerometer for open-close detection |
| Temperature Sensor | Yes |
| Humidity Sensor | Yes |
| Ambient Light Sensor | Yes |
| Alarm Sound Sensor | Yes |
| Water Sensor | Yes, with water sensor adapter |
| Wireless Interface | Bluetooth 5.0, BLE |
| Connectivity | UniFi SuperLink or supported Bluetooth-enabled UniFi Access Point |
| Power Method | CR123A lithium battery |
| Antenna | 1 × 2.4 GHz |
| LEDs | Red / Blue / White |
| Button | Factory reset |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate with adhesive, flat wall and corner mounts |
| Additional Gear | Magnet; water sensor adapter available with 3-pack |
| Dimensions per Sensor | Ø24 × 83.5 mm (Ø0.9 × 3.3 in) |
| Weight per Sensor | 50.2 g (1.8 oz) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Software | UniFi Protect web application; UniFi Protect iOS and Android apps |
| Compliance | NDAA |
| Certifications | FCC, IC, CE, Anatel 08492-22-08356 |
FAQs
What is included with the UP-SENSE-3?
UP-SENSE-3 is the three-pack version of the UniFi Protect All-In-One Sensor. Ubiquiti's technical specifications also identify a water sensor adapter as available with the 3-pack.
What can the UP-Sense detect?
It can detect motion, door and window opening or closing, garage door movement, water conditions, and alarm sound patterns. It also measures temperature, humidity, and ambient light.
How does UP-Sense connect to UniFi Protect?
It uses Bluetooth 5.0/BLE and can connect through a UniFi SuperLink Gateway or a supported Bluetooth-enabled UniFi Access Point in an indoor setting.
Does UP-Sense require wired power?
No. Each sensor is powered by a CR123A lithium battery.
