Detailed Specifications

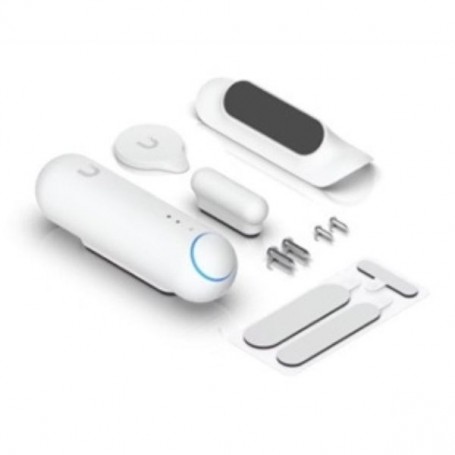

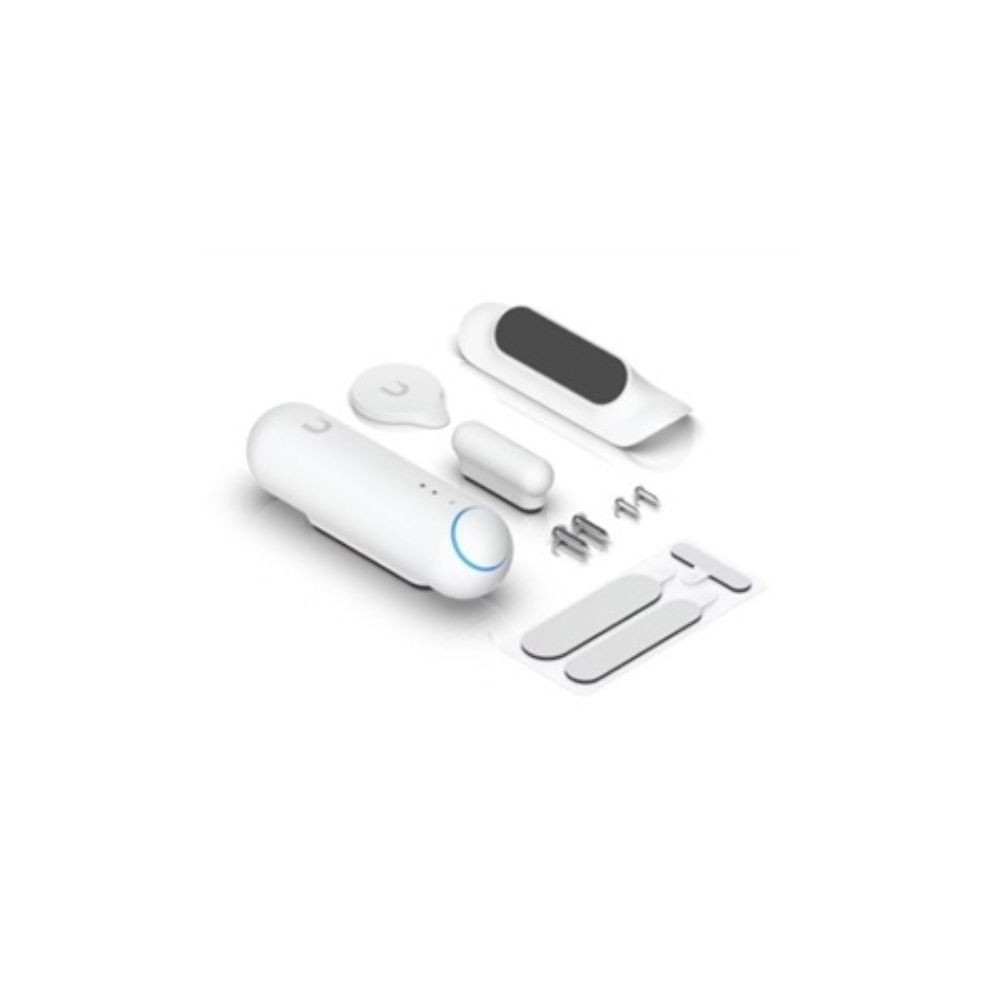

Ubiquiti UP-SENSE UniFi Protect All-In-One Sensor
Overview
The Ubiquiti UP-SENSE is a battery-powered multifunction sensor designed to work with UniFi Protect and Bluetooth-enabled UniFi access points. It combines motion detection, environmental sensing, door/window state sensing, and sound detection into one compact device to monitor physical activity and ambient conditions. The sensor communicates over Bluetooth Low Energy (BLE 5.0) to supported APs, making it suitable for indoor deployment in offices, entryways, server rooms, or common areas. Powered by a CR123A lithium battery, it can operate for up to one year, reducing maintenance. Events and sensor data integrate into the UniFi Protect interface for centralized alerts and environment monitoring.
Key Features
Motion detection up to 5 m range
Temperature and humidity sensing
Ambient light and alarm sound sensing
Magnetic door/window and accelerometer sensing
Technical Specifications
| Specification | Value |
|---|
| Brand | Ubiquiti |
| Part Number | UP-SENSE |
| Product Type | UniFi Protect All-In-One Smart Sensor |
| Networking Interface | Bluetooth 5.0, BLE |
| Wireless Frequency | 2.4 GHz |
| Max TX Power | 5 dBm |
| Power Method | Lithium battery CR123A |
| Max Power Consumption | 77 mW |
| Motion Detection Range | Up to 5 m (16 ft) |
| Environmental Sensors | Temperature, humidity, ambient light |
| Additional Sensors | Accelerometer, magnetic entry, alarm sound |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Operating Humidity | 10 % to 90 % non-condensing |
| Dimensions (Ø×H) | 24 mm × 83.5 mm |
| Weight | 50.2 g |
