Overview
The Ubiquiti UACC-Chime-PoE is a UniFi PoE Smart Chime designed to provide audible notifications for compatible UniFi doorbell and door access events. It uses Power over Ethernet for both network connectivity and power, providing a wired alternative to a WiFi-connected chime.
The chime incorporates an 80 dB speaker, a buzzer, multicolor status LEDs, and a factory-reset button. It can be installed using either the included in-wall or on-wall mounting options specified by Ubiquiti.
Connectivity and Power
The UACC-Chime-PoE has one 10/100 Mbps Ethernet port used for network connectivity and PoE power. The device supports a 44–57V DC input range and has a maximum power consumption of 3W.
Because the chime is powered through PoE, the installation requires a compatible PoE network connection. The Ethernet port provides the network path while the same connection supplies operating power to the chime.
Audio and Notifications
The integrated speaker provides sound output up to 80 dB for audible doorbell notifications. A separate buzzer is also provided as part of the device hardware. The chime is designed to work with supported UniFi doorbell and door access equipment through the UniFi Protect and UniFi Access ecosystems.
Installation

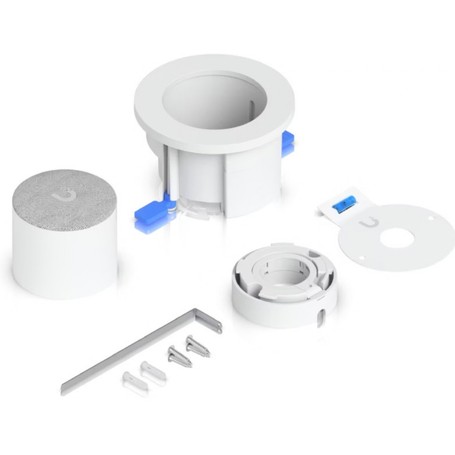

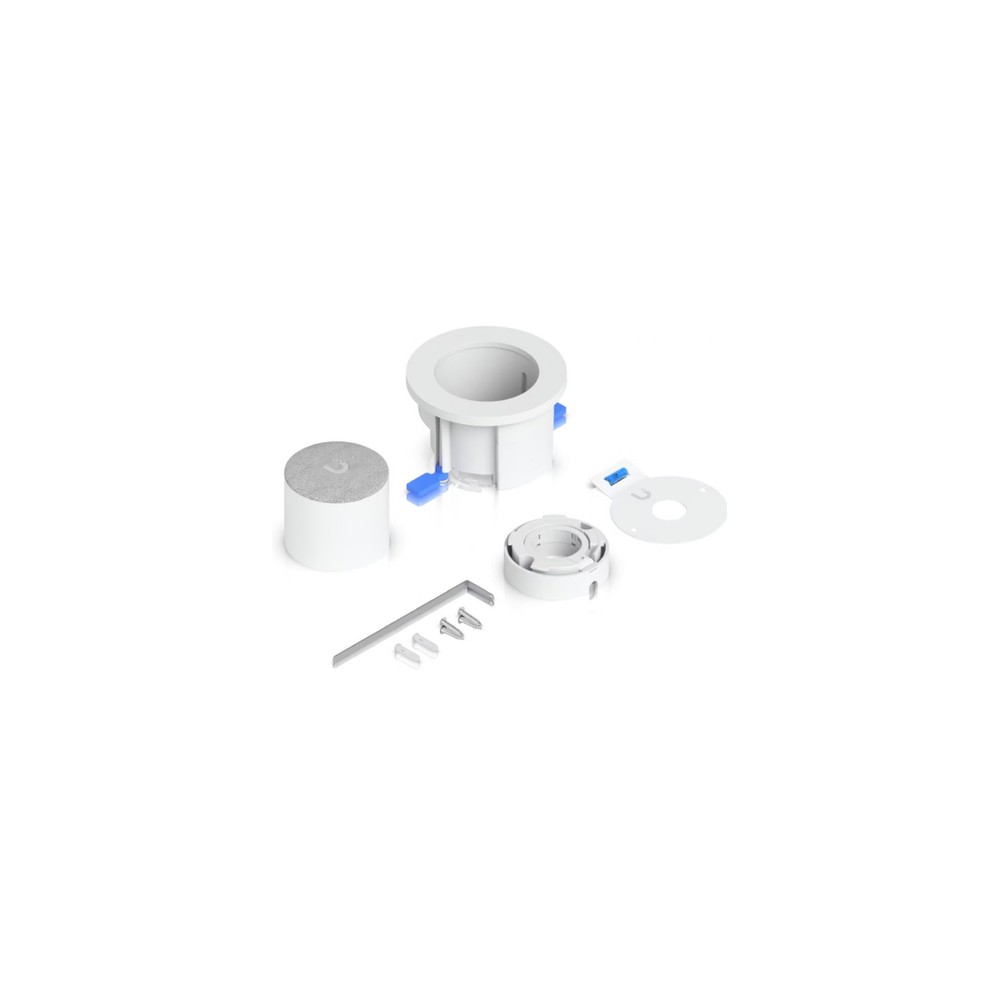

The UACC-Chime-PoE supports both in-wall and on-wall mounting. Ubiquiti specifies separate mounting hardware for each installation method, allowing the chime to be positioned according to the requirements of the installation.
The device measures 62 mm in diameter and 54 mm deep without the mounting hardware. The in-wall mount measures 89 mm in diameter and 63.1 mm deep, while the on-wall mount measures 62 mm in diameter and 20.2 mm deep.
Key Features
- PoE-powered smart chime for compatible UniFi doorbell and access systems
- Speaker output up to 80 dB for audible notifications
- 10/100 Mbps Ethernet port providing network connectivity and PoE power
- In-wall and on-wall mounting options
- UniFi Protect and UniFi Access application support
Applications
The UACC-Chime-PoE can be deployed as an audible notification device in UniFi physical-security installations. It is intended for locations where a wired Ethernet and PoE connection is available and where audible notification of supported doorbell or access events is required.
DC Supplies Product Note
The UACC-Chime-PoE has a maximum power consumption of only 3W, but it requires PoE rather than a conventional local DC power connection. When planning installation, verify that the network port or PoE equipment supplying the chime provides a compatible 44–57V DC PoE source.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-Chime-PoE |
| Product Type | PoE Smart Chime |
| Product Series | UniFi |
| Networking Interface | 1 x 10/100 MbE Ethernet |
| Speaker | Yes |
| Maximum Speaker Output | 80 dB |
| Buzzer | Yes |
| Power Method | PoE |
| Supported Voltage Range | 44–57V DC |
| Maximum Power Consumption | 3W |
| LEDs | R/G/B/W |
| Buttons | 1 x Factory Reset |
| Mounting | In-wall and on-wall |
| Device Dimensions | Ø62 x 54 mm (Ø2.5 x 2.1 in) |
| In-Wall Mount Dimensions | Ø89 x 63.1 mm (Ø3.5 x 2.5 in) |
| On-Wall Mount Dimensions | Ø62 x 20.2 mm (Ø2.5 x 0.8 in) |
| Device Weight | 158 g (5.6 oz) |
| In-Wall Mount Weight | 91 g (3.2 oz) |
| On-Wall Mount Weight | 28 g (1 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, zinc alloy |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Application Requirements | UniFi Protect and UniFi Access |
| Mobile App | UniFi Protect for iOS and Android |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
FAQs
What is the UACC-Chime-PoE used for?
The UACC-Chime-PoE is an audible notification device designed to pair with compatible UniFi doorbells or door access hubs and provide audible event notifications.
How is the UACC-Chime-PoE powered?
The chime is powered through PoE over its 10/100 Mbps Ethernet connection. Ubiquiti specifies a supported voltage range of 44–57V DC.
How loud is the UACC-Chime-PoE?
Ubiquiti specifies speaker output of up to 80 dB.
Can the chime be installed on a wall?
Yes. The UACC-Chime-PoE supports both in-wall and on-wall mounting.
What software platforms support the UACC-Chime-PoE?
Ubiquiti specifies UniFi Protect and UniFi Access as the application requirements, with UniFi Protect mobile applications available for iOS and Android.
Does the chime require WiFi?
No. The UACC-Chime-PoE uses a wired 10/100 Mbps Ethernet connection and PoE for network connectivity and power.
