Overview

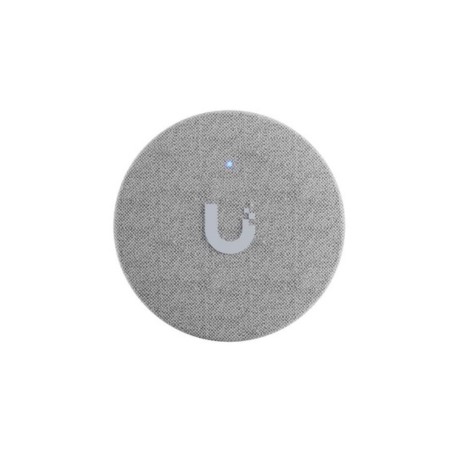

The Ubiquiti UP-Chime is a WiFi Smart Chime designed to pair with compatible UniFi doorbells and provide an audible notification inside a property. It connects wirelessly over WiFi and integrates with UniFi Protect for configuration and operation.
Wireless Chime Operation
The UP-Chime uses 802.11 b/g/n WiFi and can be adopted through UniFi Protect. Ubiquiti describes it as a plug-in chime that can be wirelessly connected using UniFi WiFi Auto-Link, with third-party WiFi configuration available during setup through the UniFi Protect mobile application.
Audio and Installation
The integrated speaker provides sound output of up to 80dB. The chime plugs directly into an AC outlet and includes a buzzer and five white status LEDs. Its polycarbonate and fabric enclosure measures 62 mm in diameter and 50.6 mm in depth without the power prong for the US version.
UniFi Protect Integration
The UP-Chime is managed through UniFi Protect and can be paired with compatible UniFi doorbells as a wireless doorbell chime. Ubiquiti also supports using the UP-Chime as an audible alert device for supported UniFi Protect sensor events.
Key Features
- Wireless UniFi Protect smart chime
- Up to 80dB speaker sound output
- 802.11 b/g/n WiFi connectivity
- Direct plug-in AC power
- UniFi Protect integration for doorbell and supported alert events
Applications
The UP-Chime is intended for indoor audible notification in UniFi Protect deployments. It can be used as a wireless chime for compatible UniFi doorbells or as an audible alert device for supported Protect events.
DC Supplies Product Note
The UP-Chime is an AC-powered WiFi chime and does not use PoE. Ubiquiti lists the separate UACC-Chime-PoE as its PoE Smart Chime, so the exact MPN should be matched when selecting between WiFi and PoE-powered chime models.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UP-Chime |
|---|
| Product Type | WiFi Smart Chime |
|---|
| Product Family | UniFi Protect |
|---|
| Networking Interface | WiFi 802.11 b/g/n |
|---|
| Power Method | AC |
|---|
| Supported Voltage Range | 100–240V AC, 50/60Hz |
|---|
| Maximum Power Consumption | 3.7W |
|---|
| Speaker | Yes |
|---|
| Speaker Output | Up to 80dB |
|---|
| Buzzer | Yes |
|---|
| WiFi Antenna Gain | 2 dBi |
|---|
| Dimensions | Ø62 × 50.6 mm, without prong |
|---|
| Weight | 127 g, US version |
|---|
| Enclosure Material | Polycarbonate, fabric |
|---|
| LEDs | 5 × white |
|---|
| Button | Factory reset |
|---|
| ESD/EMP Protection | Air ±16kV; contact ±8kV |
|---|
| Operating Temperature | 0 to 40°C |
|---|
| Operating Humidity | 10 to 90% noncondensing |
|---|
| Management Application | UniFi Protect |
|---|
| Web Application Requirement | UniFi Protect 2.0 or later |
|---|
| Mobile App Requirement | UniFi Protect iOS 1.6.2+ / Android 1.6.0+ |
|---|
| Certifications | CE, FCC, IC |
|---|
| NDAA Compliant | Yes |
|---|
FAQs
What is the UP-Chime used for?
The UP-Chime provides an audible notification device for compatible UniFi doorbells and supported UniFi Protect events.
How does the UP-Chime connect to the network?
It connects wirelessly using WiFi 802.11 b/g/n and is configured through UniFi Protect.
How loud is the UP-Chime?
Ubiquiti specifies speaker sound output of up to 80dB.
Does the UP-Chime use PoE?
No. The UP-Chime uses direct AC power. Ubiquiti offers a separate PoE Smart Chime model for PoE-powered installations.
Can the UP-Chime work with UniFi Protect sensors?
Yes. Ubiquiti supports linking the UP-Chime with supported Protect sensor events through Alarm Manager.
