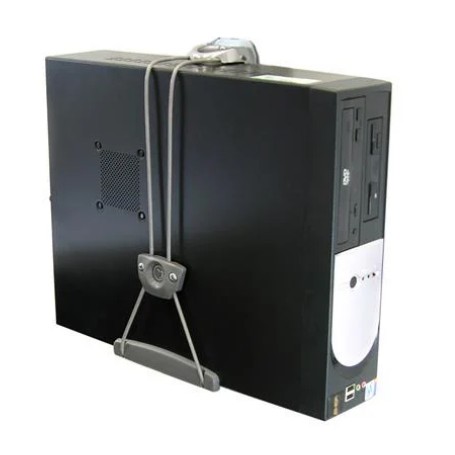

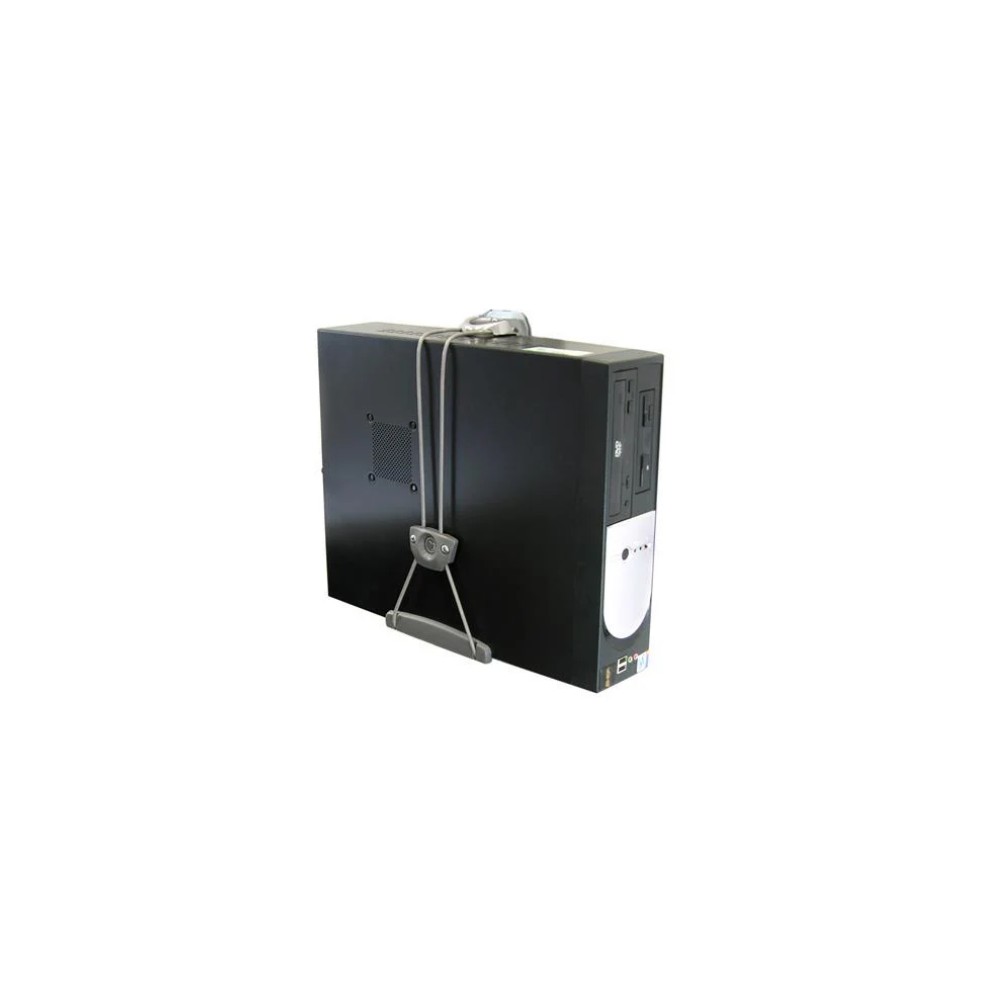

Ergotron 80-105-064 – Universal CPU Holder
Overview
The Ergotron 80-105-064 Universal CPU Holder is an adjustable computer mounting solution designed to secure a wide range of desktop computer systems. Its open design promotes airflow around the computer while security fasteners help deter unauthorized removal.
Technical Information
The holder supports computers weighing up to 50 lb (22.7 kg). It accommodates CPU dimensions from 9.4 × 2.6 inches up to 18 × 8.5 inches. The adjustable design allows the holder to accommodate different computer sizes while maintaining a secure fit.
Compatibility
The 80-105-064 can be mounted directly to a wall or underneath a desk. It can also be installed on compatible Ergotron Wall Track systems, Command Posts, Neo-Flex Mobile MediaCenter carts, StyleView carts, Neo-Flex Laptop Carts and Neo-Flex LCD Computer Carts. Some mounting configurations require an additional interface bracket.
Key Features
- Supports computers weighing up to 50 lb (22.7 kg).
- Adjusts for CPU dimensions from 9.4 × 2.6 inches to 18 × 8.5 inches.
- Open-frame construction helps maintain airflow around the computer.
- Supports wall, under-desk, cart, Wall Track and Command Post mounting configurations.
- Includes a cinching cable, back bracket, edge cable spacers and mounting hardware.
Applications
The Universal CPU Holder is suited to office workstations, healthcare carts, mobile computing systems, control-room workstations and other installations where a desktop computer needs to be securely mounted off the floor or work surface.
DC Supplies Product Note
Verify the computer's actual dimensions and weight before installation. The maximum supported computer weight is 50 lb, while the supported dimensional range is 9.4–18 inches in height and 2.6–8.5 inches in depth. Certain mounting locations require separate Ergotron interface brackets.
Specifications
| Brand | Ergotron |
|---|
| MPN | 80-105-064 |
|---|
| Product Type | Universal CPU Holder |
|---|
| Maximum Load Capacity | 50 lb (22.7 kg) |
|---|
| Minimum CPU Dimensions | 9.4 × 2.6 in (239 × 66 mm) |
|---|
| Maximum CPU Dimensions | 18 × 8.5 in (457 × 216 mm) |
|---|
| Design | Open, size-adjustable CPU holder |
|---|
| Mounting Options | Wall, under desk, Wall Track, Command Post, Neo-Flex carts and StyleView carts |
|---|
| Wall Track Interface | 97-091 required |
|---|
| Command Post Interface | 60-366 required |
|---|
| Included | Cable with cinching bracket, back bracket, two edge cable spacers and mounting hardware |
|---|
| Product Weight | 2.2 lb (1.0 kg) |
|---|
| Shipping Dimensions | 7 × 5 × 3.75 in (178 × 127 × 95 mm) |
|---|
| Shipping Weight | 2.6 lb (1.2 kg) |
|---|
| Warranty | 5 years |
|---|
FAQs
What is the Ergotron 80-105-064?
It is a Universal CPU Holder designed to securely mount desktop computers to walls, desks, carts and compatible Ergotron mounting systems.
What is the maximum CPU weight?
The holder supports computers weighing up to 50 lb (22.7 kg).
What CPU dimensions are supported?
The minimum supported dimensions are 9.4 × 2.6 inches, while the maximum supported dimensions are 18 × 8.5 inches.
Where can the CPU holder be mounted?
It can be mounted directly to a wall, underneath a desk, to compatible Ergotron Wall Track and Command Post systems, and on selected Ergotron carts.
Does Wall Track mounting require an additional bracket?
Yes. Ergotron specifies the 97-091 interface bracket for Wall Track mounting.
Does Command Post mounting require an additional bracket?
Yes. The 60-366 interface bracket is specified for Command Post mounting.
What is included with the holder?
The package includes a cable with cinching bracket, back bracket, two edge cable spacers and attachment hardware for supported mounting configurations.
What is the warranty?
Ergotron specifies a five-year warranty for the 80-105-064 Universal CPU Holder.
